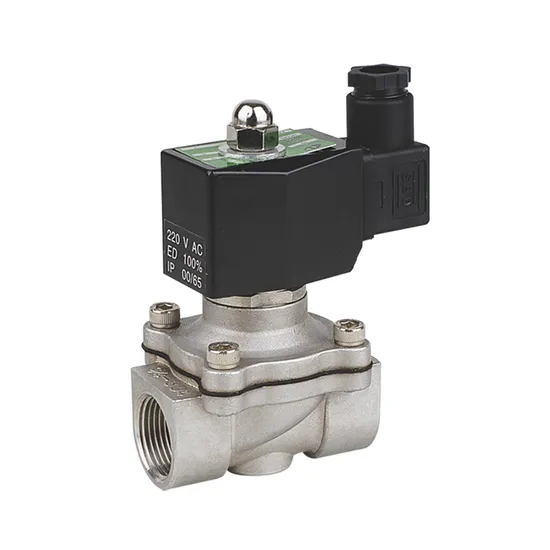

2wb-20 3/4inch Stainless Steel Electric Water Fluid Solenoid Valve
| US$14.00-20.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
2WB-20
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Stainless Steel
Pressure
Ordinary Pressure
Valve Structure
Direct Action Diaphragm Structure
Power Supply
AC or DC
Usage
Safety
Application
Industrial Usage
Port Size
3/4′′
Acting Type
Diaphragm Type
Working Pressure
0~1.0MPa
Ambient Temperature
-5~60ºC
Max.Pressure
10bar
Valve Type
AC380V, 220V, 110V, 36V, 24V ; DC220V, 24V, 12V
Installation
as Required
Thread Type
NPT, BSPT, Bsp
Certificate
Ce, ISO
Transport Package
Plastic Bag + Inner Box + Carton Box
Specification
CE/ ISO/ROHS
Trademark
KLQD
Origin
Ningbo, China
HS Code
8481804090
Production Capacity
10000sets/Month
Product Description
2WB-20 3/4inch Stainless Steel Electric Water Fluid Solenoid Valve| Model | Port Size(mm) | Orifice(mm) | CV Value | Pressure Range(MPa) | AC(VA) | DC(W) |
| 2WB-06 | ZG1/8'' | 3 | 0.25 | 0~1.0MPa | 15 | 12 |
| 2WB-08 | ZG1/4'' | 3 | ||||
| 2WB-10 | ZG3/8'' | 4 | 0.6 | 18 | 16 | |
| 2WB-10 | ZG3/8'' | 16 | 4.8 | |||
| 2WB-15 | ZG1/2'' | 16 | ||||
| 2WB-20 | ZG3/4'' | 20 | ||||
| 2WB-25 | ZG1'' | 25 | 12 | |||
| 2WB-35 | ZG1-1/4'' | 35 | 24 | 28 | 24 | |
| 2WB-40 | ZG1-1/2'' | 40 | 29 | |||
| 2WB-50 | ZG2'' | 50 | 48 |
Packing & Delivery
Payment
Application
Our Company
NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
