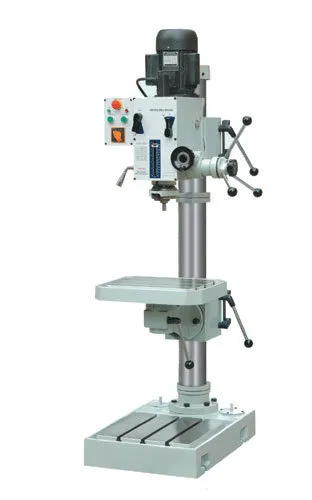

Precision Benchtop Gear Head Drilling Milling Machine for Sale Kyz40/Kyz45
| Negotiable | 3 Sets (MOQ) |
Basic Info.
Model NO.
KYZ40/KYZ45
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
Red
Drilling Capacity
40mm/45mm
Spindle Travel
130mm
Spindle Taper
M. T. 4 or R8
Available Size of Table
380*306mm
Max. Travel of Headstock
250mm
Warranty
1 Year
Table Leaned
45degree
Overall Height
1680mm
Packing Size
800X650X1830mm
Transport Package
Wooden Case
Specification
CE
Trademark
KY
Origin
China
Production Capacity
200 Piece/Month
Product Description
| MODEL | KYZ40 | KYZ45 |
Drilling capacity | 40mm | 45mm |
Distance from spindle nose to table | 725mm | 725mm |
Min. Distance from spindle axis to column | 283mm | 283mm |
Distance from spindle nose to base | 1125mm | 1125mm |
Spindle travel | 130mm | 130mm |
Spindle taper | M. T. 4 or R8 | M. T. 4 or R8 |
Step of spindle | 6 | 6 |
Range of spindle speed 50Hz | 80-1250r. P. M. | 80-1250r. P. M. |
60Hz | 100-1500r. P. M. | 100-1500r. P. M. |
Swivel angle of table horizontally | 360degree | 360degree |
Swivel angle of headstock (horizontally) | 360degree | 360degree |
(perpendicularly) | 90degree | 90degree |
Table leaned | 45degree | 45degree |
Available size of table | 380*306mm | 380*306mm |
Available size on base | 418*415mm | 418*415mm |
Max. Travel of headstock | 250mm | 250mm |
Max. Travel of table bracket | 600mm | 600mm |
Motor Power | 1.1Kw(1.5Hp) | 1.5Kw(2Hp) |
| As customer's requirement | ||
Overall height | 1680mm | 1680mm |
Net weight | 430kg | 435kg |
Gross weight | 480kg | 485kg |
Packing size | 800x650x1830mm | 800x650x1830mm |
Warehouse to film
Packing & Delivery
