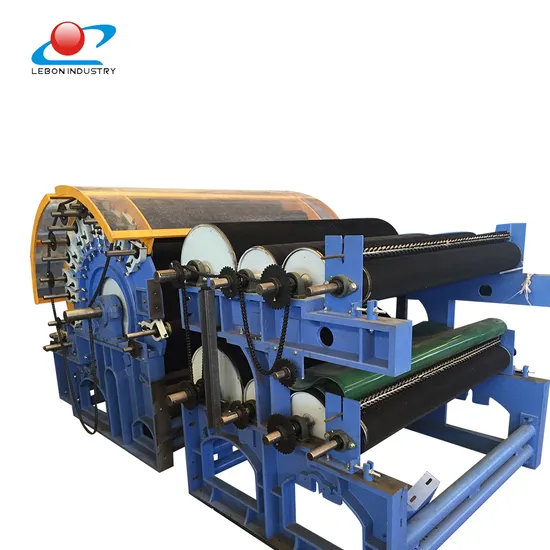

Non Woven Single Cylinder Double Doffer Carding Machine of Needle Punching Machine Line
| US$13,000.00-25,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LBSL-01
Automatic Grade
Automatic
Certification
CE
Customized
Customized
Condition
New
After-sales Service
Engineers for Installation
Suitable
Rotor Spinning Ring Spinning OE Spinning
Control
PLC Touch Screen or Button
Type
Textile Machinery Carding Machinery
Speed
High Speed, Middle Speed Customerized
Model
A186g, Fa203
Fuction
Spinning Line
for
Spinning Machine
Yarn Count
20-60s
Spinning
OE Spinning, Ring Spinning
Name
High Speed Cotton Carding Machine
Brand
Lebon Industry
Capacity
20-250kg/H
Raw Material
Cotton, Bleached Cotton, Cotton From Farmer
Popular Country
Pakistan, India, Vietnam, Turkey
Voltage
380V or by Order
Transport Package
Export Standard
Specification
1.5-3meter customerized
Trademark
Lebon
Origin
China
HS Code
8445111300
Production Capacity
100-1000kg/H Customerized
Packaging & Delivery
Package Size
200.00cm * 150.00cm * 146.00cm
Package Gross Weight
180.000kg
Product Description
High Speed Nonwoven Fiber Carding Machine 2500mm For PolyesterApplication:
Apply to the local cotton and chemical fiber spinning pure or blended with cotton roll feeding.
Technical Parameter:
| Scope of application | Apply to the local cotton and chemical fiber spinning pure or blended cotton roll feeding | |
| Quantitative production | 1.0 ~ 2.0 g / m | |
| Production | 20-30kg / h | |
| Working width | 1000 mm | |
| Additional pieces of comb | Roller carding a board | |
| Cover fixed after 2 | ||
| Cover fixed | ||
| Drawing a multiple of total | 67 ~ 120 | |
| Spurs roll diameter of the work | Φ250 mm | |
| Barbed roller speed of the work | Cotton | 1070 to / |
| Fiber | 980 / | |
| Work of the cylinder diameter | Φ1289 mm | |
| Cylinder speed of the work | Cotton | 360 / |
| Fiber | 330 / | |
| Work of Adolf diameter | Φ706 mm | |
| Speed of the work of Adolf | 21.3 ~ 38.2 to / | |
| Cover the number can (cover work / cover of the total) | 40/106 | |
| flat rate of | Cotton | 177 214 266 mm / sub |
| Fiber | 81 98 122 mm / sub | |
| Sliver application of the tube (diameter × height) | Φ600 × 900 mm φ600 × 1100 mm | |
| Dust | Cylinder triangle-Astoria, gill cover roller cover, curtain delivery vehicles belly 3 miscellaneous cleaning | |
| Suction air flow in a row | 1300 m 3 / h | |
| Wind | -500 ~ -600 Pa | |
| Total power installed capacity | 8.4 kW | |
| Adolf drive motor | 1.1 kW (frequency, a significant number of users may choose to use) | |
| Area (length × width) | 3809 × 2092 mm | |
| Weight of the whole machine | About 4500 kg | |
