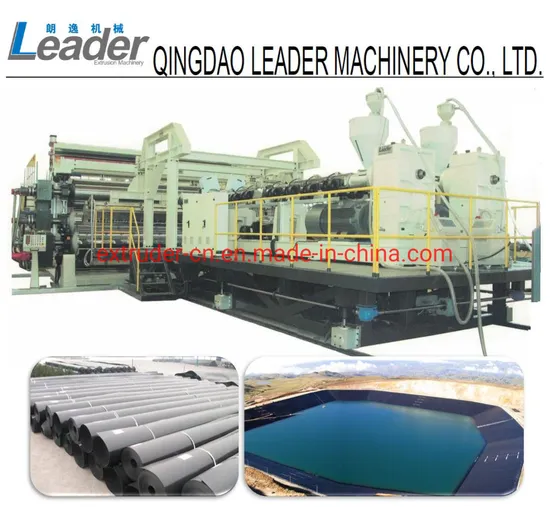

HDPE PE Geomembrane Extrusion Geomembrane Liner Sheet Extruder Machine (8000mm width)

Product Description

Hdpe/pe geomembrane extrusion machine(1000-8000mm width ) HDPE geomembrane extruder machine HDPE
geomembrane liner sheet making machine
PE waterproof sheet is also known as polyethylene polypropylene composite sheets. It is a new type of composite waterproof
sheet which is extruded and laminated in one process by sheet extrusion line added with anti-aging agent, stabilizer, binder,
and together with high strength non-woven fabric etc.HDPE geomembrane, also called extra-width waterproof sheets, widely
used for
1) waterproofing usage in industrial & civil buildings, including the green roof, flat roof, and the sloping roof.
2) Underground waterproof: reservoir, dam, pool, swimming pool,
3) Waterproof usage in tunnel drainage, grain depot, artificial engineering, landfill, artificial lake, foundation moisture-proof,

Material	PE	PE
Sheet thickness	0.5-3mm	0.5-3mm
Sheet width	1000-4000mm	5000-8000mm

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (120/33)			1 set
3	Hydraulic exchanging unit +melting gear pump			1 set
4	T-type /hanger type die head (JC-Times brand)			1 set
5	Three Roller Calendars (alloy steel material )			1 set
6	Rollers thermoforming machine			1 set
7	Cooling frame and edge cutting unit			1 set
8	Haul off machine			1 set
9	Plastic cutting machine-guillotine			1 set
10	Twin position sheet winder			1 set
11	Stacker			1 set
12	Electrical cabinet (ABB,Omron, Siemens etc)
13	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set
PART 3 SHEET SPECIFICATIONS
1	Sheet width	2000-4000-8000mm
2	Sheet thickness	0.5-3mm
3	Type	single layer/multi layer sheets
4	Raw material	PE recycle material
PART 4 SHEET APPLICATIONS
1	widely used in construction, such as highway, railway, bridge, dyke, etc.
PART 5 PAYMENT, DELIVERY AND AFTER SALE SERVICES
1	Payment terms	40% for prepayment by T/T, 60% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	100 days after receipt of prepayment
3	Packing method	Wooden cases/pallets with stretching films
4	Guaranteed time	18 months for mechanical parts, 12 months for electrical parts
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

MORE MACHINE PICTURES OF THIS LINE
PART 5 COMPANY INFORMATION AND OUR TEAM:
OUR SERVICE TEAM:
PART 6 OUR RELIABLE SUPPLIERS:
PART 7 COMPANY CERTIFICATIONS:
PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.
PART 8 COMPANY OVERSEA SHOWS AND CONTACT DETAILS:
PART 10 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :
1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
