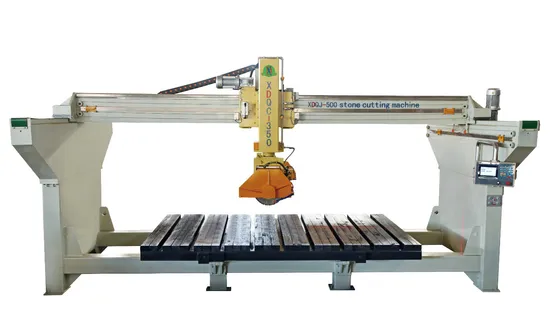

XDQJ 500A (I) Whole Bridge Automatic Cutting Machine

Product Description

The infrared Bridge cutting machine is integrated structure, no need to build concrete foundation. this machine is mainly used for cutting and processing marble slabs, granite slabs, artificial stone slabs, quartz stone slabs. It has the following advantages:small volume,convenient to transport and install. meanwhile this structure can save the time and the cost of building the cement foundation. Especially suitable for user in small place or always move work place
The bridge cutting machine consists of crossbeam,cutter head, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system.
Feature: 1,crossbeam is made of cast iron, it will be more durable and stable.
2,Cutter head can turn 90°,blade is enable to tilt 0°-45°for chamfering.
3,Hydraulic system is used in tilting the worktable tilting. Worktable can tilt 0°-83°
4,AC contactor ,inverter,breaker,touch screen and PLC adopt Schneider brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters
5,Equipped with infrared ray to exactly locate slabs
6,The forward and backward movement of crossbeam is equipped with magnetic grid ruler to ensure high processing precision.
7,This machine has an automatic lubrication system. Can set time to oil for the blade lifting parts.

Working principle:
The crossbeam move forward or backward by asynchronous motor, it is controlled by frequency converter(its stroke:2.3meters). The blade rotation is directly driven by main motor. The cutter move left or right by asynchronous motor with frequency converter for adjusting feed speed(its stroke:3.5meters) Worktable can tilt 0°-83°by hydraulic system transmission.

Technical parameters:

Parameters	XDQJ500A(II)
Blade Diameter	Φ350-Φ500
Worktable Size	3200×2000mm
Max Processing Size	3200×2000mm
Maximum Travel Of The Cutter Lifting	300mm
Cutter Rotating Angle	90°
Cutter Tilt Angle(adjust by hand)	0-45°
Worktable Tile Angle	0-83°
Cutting Thickness	0-120mm
Main Motor Power	11KW
Water Consumption	4m³/hour
Overall Dimension	5700×3200×2600mm
Total Power	15.8KW
Total Weight	5T

Schematic Drawing:
Electric Cabinet& Operation Panel Photos :
Exhibition: FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment
2) Delivery time:
The bridge cutting machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
