BM55/12 FINCM CNC Milling And Drilling Machine For H-Beams

BM55/12 FINCM CNC Milling And Drilling Machine For H-Beams

US$103,000.00
1 Set
US$93,000.00
2+ Sets

Basic Info.

Model NO.
BM55/12
Type
Open-Sided Milling Machine
Object
Beam
Structure
Disc Milling
Milling Cutter Type
Cylindrical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Longitudinal slide quantity
2
Longitudinal stroke
300mm
Drive motor power
2*0.37kW
Axial adjustment of conical milling cutt
80mm
Spindle motor power
4*15KW
Milling column quantity
4
Vertical movement stroke of power head
1300mm
Vertical movement drive motor
4*2.2kW
Clamp moving range
100~600mm
Maximum output pressure of gas-liquid pr
10.8MPa
Milling deep retainingiron quantity
4
Length of roller conveyor outside the ma
2*5000mm
Overall dimensions of the host (L*W*H)
About 15.0×4.0×2.8 m
Machine weight
24t
Compressed air pressure
0.5MPa
Transport Package
Container
Specification
40GP
Trademark
FINCM
Origin
Shandong
HS Code
84592100
Production Capacity
120 Sets Per Year

Product Description

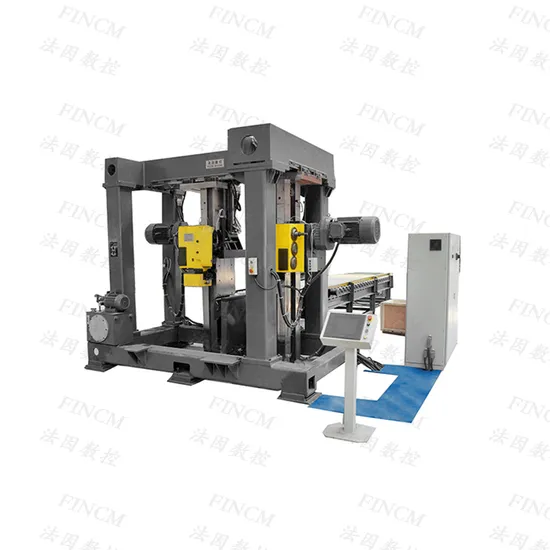

BM55/12 FINCM Haevy Duty Steel Structure Bridge Type CNC Beam Metal Vertical Milling Machine 220-1250mm

Product Description
This machine tool is mainly used for milling grooves, milling end faces and web milling arc grooves of H-shaped steel end wing plates in steel structure industries such as construction, bridges, and municipal administration.
Equipment advantages:
1. The CNC longitudinal sliding table is used to process the locking of the inclined H-shaped steel at one time.
2. The machine tool has an automatic setting function, which can automatically change the amount of milling, which greatly improves productivity.
3. It adopts frequency conversion roller table to feed, which can be stably conveyed.
4. The scale of the conical milling cutter can be adjusted according to the cutting depth of the milling head, and the groove amount can be aligned to obtain the required groove size.
5. Cemented carbide indexable milling cutters are used for the processing of grooves, milling end faces and arc grooves.
6. The use of programmable controllers, touch screens and other electrical components, and the mechanical transmission uses high-precision mechanical components such as ball screws and linear rolling guides to improve positioning accuracy and extend the service life of the machine tool.
7. The feeding channel, main machine, and discharging channel form an automatic line, which can automatically and continuously mill the H-shaped steel of the same model.

Product Parameters
Longitudinal slide Quantity 2
longitudinal stroke 300mm
Drive motor power 2*0.37kw
Lateral slide Quantity 2
Longitudinal stroke 1050mm
Drive motor power 2*0.37kw
Milling power head Quantity 4
Milling cutter Indexable carbide blade
Axial adjustment of conical milling cutter 80mm
Spindle motor power 4*15kw
Milling column Quantity 4
Vertical travel of power head 1300mm
Vertical movement drice motor 4*2.2kw
Clamp movement range 100-600
Clamp mode Hydraulic clamping
MIlling deep retaining iron Quantity 4
Working schedule 0-40mm
Drive motor 4*0.06kw
Convering roller table Length of outside conveyor roller table 2*5000mm
Power of external conveying motor 2*1.1kw
Power of motor in machine 4*0.55kw
Overall dimension of main machine About 15.0*4.0*2.8m
Machine weighe about 24 tons

Main Outsourcing Parts Catalog:
Number Name Brand Country
1 Linear slide HIWIN/CSK Taiwan, China
2 Pneumatic solenoid valve Airtac Taiwan, China
3 Filter regulator Airtac Taiwan, China
4 touch screen Screen pass Taiwan, China
5 programmable control Mitsubishi Japan

Note: The above supporting manufacturers are all designated suppliers of our company. In case of failure to supply under special circumstances, products of the same level will be used instead, but the quality standards shall not be lower than the products supplied by the above suppliers.
Other Products
Company Profile




Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
