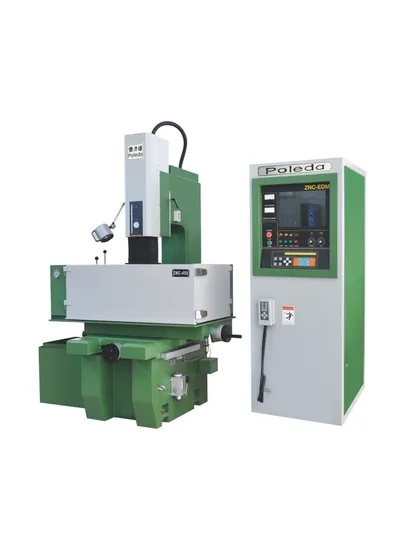

EDM Sinker Die Sinking Machine Znc450 High Accuracy with Voltage 50Hz 380V

Product Description

The Electrical Discharge Machining (EDM) machine represents a pinnacle of mechanical processing technology. This extraordinary equipment is predominantly employed for intricate electrical discharge machining tasks, making it indispensable in the creation of meticulous metal molds and advanced mechanical apparatus. EDM stands out as a unique processing technique, whereby the electrical corrosion generated by pulsed discharges between electrodes, submerged in a working fluid, precisely erodes conductive materials. This immaculate process, also known as discharge machining or electrical corrosion machining, is frequently referred to by its English acronym, EDM.
Product Description
Product Parameters
Principle of Spark Machine:
In the realm of Electrical Discharge Machining (EDM), the tool electrode and the workpiece are strategically connected to opposite poles of the pulse power supply. Immersed in working fluid or with fluid filled into the discharge gap, when the gap between these two electrodes achieves a specific distance, the applied pulse voltage overcomes the working fluid's resistance, thereby initiating a spark discharge.
In the brief moment of discharge, a substantial amount of heat energy is concentrated within the micro-channel, reaching staggering temperatures exceeding 10,000 degrees Celsius, accompanied by rapid pressure changes. This intense energy causes localized melting, vaporization, and expulsion of the metal material into the working fluid. The expelled material rapidly condenses into solid metal particles which are then carried away by the working liquid, leaving a minuscule pitting mark on the workpiece surface. The process temporarily pauses as the working fluid restores its insulating state between the electrodes.
Subsequently, the next pulse voltage initiates a discharge at another proximate point between the electrodes, repetitively generating spark discharges. Each pulse discharge erodes an infinitesimal amount of metal, but given the high frequency of thousands of pulses per second, significant cumulative metal removal is achieved, thus ensuring a certain level of productivity.
Maintaining a consistent discharge gap between the tool electrode and workpiece, the erosion of workpiece metal proceeds as the tool electrode advances towards it. Ultimately, the machined shape mirrors that of the tool electrode. By altering the tool electrode's shape and its relative motion to the workpiece, complex profiles are precisely crafted. Materials with high electrical conductivity, melting points, and ease of processing, such as copper, graphite, copper-tungsten alloy, and molybdenum, are typically used for tool electrodes. While the tool electrode experiences minimal wear compared to the workpiece metal corrosion, the loss is often negligible.
Serving as the discharge medium, the working liquid is essential for cooling and chip removal during the machining process. Preferred working liquids include low-viscosity, high flash point, and stable performance mediums such as kerosene, deionized water, and emulsion. EDM machines operate on self-excited discharge principles: the spark discharge between the electrodes begins with a high voltage, breaking down the medium as the electrodes near each other, initiating a spark. The discharge results in a sharp drop in resistance and voltage. The spark channel must extinguish promptly (within 10-7 to 10-3 seconds) to preserve the 'cold pole' characteristic, ensuring that the channel energy affects only a minuscule area, thereby causing localized erosion of the electrode. This erosion-based material removal technique is termed EDM.

	Product name	Sparking machine
	Product model	ZNC-450
	Product technical parameters
		1.Table size	700*400MM
		2(X)Left and right travel (X)	450MM
		3(Y)Forward and backward travel (Y)	350MM
		4Spindle travel (Z-axis)	200MM
		5Head travel	230MM
		6Distance from electrode head to table surface	450MM
		7Maximum electrode load	120KGS
		8Maximum working load	1200KGS
		9Machine weight (approx)	2200KGS
		10Volume of filter box	400L
		11Net weight of filter box	150KGS
		12Appearance dimensions (L * W * H)	1470*1150*1980MM
	disposition	Accessories name and specification	quantity
	Standard parts for machine tools	1,Hand oil pump	1
		2,Quartz working lamp	1
		3,15''CRTPC15 "CRT display and PC industrial computer	1
		4Patented electrode head	1
		5Electric box remote control	1
		6Operating instruction	1
		7Three axis electronic ruler	1
		8Detail disk	1
		9Control box	1
		10servomotor	1
		11Machine level adjustment pad	1
		12Tools and toolboxes	1
