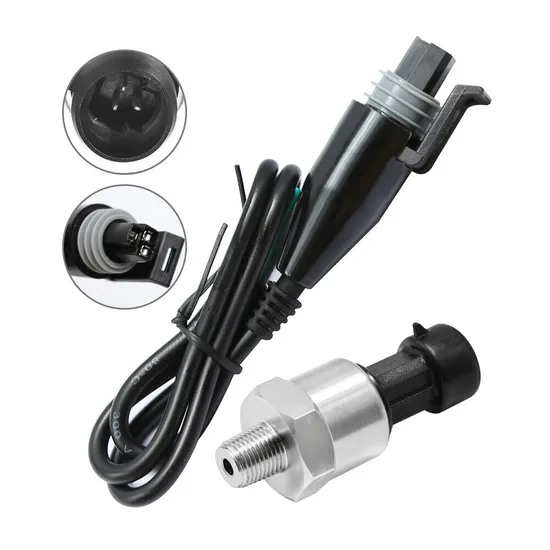

1/8′′ NPT 5V Pressure Transducer Sender Sensor for Oil Fuel Air Gas

Product Description

Pressure Transducer 100PSI 1/8NPT Pneumatic pressure sensor for Air Compressor Truck Fuel Oil Brake Water
Product Description
High quality 0 - 150 PSI (0 - 10 BAR) REVELTRONICS pressure sensor with linear voltage output. Commonly used as oil pressure sensor or fuel pressure sensor. Working with automotive gauges and data-loggers (as a pressure sender / transducer) such as UTCOMP & UTCOMP-PRO, AEM EMS, GReddy e-MANAGE, Motec, Stack, ACR systems, HRC etc. Waterproof connector is included with sensor.
• Good stability, high performance price ratio, strong anti-interference frequency converter;• Compact structure, light weight, easy installation and vibration resistance;• Ceramic core, suitable for most medium;• Maximum use temperature: 85 degrees;• The shell is 304 stainless steel.,special used for no corrosive gas,liquid pressure measurement.• Waterproof grade: IP65;
Product Specifications
Technical Parameter:1. Connector: 1/8,1/42. Working Voltage: 12-24VDC3. Voltage Output: 0.5-4.5v4. Working Pressure Range:200PSI / Customized5. Max Pressure:3.0MPa6. Compressive failure:4.0MPa7. Load Impedence:<500Ω8. Working Temperature Range:-20~85ºC9. Storage Temperature Range::-20~85ºC10. Overall Accuracy:+1.0%FS11. Insulating Strengh:>50MΩ/500V12. Seal Grade:IP6513. Cycle Life:1,000,000
Output:

U(V)	P(psi)	P(bar)
0.5	0.00	0.00
1.0	18.75	1.29
1.5	37.50	2.59
2.0	56.25	3.88
2.5	75	5.17
3.0	93.75	6.46
3.5	112.5	7.76
4	131.25	9.05
4.5	150.00	10.34
