1325 1530 2030 2130 Atc CNC Router Machine Atc CNC Machine for Woodworking

Product Description

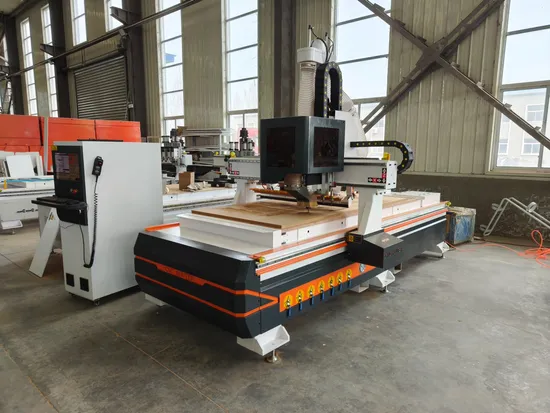

ATC CNC Router Woodworking Machine for Furniture Industry

Advantages
1. 12mm industrial class Welding Steel Frame. You can use our Uscam cnc router more than 10 years.
2. Vacuum table and pump. Saving time, improving efficiency.
3. High power spindles have constant power, low noises and super strong cutting force, which improve
workingefficiency greatly.
4. Famous brand drivers and motors have characteristics such as powerful strength, fast processing speed.
5. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
6. Perfect oil lubrication system makes maintenance much easier. And electric limit switch on all axis,
make sure machine running well.
7. Independent control box make control easier.
Technical Parameters

Description	Parameter :USM1530C
X,Y,Z working area	1500x3000x200mm
X,Y,Z Traveling positioning accuracy	±0.01
X,Y,Z Repositioning positioning accuracy	±0.01mm
Lathe bed frame	Steel square tubes,Lathe bed steel pipe thickness 8mm
X,Y Structure	Rack drive and Taiwan HIWIN guide
Z Structure	Taiwan TBI Ball screw and Taiwan HIWIN guide
Drive motors	Japan Yaskawa Servo motors
Table surface	vacuum table and vacuum pump
Max power comsumption	(without spindle)2.0KW
Max rapid travel rate	100000mm/min
Max working speed	80000mm/min
Spindle power (Linear or Disc)	Automatic tool change spindle Italy HSD 9kw
Spindle speed	0-24000RPM
Spindle inverter	Taiwan Delta inverter
Working voltage	AC380V/50/60Hz,3PH
Command language	G Code
Operatiing system	Taiwan Syntec system
Collet	ISO30 or HSK F63 (3.175/4/6/12.7mm. Optional )
X,Y Resolution	<0.02mm
Running environment temperature	0-45 centigrade
Relative humidity	30%-75%
G.W.	Approx. 2000kg
Delivery time and payment	7-15 working days days after get 30% payment by T/T

#All the working area and specifications can be customized according to your requests.
Machine parts
Package and Shipping Details
1. Free fumigation PLYWOOD CASES
2. We have 3 layers package. For the outside, we adopt free fumigation wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking.
For the inside layer, the machine is covered by thickening plastic bag for waterproof.
3. For this cnc router machine, it is suitable to transport by sea, by land or by rail.
FAQ
Q1: How to get the most suitable model with competitive price?
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ? Do you mainly engrave or cut? If cut,What is your Max.cutting thickness?
Q2: How about the delivery time after ordered?
The delivery time is about one week after ordered it.
Q3: Will the package damaged during transportation?
Our package is considerate all the damage factors and make it to be safe, and our shipping agent have
full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry,
you will receive the parcel in good condition.
Our service
# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
