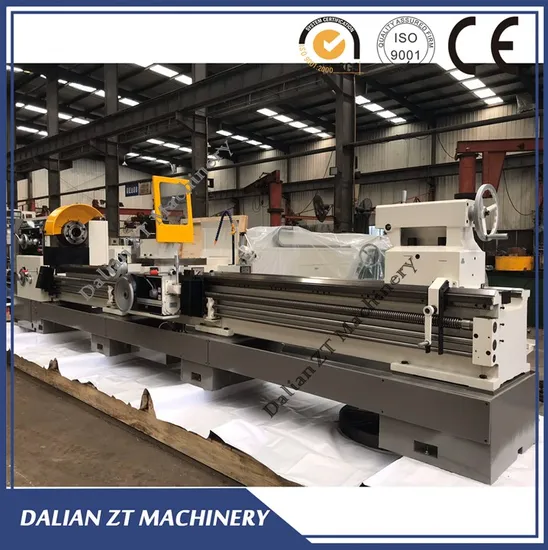

Torno Large Heavy-duty Horizontal LGap-bed Lathe, Big Spindle Bore, CE 2000mm, 3000mm,4000mm,6000mm length
| US$18,000.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CW61100x2000
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Position
Power Source
Manual
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Plinth
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
1030mm
Turning Length
2000mm
Spindle Bore
105/130mm
Tailstock quill diameter
120mm
Tailstock quill travel
270mm
Tailstock quill taper
MT6
Bed width
610mm
Module thread
0.25-60/46mm/kinds
Main motor power
11kW
Transport Package
Wooden Case
Specification
swing 1000-1600mm
Trademark
ZT
Origin
China
HS Code
84581900
Production Capacity
1000 Sets/Year
Product Description
APPLICATIONS & FEATURES:This series of machine tool is widely applied to the cutting operations of various spare parts, including
end face, conical face, excircle, internal hole, metric thread, English standard thread, module thread,
diametrical pitch thread, etc. In addition, it is applicable to the technologies such as drilling,
hole-reaming, jacketing, boring, groove-cutting, etc. Hard alloy tools may be utilized to cut the
screw threads and machine various ferrous metals and nonferrous metals. The size precision of spare
parts machined via this machine tool can be IT8 and the surface coarseness may be 6.3μm.
| Model | Unit | CW61103C CW62103C | CW61123C CW62123C | CW61143C CW62143C |
| Swing over bed | mm | 1030 | 1230 | 1430 |
| Swing in gap | mm | 1290 | 1490 | 1690 |
| Swing over cross slide | mm | 700 | 900 | 1100 |
| Distance between centers | mm | 1500,2000,3000,4500,6000 | ||
| Effective length in gap from face plate | mm | 380 | ||
| Spindle nose | C11 or D11 | |||
| Spindle bore | mm | 105,130 (optional) | ||
| Spindle speed/Step | rpm/steps | 10-800/18 | 7-531/18 | |
| Cross slide travel | mm | 615 | 715 | |
| Top rest travel | mm | 300 | ||
| Rapid traverse | mm/min | Z:3240mm; Z:1870mm | ||
| Tailstock quill diameter | mm | 120 | ||
| Tailstock quill travel | mm | 270 | ||
| Tailstock quill taper | MT6 | |||
| Bed width | mm | 610 | ||
| Metric threads | mm/kinds | 1-240/53 | ||
| Inch threads | Tpi/kinds | 30-2/31 | ||
| Module threads | Mm/kinds | 0.25-60/46 | ||
| Diametrical pitch threads | 60-1/2/47 | |||
| Main motor power | kW | 11 | ||
| Gross weight of machine | kg | 5200 5500 6350 7600 8800 | 5350 5650 6500 7750 9000 | 5550 5850 6700 7950 9200 |
Standard Accessories:
3-jaw chuck; dead center; reduction sleeve, foundation bolts;
Optional Accessories:
4-jaw chuck, face place, drive plate, steady rest, follower rest, electric turret
Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item.
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
