400-3500 Series Chamber Filter Plate for Sludge Dewatering

Product Description

Product description

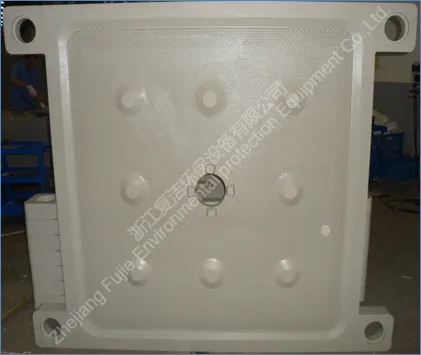

Box type filter plate, with filter chambers on both sides, each filter plate is a filtering unit. Suitable for most industries, with characteristics such as fast filtration speed and high filtration pressure. The suitable concentration of solid particles in the suspension is generally below 10%, and the operating pressure is generally 0.3-0.6 MPa. In special cases, it can reach 3 MPa or higher. There is a large feeding hole in the middle of the box plate, which allows for fast and even feeding, and is not easy to block, causing uneven pressure between the filter chambers. This is important for applications with high feed volume or pressure. Because the sealing surface of the filter plate is tightly fitted, it will not deform under high pressure. In addition, the box filter press is more convenient for unloading mud.
Simple structure, easy operation, stable operation, and convenient maintenance. Less vulnerable parts, convenient replacement of filter cloth, low maintenance cost, flexible selection of filter area, small footprint, strong adaptability to materials, suitable for various small and medium-sized sludge dewatering treatment occasions. Multiple automation devices can be configured, with a high degree of automation
High pressure filtration, lower material moisture content. Fast filtration speed and uniform washing of filter cake. The filtrate is clear and the solid recovery rate is high. Simple structure, low failure rate, and easy maintenance and management
The company provides all series from 400mmX400mm to 3500mmX3500mm
Product display
Filter cloth workshop Our Advantages
1.Rich in sizes and models, almost covering any needs of various industries
2.We have good cooperation experience with major clients around the world. According to your requirements, we can fully customize the most suitable filter plate and filter machine for you, and choose the best solution for you.
3. High cost-effectiveness, acceptable for sample orders
4. Fast delivery time and attitude towards solving problems quickly
5. Our company's box type filter press filter plate uses PP raw material for enhanced and modified production process. After
one-time molding, it undergoes post-treatment processing to achieve acid, alkali, and temperature resistance. The specifications include center feed, upper middle feed, and corner feed. The filter plate is equipped with 4-8 compression support points, making it more compressive.
6. Good sealing, anti leakage, odorless and non-toxic, with excellent service life
Specifications

Feeding	Model	Plate Thickness (mm)	Board thickness (mm)	Inlet diameter (mm)	Inlet thickness (mm)	Washing hole size (mm)	Maximum feed pressure (MPa)				Standard drivepipe		Open flow PP Water faucet
							≤50	≤75	≤90	≤110
							ºC	ºC	ºC	ºC
Center	X250	25	50	32	25	20	2	1.6	1	0.4	<1MPa: PP; >90ºC, >1MPa T 304		1/2
Center	X400	25	50	62	20	32	2	1.6	1	0.4
Center	X630	30	60	70	20	50	1	0.8	0.6				1/2
		25	55	70	20	50	1	0.8	0.6
Center	X800	30	60	90	30	50	1	0.8	0.6		PP		1/2
		20	50	90	30	50	1	0.8	0.6
		25	55	90	30	50
Center	X1000	30	60	85		50	1	0.8	0.6		304		1/2
		25	55	85
		35	65	70
Center	X1250	30	60	130	30	65	0.6	0.4	0.2		PP/304		1/2
	XI1250	30	60	130	30	65	1	0.8	0.6
Center	10X1500	35	70	150	30	80	1	0.8	0.6		PP		3/4
		30	65	150	30	80	1	0.8	0.6
	16X1500	35	75	150	35	80	1	1.6	1	0.6

1.Parameter differs in each model because of various requirements (high temperature ,chemical resistance)2.Customization available.3.Please contact us for any further information Product catalog

About usZhejiang Fujie Environmental Protection Equipment Co., Ltd. was established in June 2016 and is a wholly-owned subsidiary of Shanghai Fujie
The company has 60000KN, 80000KN, and 120000KN ultra large injection and pressure equipment, with the largest tonnage of oil pressure machines in the industry and multiple three axis machining centers and several five axis machining centers, making it the first enterprise in the industry to use five axis machining.
The unique raw materials and formulas for filter plate manufacturing ensure various performance indicators and mechanical strength, and the material is uniform and dense. The company has passed three major management system certifications: ISO9001, ISO14000, and OHSA45001. Largest tonnage of oil pressure machines in the industry
Five axis machiningcenter
(first one to use in the industry)
