Top Quality Steel Grain Silo with Pre-Cleaning System for Different Grains

Product Description

Top quality steel grain silo with pre-cleaning system for different grains
A steel grain silo is a specialized type of storage silo designed specifically for the purpose of storing grain. These silos are commonly found on farms, in grain elevators, and at processing plants. They are constructed to keep the grain dry, preventing spoilage and maintaining its quality. Grain storage silos often have airtight seals to protect against pests and contaminants, and they may be equipped with temperature control systems to further preserve the grain. The design of these silos facilitates the efficient loading, unloading, and management of large quantities of grain, making them an essential component of the agricultural supply chain.
Product specifications
steel grain silo description:
Features:

1. Can use hpt dip galvanized coil plate,plate,can also use electricity galvanized sheet,use more convenient.

2.All parts are standard components,with a replaceable,user in the use process,if produce damage or corrosion,easy to replace the damaged parts,prolong service life

3. Can transform,demolition,easpecially for the rental sites users very applicable

4. Can realize the pillar form,more advantageous to the flow of th food in the silo

The structure introduction of steel grain silo:
1. Silo body:
The silo is made of high quality hot-galvanized steel plates which are rolled into corrugation and made into srandard connecting holes.These plares are connected by high-strength screw bolts.The silo plates' thickness distribution is set according to equal strength theory which makes the silo plates bear average stress.The vertical friction is supported in the silos.The connection holes are served with round galvanized steel washers and the connection holes are served with age-resistant and water-proof washers.The silo plates' interval is injected by water-proof daub belts that are for aviation special purpose.The silo is assisted with flat repairing doors,outside ladder,ladder guard rings.
2.Silo top:
The silo top adopts umbrella frame and the frame material is made of C model straight carbon steel. The ceiling is made of galvanized steel tile plates.The silo top served with natural ventilation windows,manhole,ladder,safety guards.
3.Cement cone/flat base:
When the silo capacity is comparatively big and its diameter is below 12m.Its base is generally made into cement cone base.Cement cone base is an inverted cone hopper case into frame with cement and concrete.It makes unloading stuff automaticlly.When the silo diameter is more than 12m,because the cone base height is too big,its base generally made into half-cone base or plat base.Half-cone base can't completely unload the stuff.Flat base silo needs to unload stuff at multi-parts or equipped with a spiral silo cleaner.Cement cone base has a mediate construction price,but has a long construction period.
The advantage of steel grain silo:
1.On reasonable structure is safe and reliable: silo for the keel and corrugated steel plate combines type steel structure,the overall strength,good stability,the use of deformation,the bin body all galvanized parts,the service life reaches gb.(25years)
2.Supporting system of complete:
1)with automatic temperature measuring system,
2)equippes with ventilation system,effectively prevent grain mildew
3)material system can display the state of silo inside,to realize the automatic display and control
4)according to user requirements can be equipped with drying and fumigation system
5)with import warehouse transportation equipment,grain cleaning equipment,realize the materials in and out of warehouse automation.
3.Standard for the installtion of safety of fast:
All materials standard parts,production,installation.Short construction period.Barn all connected by bolts,can be easily disassembled into parts,to achieve the overall demolition land reorganization.Convenient repair,local damage can be replaced.
4.Of advanced technology cost-effective:
With brick silo,Fang Shicang,has a short construction period,good anti-seismic performance,light weight,low cost,based on the comprehensive advantages of low cost.
Single machines:
1.Bucket elevator:
The bucket elevator is used for vertical conveying equipment,can transport particles,power and particle material.
It is with good sealing performance,the advantages of compact structure,high lifting height,large conveying capacity,clean unloading.
It is the ideal transportation equipment for warehousing,dock and grain and oil processing plant.
2.Screw conveyor:
The screw conveyor which useing rotating spiral blade to push the material.To keep the material not rotation with the spiral conveyor leaf is the friction of its own weight and screw conveyor casing on the material.
The csrew conveyor roating shaft welding spiral blade,blade shape with different type according to delivery of materials like solid surface,belt type,leaf surface type etc. The terminal in the direction of material movement,the screw shaft of the screw conveyor have thrust bearings with material to spiral axial force,when the machine is long,should be added the middle suspension bearing.
3.High efficiency vibrating sifter:
The primary field of application for the high efficiency vibrating sifter iste separation of impurities before grain milling pilan.
It uses vibration motor and rubber vibration reduction spring which are the optimized devices to screen and separate the impurities from the grain.

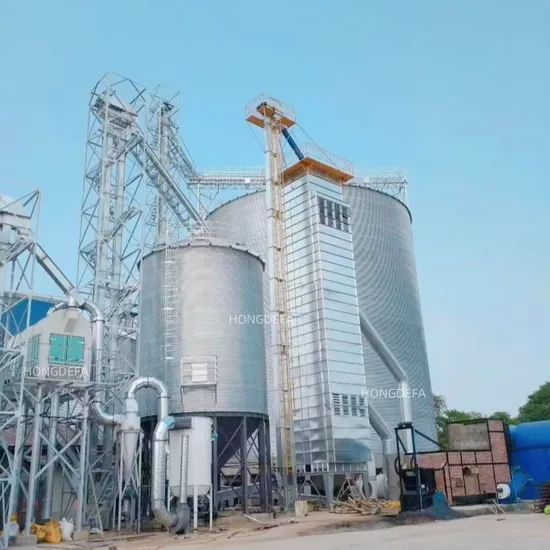

Successful projects
Successful projects
We have installed many different capacities steel grain silo in different countries.

Capacity	Country
300T steel grain silo	Zimbabwe,Sir Lank,Angola,Malawi,
500T steel grain silo	Zambia,Uganda,Angola,Kenya,Nigeria,
1000T steel grain silo	Zambia,DR Congo,Zimbabwe,Angola,Nigeria,Uganda,Benin
2000T steel grain silo	Tanzania,Zambia,Zimbabwe,Nigeria,DR Congo
3000T steel grain silo	DR Congo,Zimbabwe,Zambia
3500T steel grain silo	DR Congo,Zimbabwe

1. 4*500T steel grain silo have installed in Nigeria
2. 3*3500T steel grain silo have installed in DR Congo
3. 5*3000T silo have installed in Zimbabwe
4. 2*1000T steel grain silo have installed in Zambia
Sales and service network
Sales and service network
We have professional presales service department and aftersales service department. And we have professional technique department will make the machine design based on client reuqest and local market.
Sales map:
We have sold many milling machines and steel grain silos to over 50 different countries,like Zambia,Uganda,Kenya,Zimbabwe,Malawi,Angola,Tanzania,Nigeria,Benin,India,Thailand,Egypt,Afghanistan and so on
Clients photo We have two branch office and eight local agents in Africa
Two branch office: Zambia and Ethiopia
Eight local agents: Senegal,Nigeria,Ghana,DR Congo,South Africa,Zimbabwe,Kenya,Egypt FAQ
FAQ:
Q1.Are you a trading company or a manufacturer?
We are a professional manufacturer,we already have over 30 years experiences in flour mill market.
Q2.What is the payment method?
Normally we use T/T payment,30% payment as deposit,70% balance payment need to pay before shipping.
Q3.Who will install the steel grain silo please?
We have professional installation team,we will send our engineer to guide to install the steel grain silo.

About Us
About Us
Our company is a professional manufacture of maize mill machine and wheat flour mill machine,we provide high quality machine different capacity with different design according to client needs,with European technology,South Africa maize process,China wheat process,roll out unique and innovative wheat flour mill and maize mill plant.
And we also supply different capacities steel grain silo to different countries.
The head office of Shijiazhuang Hongdefa Machinery Co.,Ltd is located in Wumashan industrial area, Zanhuang County, Shijiazhuang City, 4hours driving From Beijing. Hongdefa has approximately 120 workers, a manufacturing factory 50000 square meters, and 5000 square meters of production workshop, 6000 square meters warehouses,1000 square meters of office space.

Our Advantages
Why choose us
We are the professional manufacturer of maize milling plant and wheat milling machine. We are the real factory.
We use advanced process machine to process raw material of steel grain silo.
We have super technique team and sales team to do service for clients.
Certifications
We can do different certifications based on client request and local market.For example,
We can do COC for Kenya client,
We can do PC for Nigeria client and so on.
Installation service:
We have professional installation team to do the installation service for client.
After client's water and electricty is ready,we will arrange to send our engineer to guide to install the steel grain silo.
Contact us
Contact us:
If you are interested in our steel grain silo,kindly please contact us freely.
Contact person: Wiwi Zhang
