Premium UHP700 Graphite Electrode From China with Fast Shipping

Product Description

Product Description

UHP Graphite Electrode
Model Number: UHP
Grade:UHP (Ultra High Power), UHP (Ultra High Power)
Resistance (μΩ.m):≤6.0
Apparent Density (g/cm³ ):≥ 1.65
Flexural Strength (N/):≥14.0
Product name:UHP Graphite Electrode 600mm with Nipples for Arc Furnaces/EAF
Type:Electrode Block
Length:2400mm
Diameter:600mm
Graphite Electrodes
Description: The electrodes carry the electricity that heats electric arc furnaces, the vast majority steel furnaces. They are made from petroleum coke after it is mixed with petroleum pitch, extruded and shaped, then baked to sinter it, and then graphitized by heating it above the temperature (3000 °C) that converts carbon to graphite. They can vary in size up to 11 ft. long and 30 in. in diameter. Product Parameters
Specifications:

HP Graphite Electrode		Unit	Φ200-400	Φ450-550	Φ600-700
Specific Resistance≤	Electrode	ΜΩ·M	6.8	6.5	6.2
	Nipple		5.0	4.5	4.2
Transverse Strength≥	Electrode	MPa	10.0-13.0	10.0-13.0	10.0-13.0
	Nipple		18.0-22.0	18.0-22.0	18.0-22.0
Elastic Modulus≤	Electrode	Gpa	8.0-12.0	8.0-12.0	8.0-12.0
	Nipple		14.0-16.0	14.0-16.0	14.0-16.0
Ash Content≤	Electrode	%	0.3	0.3	0.3
	Nipple		0.3	0.3	0.3
Bulk Density≥	Electrode	G/cm³	1.62-1.66	1.62-1.66	1.62-1.66
	Nipple		1.74-1.80	1.74-1.80	1.74-1.80
(C. T. E)≤	Electrode	10-6/ºC	1.6-1.9	1.6-1.9	1.6-1.9
	Nipple		1.1-1.4	1.1-1.4	1.1-1.4

UHP Graphite Electrode		Unit	Φ300-400	Φ450-550	Φ600-700
Specific Resistance≤	Electrode	ΜΩ·M	6.0	5.5	5.2
	Nipple		4.5	4.0	3.8
Transverse Strength≥	Electrode	MPa	10.0-14.0	10.0-14.0	10.0-14.0
	Nipple		20.0-26.0	20.0-26.0	20.0-26.0
Elastic Modulus≤	Electrode	Gpa	9.0-13.0	10.0-14.0	10.0-14.0
	Nipple		15.0-18.0	15.0-18.0	15.0-18.0
Ash Content≤	Electrode	%	0.2	0.2	0.2
	Nipple		0.2	0.2	0.2
Bulk Density≥	Electrode	G/cm³	1.68-1.74	1.70-1.74	1.70-1.74
	Nipple		1.77-1.82	1.78-1.84	1.78-1.84
(C. T. E)≤	Electrode	10-6/ºC	1.1-1.4	1.1-1.4	1.1-1.4
	Nipple		0.9-1.2	0.9-1.2	0.9-1.2

Size Chart

Nominal Diameter		Actual Diameter		Nominal Length(mm)
mm	Inch	Max(mm)	Min(mm)
75	3	78	73	1000
100	4	103	98	1200
150	6	154	149	1500-1800
200	8	205	200	1500-1800
225	9	230	225	1500-2100
250	10	256	251	1500-2100
300	12	307	302	1500-2100
350	14	357	352	1500-2400
400	16	409	403	1500-2400
450	18	460	454	1500-2400
500	20	511	505	1800-2700
550	22	562	556	1800-2700
600	24	613	607	2100-2700
650	26	663	657	2100-2700
700	28	714	708	2100-2700
750	30	765	759	2400-2700
800	32	816	810	2400-2700

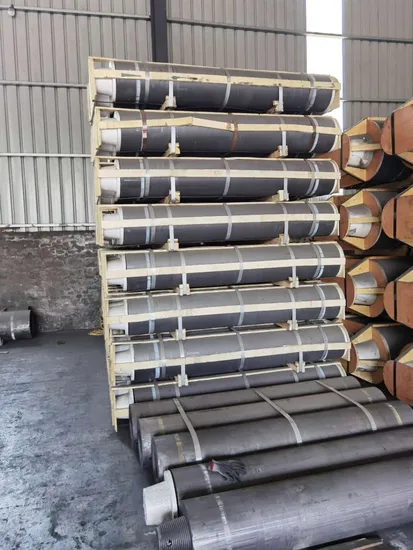

Packaging & Shipping

Application
Application 1. Electric arc steelmaking furnace.2. Ladle arc refining furnace.3. Ore-heating furnaces.4. Resistance furnacesAdvantage* Annual output of 80,000 tons, timely delivery;* Low resistivity* High temperature strength* Good thermal conductivity and electrical conductivity* Low thermal expansion coefficient* Low ash,Its ash content is controlled within 3%.* Dense and equal structure,Low graphite electrode consumption.* Good oxidation resistance* High mechanical strength* Needle coke content accounts for 80%, raw materials imported from Japan and South Korea
Company Profile
Hebei Saichuang Co., LTD is located in Heibei HanDan. location advantages and very convenient traffic conditions.
We are a professional large-scale calcined petroleum coke, grade petroleum coke,grease production enterprise integrating research and development, production. Our company is a professional full - coverage petrochemical company.The main factory was established in 2012, the registered capital of 10 million yuan, covers an area of 230 mu, is located in the economic Development Zone, Quzhou County, Handan City, Hebei Province. The company is located in the border of Shanxi, Hebei, Shandong and Henan provinces, close to the Qinglan, Daguang Highway. With a total investment of 1 billion yuan, the project is designed to produce 700, 000 tons of calcined petroleum coke annually and utilize the waste heat to produce 1 million tons of steam per year. In 2018, the first phase of the project was completed and put into operation, with six 60-tank calciners and an annual output of 350, 000 tons of high-quality calcined petroleum coke, 500, 000 tons of steam and 100 million kwh of power generation.

FAQ

1.Are you factory or trading?We are factory with ISO 9001:2015 certified.2. How about the capacity?High output, with an annual output of 80,000 tons, timely delivery; guarantee delivery date.3. How to guarantee quality?Always a pre-production sample before mass production; Always final Inspection before shipment;4.What can we buy from you?Graphite electrode,electrode paste,carbon raiser,carbon product, and other graphite products.5. How to confirm the grade of graphite electrode?Please send inquiry to us, our sales manager will confirm the details and price for you.Customers will be asked to provide electric arc furnace parameters and specifications and sizes of electrode.6. What is your payment service?Accepted Delivery Terms: FOB, CFR, CIF, EXW;Accepted Payment Currency: USD, EUR, CNY;Accepted Payment Type: T/T, L/C;
