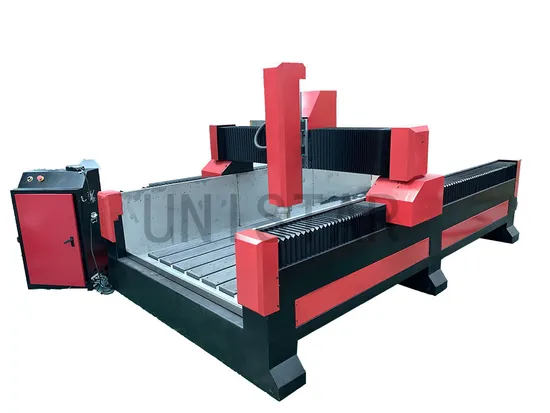

CNC Stone Engraving Machine CNC Router Marble Granite Cutting Machine Headstone Carving Milling Machinery

Product Description

Heavy duty Stone Engraving Machine for Granite Marble Stone Carving Tomb Engraving with CNC Control Product Description
Product Description
Interduction
The Stone CNC Router is mainly used to process the marble,granite and so on.It also can process the wood and metal materials.It may take half a month to carve a stone manually, but with this machine, it can be completed in a few hours, which can greatly shorten the processing time and improve production efficiency.
Main Features ★Heavy machine structure, good bearing capacity, not easy to deformation. Special machine bed design allows it to
carry more than 2000kg of materials.
★ The specially designed Z-axis can increase the unloading accuracy and completely solve the problem of Z-axis ball
screw fracture.
★ X, Y, Z axis is equipped with waterproof and dust-proof system, which can protect all components, reduce the
probability of machine failure, and extend the service life of the machine.
★ We use high-performance drive motors to ensure high speed and precision.
★The use of domestic well-known brand water-cooled spindle, low noise, good cooling effect, can adapt to long-term
work.
★ High quality Taiwan HIWIN square rail, low wear, high precision.
★ Easy to use Mach 3 controller works with all industry standard CAD/CAM software
★ Z axis high-precision TBI ball screw, good transmission effect.
Specifications
Product Parameters

Item	Standard Specifications 1325
X,Y,Z Working Area for Panel	2500*1300*300mm
Spindle Power	5.5KW Powerful Water Cooling Spindle
X,Y,Z Traveling Positioning Accuracy	±0.025mm
Table Surface	Aluminum T-slot table
X,Y,Z Rail and Transmission	X/Y rack and pinion Z High precision TBI ball screw
Max. Rapid Travel Rate	30,000mm/min
Max. Working Speed	20,000mm/min
Drive Motors	Yako stepper motor and drivers
Working Voltage	380V 3 phase or custom made.
Command Language	G code
Operating System	Shanghai Weihong NC-Studio
Interface	USB
Software Capabilities	Vectric Aspire, Type3, Ucancam, Artcam, AlphaCam, Powermill,etc.
Running Environment	Temperature: 0ºC~45ºC Relative Humidity: 30%~75%

Detailed Photos
5.5KW High Frequency Water Cooling Spindle(7.5kw For Option) The M Series machine comes standard with a 5.5kw high frequency water cooling spindle. And is fully programmable with speeds from 6000 to 24000 RPM.

Motor And Drivers

YAKO stepper motor and drivers
It has overheat protection and is safer. And it has low noise and high performance.
Machine Structure

Machine Structure is welded by thick steel tube , through special fine processing , whole-structure stable combined and good rigid, guarantee the carving accuracy, make sure no deformation after long time using.
Rail and Transmission

The machine adopts Taiwan Hiwin square rail, which is more than twice durable. X and Y axis is drivern by rack and pinion. The Z axis is drivern by ball screw.
The Electronics Of The CNC Router All the electrical components are housed and wired in a electrical enclosure. This allows for easy access and service when needed. All wiring is tagged so that when service is required, the customer can easily navigate the cabinet. In addition, the cabinet serves as a work bench for the tools required.
nverter

Shanghai Fuling inverter
Reliable quality, even in harsh environments can also work stably for a long time.

Application
Application of USM1325 cnc router
Stepmores 1325 cnc router is not only suitable for wood, mdf, acrylic processing, it is also very suitable for soft metal cutting, such as aluminum composite panel, aluminum sheet, copper, etc., this type play an important role in the advertising industry.
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.

Sample Photos
Packaging
Firstly, we use stretch film to package the machine in order to keep the machine clean and avoid shaking during shipment.
Secondly, we use plywood case to package outside, which doesn't need to be fumigated or heat treated
Finally, we use steel tube under the plywood case, which can protect the package from damage during loading / unloading.

Shipping
1. Delivery time: 15~20 business days after payment
2. Delivery way: by sea / train, or as agreed
Certifications

Customer Feedback
After Sales Service

1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control, etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we will replace it for free.
8. service in long-term: we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.
Company Profile

UNISTAR CNC Co., Ltd. was established in 2002, specializing in CNC machinery with rich experience! The company has two factories: CNC Router and Laser Machine factories and plants. UNISTAR CNC is comprehensive in the production, designing, manufacturing, trading and supplying service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, "Brand UNISTAR CNC " gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China's forefront in development and expansion. UNISTAR CNC Products are widely used in the fields of advertising, furniture, gifts, decoration, packaging etc., and materials of wood, acrylic, stone, fabric, leather metal, etc."UNISTAR CNC "is well-known not only in China, but also in Russia, Europe, Southeast Asia, Middle East, Africa, the Americas, India and other more than 120 foreign countries. UNISTAR CNC is with advanced and powerful machining capability. We have imported high precision 5 axis CNC Machining center to process the machine frame, the top milling, side milling, and side drilling will be finished in one machining center, which ensure our CNC machine is with higher precision, Moreover, the small machine parts are machined by American imported Haas ATC CNC Center. UNISTAR CNC has strong technical strength. We has more than 10 engineers to develop new machines every year, and our engineers will design the machine according customer's special request. We have more than 20 after-sale service engineers to serve our customers 7*24. UNISTAR CNC always adhere to the principle --- First class reputation, first-class service and excellent products.
Jinan Unistar machinery co., Ltd was established in 2012. We are well known for our superior quality and service in the field of engeering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc router, cnc plasma cutting machine, which have passed CE, SGS certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania, France, Esthonia, and so on.

For more details or if you need recommendation, please contact us!
