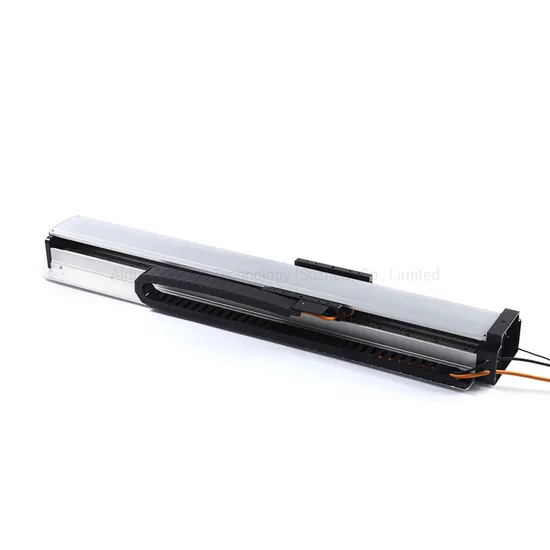

High Speed Linear Motor for Laser Engraving Machine

Product Description

ALM proposed the Magnetic-track-free(MTF)linear motor for the first time in industry based on the innovation in the magnetic field theory.Remarkably,the stator does not need the magnetic track anymore,which can save the massive rare-earth materials.By iteratively optimizing the design and the manufacturing craft,MTF linear motor obtained the extremely high force density,operating speed and moving precision.
Product Parameters

Series

Motor

Continue Current

DC Bus Voltage

Maximum speed at rated force

Continue/Peak force

Mover width

Mover length

Motor height

50

100

200

400

800

1600

S1

MTF- S1- 50- A

1.5A

310V

5.4m/s

62N/160N

50mm

156mm

45mm

510V

8.9m/s

MTF- S1- 50- B

3.0A

310V

10.8m/s

510V

17.8m/s

MTF- S1- 75- A

3.0A

310V

4.8m/s

153N/346N

75mm

510V

7.9m/s

MTF- S1- 75- B

6.0A

310V

9.6m/s

510V

15.8m/s

MTF- S1- 90- A

4.5A

310V

5.4m/s

246N/479N

90mm

510V

8.7m/s

MTF- S1- 90- B

9.0A

310V

10.8m/s

510V

17.4m/s

MTF- S1- 100- A

4.5A

310V

4.6m/s

276N/538N

100mm

510V

7.6m/s

MTF- S1- 100- B

9.0A

310V

9.2m/s

510V

15.2m/s

S2

MTF- S2- 50- A

1.5A

310V

2.7m/s

124N/320N

50mm

300mm

510V

4.4m/s

MTF- S2- 50- B

3.0A

310V

5.4m/s

510V

8.8m/s

MTF- S2- 75- A

3.0A

310V

2.4m/s

306N/692N

75mm

510V

3.9m/s

MTF- S2- 75- B

6.0A

310V

4.8m/s

510V

7.8m/s

MTF- S2- 90- A

4.5A

310V

2.7m/s

492N/958N

90mm

510V

4.3m/s

MTF- S2- 90- B

9.0A

310V

5.4m/s

510V

8.6m/s

MTF- S2- 100- A

4.5A

310V

2.3m/s

552N/1076N

100mm

510V

3.8m/s

MTF- S2- 100- B

9.0A

310V

4.6m/s

510V

7.6m/s

Our Advantages
MTF linear motor advantages

MORE SAFE	No magnetic field in stator,easier for assembling,much lower risk for operators
MUCH SMALLER ATTRACTION FORCE	About ⅓ of the conventional linear motor attraction force can reduce the friction and cogging force significantly,thus to increase the life expectancy and reduce the operating noise.
MUCH SMALLER COGGING FORCE	Benefited from the low attraction force and the specialized optimizing design,MTF-LM can obtain the extremely low cogging force.
MORE ADAPTIVE	With low requirement for the ingress protection,and reduce the EMI grade obviously
EASIER FOR PROTECTION	Not easy to attract the sundries and ashes into the motor,easier for protection
HIGHER COST-EFFECTIVE	Benefited from the rare-earth material saving,MTF is trying to provide the most cost-effective products for customers.
