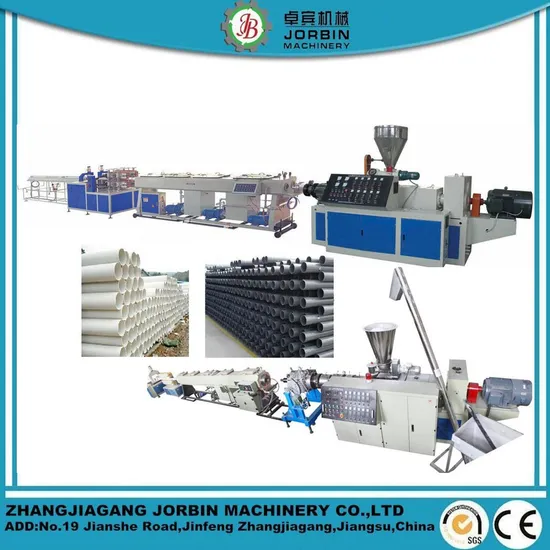

UPVC PPR PE Drainage Drain Water Supply Pipe Extrusion Making Machine

Product Description

The UPVC PVC Drainage Drain Water Supply Pipe Extrusion Making Machine is an advanced solution primarily engineered for the production of high-quality PVC pipes. These pipes, available in various diameters and wall thicknesses, are essential in multiple sectors, including agriculture, constructional plumbing, cable laying, water supply, and water drainage, ensuring efficiency and reliability in diverse applications.
The Remarkable Advantages of This Cutting-Edge Machine: 1. Incredible high-speed performance of 18m/min, maximizing productivity and efficiency.
2. Offers a highly competitive price, ensuring excellent value for investment.
3. Fully automated operation reduces manual intervention, enhancing precision and efficiency.
4. Innovative dust-free cutting technology for a cleaner and safer working environment.
5. Diameter range accommodating 20-160mm, providing versatility for various applications.
6. Linear velocity reaching up to 4-10m/min, ensuring efficient production flow.
7. Proudly carries CE certification, confirming compliance with European safety standards.
Tailored to your specific capacity requirements, our engineers can design an extruder of different sizes. This machine, being our most compact model, is ingeniously designed to simultaneously produce two pipes, boosting efficiency and output.
Detailed Machine Parameters, Precisely Engineered for Optimal Performance:

Item NO.	Item name	Quantity	Power
1	Auto charger and feeder	1 set	1.5kW+0.75kW
2	SJZ-51/105 conical twin-screw extruder	1set	18.5kW
3	High speed die(φ16-40)	1 set	10kW
4	Vacuum forming tank	1 set	4kW
5	Double haul-off machine	1 set	0.75kW*4
6	Double cutter machine	1 set	0.75kW*2
7	Stack	1 set	--

Experience a visual tour with additional photographs showcasing the machine during rigorous testing phases.
Comprehensive Machine Line Overview: A Synonym for Robustness and Innovation.
Witness the machine in action within our state-of-the-art factory setting.
Observe the precision with which pipes emerge seamlessly from the die.
Vacuum Forming Machine: This essential equipment ensures that the pipe conforms precisely to your specifications, featuring one vacuum pipe and two water pumps for optimal performance.
Crafted with a 3mm stainless steel container, ensuring durability and longevity.
Effective length reaches a substantial 4 meters, enhancing productivity.
Equipped with a powerful 4kW vacuum pump for superior performance.×1
Includes two water pumps, each with a capacity of 2.2kW, for efficient cooling.
Adopts a water-based cooling method to maintain ideal operational temperatures.
Mobile electromotor of 0.75KW for versatile movement and adjustments.×1
Pipe Diameter Arrangement: φ12-φ50mm
Precision movement range for adjustments in the forward and backward direction: ±500mm
Flexibility with movement range up and down: ±50mm
Movement range side-to-side ensures versatility: ±30mm
Cutting Machine: Features programmable settings for precise pipe lengths, ensuring accuracy.
Cutting power robustly supported by two 0.75kW motors.
Width stretches to 250mm, accommodating various cutting needs.
Cutting knives crafted from high-quality alloy for superior durability and performance.
Cutting operations expertly controlled pneumatically for consistency.
Operates under a working pressure of 0.5-0.7Mpa to ensure optimal cutting conditions.
Offers cutting versatility with both manual and automatic options.
Utilizes the reliable Mitsubishi PLC for precise control and automation.
Versatile die types available for crafting pipes of different diameters, such as: φ16,φ20,φ25,φ32,φ40)
Hall Off Machine: Dedicated for efficient single-pipe processing.
Water Spray Machine: Ensures precise cooling and finishing of pipes.
Vacuum tank
Main parameter of PVC, UPVC Wall Pipe Extrusion Line / UPVC Pipe Making Machine

Specification	16-40 Dual	20-63 Dual	20-75	50-250	250-500	315-630
Max. pipe diameter (mm)	40	60	75	250	500	630
Main conical extruder	SJSZ51/105	SJSZ65/132	SJSZ51/105	SJZ65/132	SJSZ80/156	SJZ92/188
Max. capacity (KG)	120	250	120	250	350	800

Performance & Advantages of PVC, UPVC Wall Pipe Extrusion Line / UPVC Pipe Making Machine:
1. Discover the GF series plastic pipe production line, expertly designed for the manufacturing of plastic PVC pipes. These pipes, with their varied tube diameters and wall thicknesses, are specifically engineered to meet the demanding needs of water supply and drainage in both agriculture and construction sectors.
2. This innovative line integrates a conical twin-screw extruder, vacuum calibration table, haul-off unit, cutter, and stacker, ensuring a seamless production process.
3. Both the extruder and the haul-off unit feature superior quality AC frequency conversion control devices, delivering unparalleled performance.
4. Our top-tier vacuum pump and motor incorporate renowned brand technology, ensuring durability and efficiency.
5. Choose from a versatile range of haul-off configurations, including two-claw, three-claw, four-claw, and six-claw designs, tailored to your specific production needs.
6. Enhance production efficiency with your choice of saw blade cutting type or planet cutting, optimized for precision and speed.
7. Our company offers specialized equipment to manufacture inner wall spiral coils and core layer blisters, customized to meet unique client requirements, elevating your production capabilities.
For more in-depth information about our PVC, UPVC Wall Pipe Extrusion Production Line / UPVC Pipe Making Machine,
please feel free to contact us without reservation.
1. With each machine, we provide the following essential documents:
Machine Layout Electrical Diagram Machine Certificate Comprehensive Manual Book/Maintenance Guide 2. We offer a robust one-year quality guarantee. If any malfunctions occur under this warranty period due to our responsibility, we will promptly dispatch replacement spare parts via DHL courier or another method within 7 workdays of receiving the complaint. Additionally, our skilled technicians are available to visit the buyer's factory for maintenance, with all associated costs covered by us.
3. Beyond the initial one-year guarantee, we continue to provide payable spare parts and technical maintenance visits upon request. We ensure rapid dispatch of any necessary replacement parts as swiftly as possible to minimize downtime.
4. We are confident that our quotation aligns with your expectations and are eager to provide any additional information you may require.
5. For round-the-clock assistance, contact our 24-hour service hotline: Cell +86-13915707468
