Tu0618/Tu0618A Metal Turning Center Universal Horizontal Lathe Mini Machine

Product Description

Product Parameters

Basic Info.
Model NO.	TU0618		Guide Rail	Horizontal GuideRail

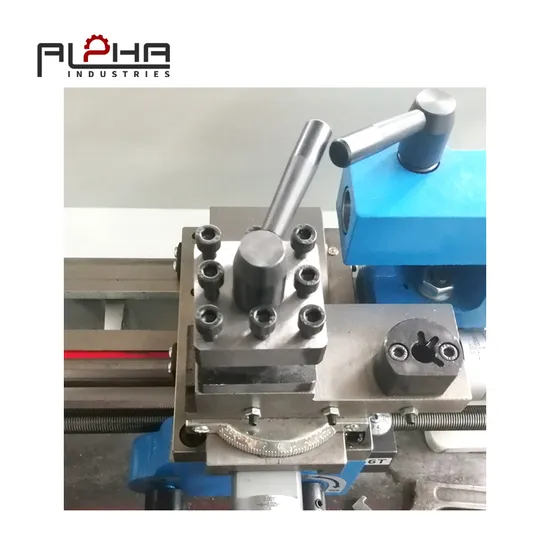

Tool Holder	4 Tool Post		Power Source	Electric
Controlling Mode	Artificial		Automatic Grade	Manual
Setting Mode	Hoor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specification	660/760/810x305x370mm		Trademark	Alpha industries
Origin	China		ProductionCapacity	100 Sets/Year

Model No.	Unit	TU0618	TU0618A
distance between centers	mm	200/300/350	200/300/350
		(7.87"/11.81"/13.78")	(7.87"/11.81"/13.78")
swing over bed	mm	180(7.09")	180(7.09")
spindle taper		MT3	MT3
chuck diameter	mm	80(3.15")	80(3.15")
spindle bore	mm	20(0.79")	20(0.79")
tool slide travel	mm	35(1.38")	35(1.38")
taper of tallstock quill		MT2	MT2
range of metric threads	mm	0.5~2.5(0.02"~0.10")	0.5~2.5(0.02"~0.10")
range of inch threads	TPL	12~52	12~52
cross slide travel	mm	65(2.56")	65(2.56")
spindle accuracy	mm	0.01	0.01
spindle speed	rpm	50~2500	100~250
vol./freq		230V/50Hz or 120V/60Hz	230V/50Hz or 120V/60Hz
motor	W	400	550
N.W.	kg	35/38/40	35/38/40
G.W.	kg	38/42/45	38/42/45
packing size	mm	660/760/810×305×370	660/760/810×305×370

Standard Accessories

3 jaw chuck	Maintenance wrench	Replaceable gear
manual	oiler	fuse

Optional Accessories

steady rest	following rest	4 jaw chuck
face plate	live center	6pcs/set tool

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
