Semi Automatic Paper Cake Tray Making Machine

Product Description

automatic cake tray forming machine Product Description
It is designed on the basis of advanced technology that from Italy. After self-reliant innovation,we have researched and developed the automatic cake tray forming machine

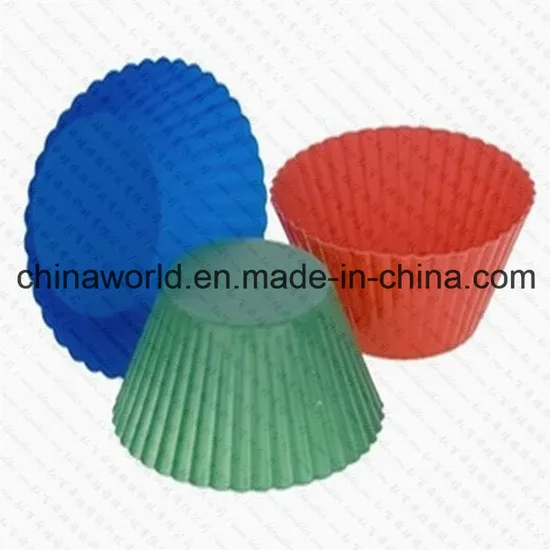

This machine is used for making different standard oil proof paper and Aluminum-Foil cake tray .
It uses the manipulator pneumatically control the process of holding and putting the paper , automatic allocating paper , pressing the mould the hot formation ect.
This model machine can make different size of oil proof paper and aluminum foil tray by changing the mould
Product Parameters

Paper size	15-120g/m2;φ55-φ200mm
Raw material	Anti-oil, aluminum oil paper,coffee filtering paper
Capacity	20-40times/min, 15-30papers/time
Power Source	220V 50HZ
Total Power	1.5KW
weight	300Kg
Dimension	(L*W*H) 600*900* 1740mm
Air Source	Pressure 0.4MPa volume 0.2-0.3m3/min
Oil hydraulic cylinder	oil pressure 1.5T

ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
