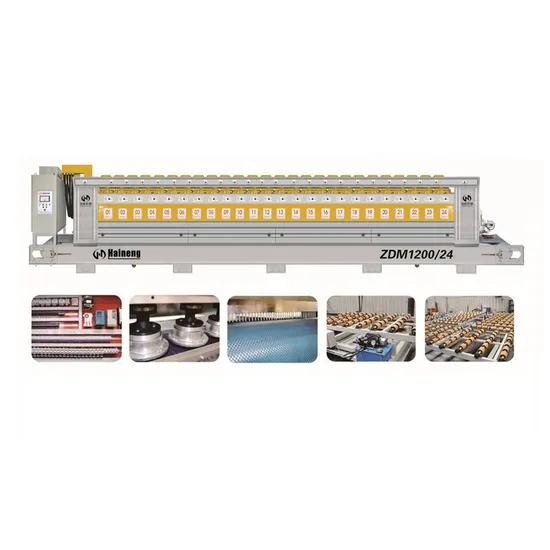

Higher Production Efficiency Automatic Polishing Machine for Granite with CE Stone Polishing Machine

Product Description

Product Description
a.More compact body: smaller size than traditional automatic grinding, reducing unnecessary space waste!
b.Higher production efficiency: the grinding and plate feeding speed is accelerated, and the daily output can reach 800-1000 square meters!
C.Higher polishing gloss: with the right abrasive, the gloss can easily reach 100 degrees!
d.Low production cost; the diamond tool head can be quickly loaded into the grinding head without brazing, which not only saves the time of dismantling and replacing the grinding head, but also saves the brazing cost!
e. Stable equipment performance: the main components are international high quality famous brand, the deputy track is high-precision linear track, the grinding pressure is directly driven by the main shaft, longer life, more stable operation!
f.High degree of intelligence: automatic memory function makes midway stop after restarting, can continue to work in the original station,automatic fault alarm and prompt fault location and solution!
g. Simple operation: using the touch screen operation interface, no matter for parameter setting or equipment abnormal work report, user operators can easily realize man-machine dialogue. Detailed Photos
Product Parameters

Type	unit	ZDM-1200/08	ZDM-1200/12	ZDM-1200/16	ZDM-1200/20	ZDM-1200/24
No. of grinding head	pcs	8	12	16	20	24
Main motor power	kw	7.5	7.5	7.5	7.5	7.5
Total power	kw	71	101	132.5	170	194
Grinding head diameter	mm	Φ200	Φ200	Φ200	Φ200	Φ200
Grinding plate width	mm	1200	1200	1200	1200	1200
Grinding plate depth	mm	10-60	10-60	10-60	10-60	10-60
Beams swing speed	m/min	3-35	3-35	3-35	3-35	3-35
Speed into the boards	m/min	1-4	1-4	1-4	1-4	1-4
Cooling water pressure	Mpa	0.1-0.15	0.1-0.15	0.1-0.15	0.1-0.15	0.1-0.15
Air supply pressure	Mpa	0.85	0.85	0.85	0.85	0.85
Water consumption	m³/h	12	18	25	31	37
Dimension (L×W×H)	mm	5300×3200×2500	6600×3200×2500	7900×3200×2500	9200×3200×2500	10500×3200×2500
Total weight	kg	12000	13000	14000	15000	16000

Partial Control Element
Company Profile
CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries
