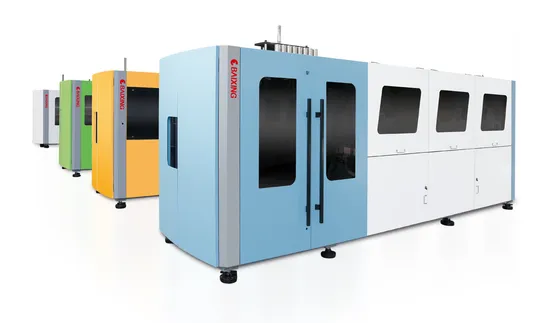

High Speed Pet Water Bottle Blow Molding Machine

Product Description

1. Utilization of automatic central lubrication.
2. Compact space design for convenience of mold-conversion, repairing, and maintenance.
3. Minimized transfer pitch for increasing heating efficiency and saving energy.
4. Swift exchange design for preform mandrels.
5. Optimized air flow in the oven for stable heating process.
6. Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
7. Intact rotating robot grip with linear guider for right access, rapid motion; Reducing adjustment and maintenance time.
8. Electronic inspector for ejecting faulty preform and bottles.
9. Fast, safe, and accurate cam-controlled blowing wheel for providing the best bottles.
10. Precise control of blowing technique to produce less-weighted bottle.
11. Smart design for quick conversion of blow mold.
12. Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13. Operating machine through touch panel; Program protected by code lock.

ITEM		UNIT	BX-S6-S
CONTAINER	Max.container volume	L	0.6
	Max.neck outer diameter	mm	38
	Max.container diameter	mm	68
	Max.container height	mm	240
	Number of cavity	pcs	6
	Theoretical output	bph	7000-8000
ELECTRICAL	Max.heating power	kw	55
	Installed power	kw	60
COMPRESSED AIR	Operating pressure	Mpa	0.7
	Low pressure air consuming	L/min	3000
	Blowing pressure	Mpa	<3.5
	High pressure air consuming	L/min	4000-4500
CHILLER WATER	Pressure	Mpa	0.3-0.5
	Temperature	degree	10-12
	Flow rate	L/min	30
MACHINE DIMENSION	Size(L*W*H)	m	4.2×2.05×1.8
	Weight	kg	6300
