Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable

Product Description

Outdoor Stranded Loose Tube Light Armored Cable GYTA Optical Fiber Cable

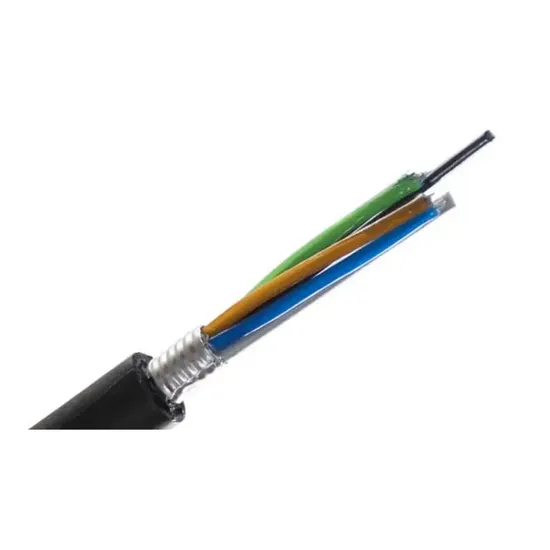

Product Description The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. An aluminum polyethylene Laminate (APL) is applied over the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable is completed with a PE sheath.

Product Parameters

Cable type	GYTA
Optical fiber counts	2-288
Optical fiber color	Blue,Orange,Green,Brown,Slate,White,Red,Black,Yellow,Violet,Pink,Aqua
Fiber Types	Single-mode and Multimode
Cable Constructions	S-Z Stranded loose tube
Strength Member	Steel wire
Sheath Options	Single PE Sheath
Armor	Aluminum tape
Operating Temperature	-40ºC-70ºC
Tensile Strength	Short term 1500N Long term 600N
Crush Resistance	Short term 1000N/100mm Long term 300N/100mm
Minimum bend radius	Dynamic 20D Static 10D

Notes:
1.The above parameters are typical value;
2.The cable spec can be designed according to customer's requirement.
