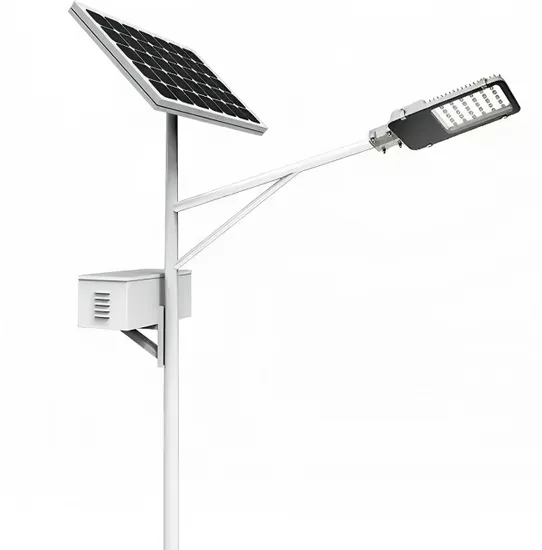

Flohar IP65 Waterproof 50W 80W 100W Split LED Solar Light
Basic Info.
Model NO.
SR-C007
Light Source
LED Lamp
Lamp Body Material
Aluminum
Light Type
Solar
Color Temperature
Customized
Power
10W-120W
Technics
Painted Matte
Illumination Time
8h
Cell Type
Lithium Battery
Charging Time (H)
8
Usage
Garden, Street
IP Rating
IP65
Certification
CE, RoHS, TUV
Voltage
12/24V
With Light Source
With Light Source
Battery
Lithium Battery
Lamp Luminous Efficiency(Lm/W)
120
Working Time (Hours)
50000
Charge Time
8 Hours
Lumens
100lm/W
Wind Index
Grade 12
Control
Intelligent Controller
Solar Panels Efficiency of Solar Cells
18%
Height
3-12m
Transport Package
Carton Box
Specification
Customized
Trademark
FLOHAR
Origin
Jiangsu, China
HS Code
9405409000
Production Capacity
50000 PCS/ Month
Product Description
Product Description Manufacturer Free Design IP65 Waterproof Outdoor Split Solar street Light High power 3--10m standing pole lighting outdoor solar street lamp with led lamp for road lighting Feature: ♦. No electricity required & no pollution♦. Powered by Sunlight during daytime
♦. Imported & high efficiency solar panel
♦. Super bright LED with Long lifetime
♦. Easy installation & portable
♦. Switch for manual on/off
♦. Turns on at dust and off at dawn automatically lightingHigh power 3--10m standing pole lighting outdoor solar street lamp with led lamp for road lighting application:Garden, Lawn, Park, Residential quarters, plaza, outdoor terrace, garden villas, green square, tourist attractions, resorts, golf courses, corporate factory green lighting, a small residential, seaside lighting ect.
Specification 100W LED LAMP
| Material of Lamp | Die-cast Aluminum | |
| Power | 100W | |
| LED Chip | Luxeon 3030 | |
| Light Efficiency | >120lm/W | |
| CCT | 3000-6500k | |
| IP | 65 | |
| Working Environment | 30ºC~+70ºC | |
| Size | 680*278*80MM |
| Module | 100W | |
| Efficiency of solar cells | 18% | |
| Voltage at max power(VMP) | 19V | |
| Current at max power(IMP) | 5.84A | |
| Open circuit voltage(VOC) | 23.65V | |
| Short circuit current(ISC) | 6.21A | |
| Protection Class | IP65 | |
| Operate temp.scope | -40/+70ºC |
| Rated Voltage | 25.6V | ||
| Rated Capacity | 60.5 Ah | ||
| Approximate Weight(kg,±3%) | 18.12KG | ||
| Terminal | Cable(2.5mm²×2 m) | ||
| Maximum Charge Current | 10 A | ||
| Working Temperature | -35~55 ºC | ||
| Case | Aluminum | ||
| Dimension | 473*290*130MM | ||
| Rated working voltage | 15A DC24V | |
| Max. discharging current | 15A | |
| Max. charging current | 15A | |
| Output voltage range | 24V | |
| The precision of constant current | ≤3% | |
| Constant current efficiency | 96% | |
| levels of protection | IP67 | |
| no-load current | ≤5mA | |
| Over-charging voltage protection | 24V | |
| Over-discharging voltage protection | 24V | |
| Exit over-discharging voltage protection | 24V | |
| Size | 65*75*20MM | |
| Weight | 188g |
| Material of Pole | Q235 | |
| Height | 8M | |
| Diameter | 80/180mm | |
| Thickness | 4.0mm | |
| Light Arm | 60*2.5*1200mm | |
| Anchor Bolt | 4-M18-1000mm | |
| Flange | 320*320*18mm | |
| Surface Treatment | Hot dip galvanized+ Powder Coating | |
| Warranty | 20 Years |
