High-Quality Eyh Equipment Series Two 2D Dimension Mixer
| US$5,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
EYH
Application Area
Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Mixing Capacity
100-250L
Safety Features
Emergency Stop Button
Speed Control
Single Speed
Speed Range
40-49 R/min
Stirring Type
Diving
Temperature Control
With Heating
Working
Diffusion Mixer
Powder Mixer
Powder Blender
Rocking Mixer
Rocking Mixer Machine
Mixer Type
Powder Mixer
Name
Two Dimension Mixer
Transport Package
Wooden Case
Specification
ISO, GMP
Trademark
SUPM
Origin
China
HS Code
8479820090
Production Capacity
500sets/Year
Packaging & Delivery
Package Size
1.20cm * 0.78cm * 1.50cm
Package Gross Weight
500.000kg
Product Description

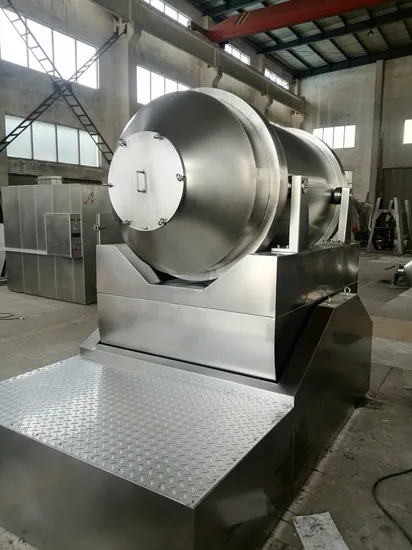

High-Quality Eyh equipment Series Two 2D Dimension Mixer Principle:EYH Series Two Dimensions Mixer(rocking mixer) mainly consists of three big parts: Rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Features:
The rotating cylinder of EYH Two Dimensions Mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials.
| spec | gross volume(L) | feed rate | feed weight(kg) | Overall demensions(mm) | power(kw) | ||||||
| A | B | C | D | M | H | rotation | sway | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5 .5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
