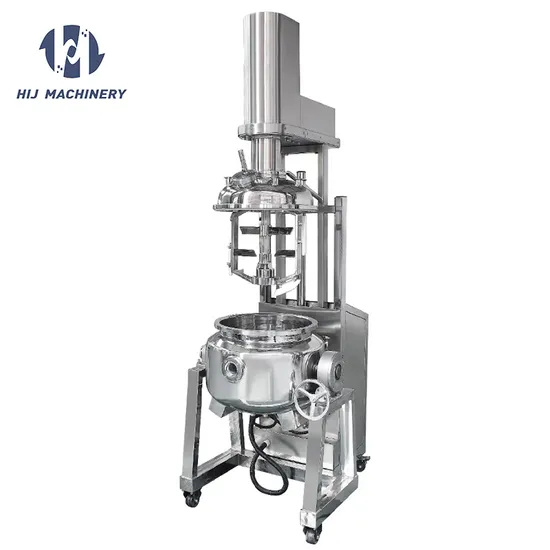

Screw Lift Emulsifying Machine Vacuum Mixing Emulsifier Homogenizer Mixer

Product Description

Product Description Purpose:
The equipment is suitable for emulsification of the pharmaceutical. Cosmetic, fine chemical products, especially the material having high matrix viscosity and solid content. Such as cosmetic, cream, ointment, detergent, salad, sauce,lotion, shampoo, toothpaste and so on.
Cosmetics industry products: face cream, lotion, lipstick, shampoo, etc Pharmaceutical industrial products: ointment, syrup, ophthalmic medicine, antibiotic, etc Food industry products: jam, cream, margarine, etc Chemical industry products: chemicals, synthetic adhesives, etc Dyeing industrial products: pigment, titanium oxide, etc Printing ink: color ink, resin ink, newspaper ink, etc Others: pigments, waxes, coatings, etc Structure
The equipment consists of emulsifying pot, emulsifying system, stirring system, temperature control system, cooling system, heating system, safety system and pipeline, valve and so on.

Product Parameters

Model	30 Type
Tank volume	50L
Working volume	30L
Pressure in tank	-0.1Mpa
Jacket pressure	0.1Mpa
Type of heating and cooling	Electrical heating and Water cooling
Fram agitator	0--60 rpm 0.75kw
High speed homogenizer	0-2800 rpm 2.2kw
Vacuum pump (Option)	-0.09Mpa

Features Heating mode: electric heating, 6KW Tank liner material: SUS316, thickness is 5mm, internal polishing 300MESH (sanitary) The medium bile material is: SUS304 thickness is 3mm, withstand the maximum working pressure of 0.1MPa Outer coating material is SUS304, thickness is 2mm, external polishing 300MESH (sanitary) All welds are smoothed and polished with flanged arc transition The insulation layer adopts PU(polyurethane) foaming process of various materials, and the insulation effect is particularly good Discharge method: Inclined discharge, positive pressure discharge. There are two sets of stirring devices in the pot.High shear vortex emulsifying mixer, speed 0-2800rpm (variable frequency speed regulation).Slow frame wall scraper mixer, speed 0-60 rpm (variable frequency speed regulation) Detailed Photos
Samples
Packaging & Shipping
Company Profile
FAQ
1.what's the delivery time?It's about 30days2.how many container request for this machineSuggest ship by LCL.3.Are you a manufacturer?Yes,We have been packaging machinery over 17 years.4.what about the payment term ?Mostly 40%T/T in advanced,the rest need paid before shipping.5.what's your advantages ?--17 years experience:We have been in making machinery for 17 years.--Customers all over the world--Certificate: CE certificate--Fast reply:Our team will reply you soon.--After-sale service:We have a after sale department , service for your problems and dealing with spare parts.
