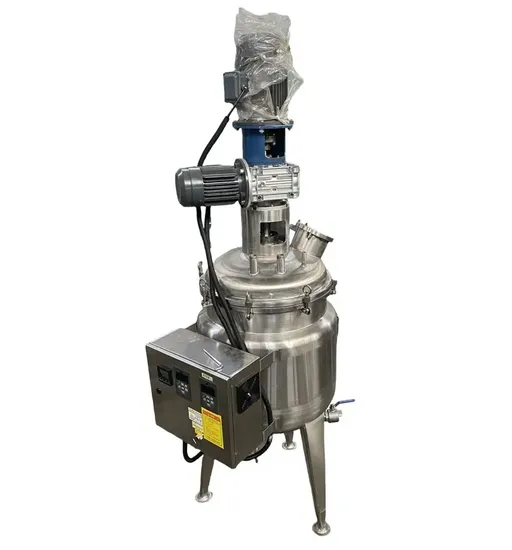

Supply High Quality 304 Stainless Steel Mixing Tanks Liquid Detergent Mixer Machine

Product Description

Wholesale electric shampoo detergent washing liquid heating 304 stainless steel vacuum mixer machine

Item	Specification
Volume	100L 304 stainless steel mixing tank with control box
Voltage	220V/380V/110V
Frequency	50/60HZ
Power (kW)	Mixing: 0.75kW; double layer jacket, 6KW electrical heating: emulsification
Steel tank thickness	2-4mm
Blade	Frame mixing paddle with scraping or custom made accoridng use
Range of mixer speed	40rpm, custom made fixed or adjusted.
Temperature range	0-300 adjustable
Surface treatment	Mirror finish
Lid	Cover lid or sealed lid
Custom made	homogenizer, double jacket heating, speed, observation port, seal lid, surface treatment, inlet/outlet, power, control box.
Emulsifying machine	4KW/2900RPM top or bottom optional
Material	Stainless Steel 304 / SUS316L
Product type	Liquid , soap , shampoo, cream,cosmetic,etc
Valve	DN25(1'')
Warranty	1 year
Service	Supply drawing before produce
Lead time	10 days after confirm drawing
Product name	stainless steel liquid mixer detergent mixing tank with control box
Capacity	50L, 100L, 200L, 300L, 500L,1000L, 2000L,3000L, 5000liters

Product Advantages
Slow mixing on top 40rpm or custom made
Stir heating constant temperature adjustable 0-300 degree
Emulsion high shear dispersion 2900rpm on top/bottom
Heating------Mixing------Homogenizer
1. High-speed disperser might mix and disperse viscously, solid and liquid etc. various kind of raw material will be dissolved, during liquid production which can save energy consumption and shorten production and shorten production period.
2.Main adopts stepless timing device which reduces babble occur under low temperature and high viscosity condition less air bubble will be formed.
3.To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
4.Finished products can be discharged by a valve or match a screw pump.

200L including 220V 1.5KW mixer, 6KW heating,3kw emulsifying, speed control 0-80rpm and scraper









Feature
1.Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
2. Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
3.Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During fewproduction, it can exert homogenizing effect fully;
4.Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high -capability cut,rubbing,centrifugal to make sure exquisite and slick cream; boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation;
5.Homogenizing vacuum emulsifier mixer can choose frequency conversion timing homogenizer and highest rotate speed is 4500 r/min.
Packaging & Shipping
MOQ or custom made: 1 unit
Package: Export wooden pallet or box as request.
Lead time: 10 days after confirm drawing.
