300L Solar Water Heater for Home Use with Best Price
Basic Info.
Model NO.
DRSA1-ACDC-41/300
Structure
Separate Type
Pressure
Pressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Tank Insulation
Certification
CE, EMC GS RoHS Saso Inmetro
Water Tank Volume
300L
Heating Capacity
4100W
Water Heating 15 to 55
88.1L/H
Solar Panel Power(W)
80V-380V
Voltage(V)
208V-240V/50-60Hz
Rated Power Consumption
972W
Rated Current
4.5A
Cop
4.22
Max Current(AC)
7.4A
Max Current(DC)
12.0A
Max Power Consumption
1600W
Outdoor Net/Gross Weight
33.5/37.5kg
Water Tank Net/Gross Weight
80/92kg
Transport Package
Cartons and Pallets
Specification
890*360*610mm
Trademark
Deye or OEM
Origin
China
HS Code
8415102100
Production Capacity
2000PCS
Packaging & Delivery
Package Size
100.00cm * 290.00cm * 100.00cm
Package Gross Weight
365.000kg
Product Description

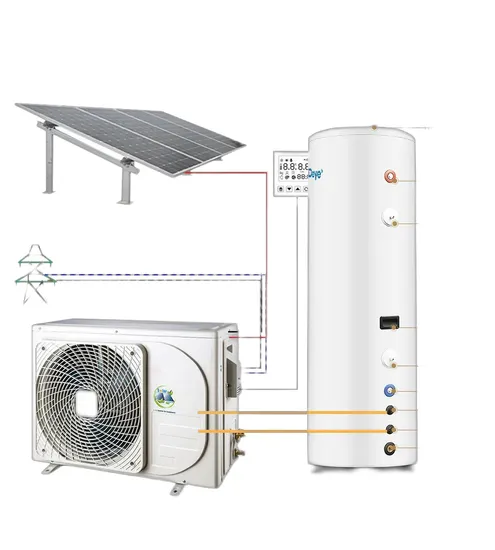

300L Solar AC/DC Air Source Hot Water Heat PU| SOLAR AC/DC AIR SOURCE HOT WATER HEAT PUMP | |||
| Model Name | DRSA1-ACDC-41/200N1 | DRSA1-ACDC-41/300 | DRSA1-ACDC-55/500 |
| Water Tank Model | DSX-200G | DSX-300G | DSX-500G |
| Water Tank Volume | 200L | 300L | 500L |
| Heating Capacity | 4100W | 4100W | 5500W |
| Rated AC Grid Power | 208-240V/50-60Hz | 208-240V/50-60Hz | 208-240V/50-60Hz |
| Solar Panel Power(DC) | 80V-380V | 80V-380V | 80V-380V |
| Electric Shock Prevention | Class I | Class I | Class I |
| Water Heating 15ºC to 55ºC | 88.1L/H | 88.1L/H | 115L/H |
| Rated Power Consumption | 972W | 972W | 1310W |
| Rated Current | 4.5A | 4.5A | 6.0A |
| COP | 4.22 | 4.22 | 4.2 |
| Max Current(AC) | 7.4A | 7.4A | 8.8A |
| Max Current(DC) | 12.0A | 12.0A | 12.0A |
| Max Power consumption | 1600W | 1600W | 1900W |
| Noise Level | 52dB(A) | 52dB(A) | 54dB(A) |
| Refrigerant | R410A | R410A | R410A |
| Water Proof Level | IPX4 | IPX4 | IPX4 |
| Outdoor Net/Gross Weight | 33.5/37.5kg | 33.5/37.5kg | 37/42kg |
| Outdoor Net Dimention | 802*323*564mm | 802*323*564mm | 802*323*564mm |
| Outdoor Package Dimention | 910*405*622mm | 910*405*622mm | 910*405*622mm |
| Water Tank Net/Gross Weight | 60/68kg | 80/92kg | 138/152kg |
| Water Tank Dimention | Φ520×1600mm | Φ580×1810mm | Φ710×1865mm |
| Water Tank Package Dimention | 550*550*1665mm | 605*605*1915mm | 740*740*1940 |
| Water Inlet/Outlet Connector Size | DN20 | DN20 | DN20 |
| Heat Exchanger Max. Pressure | 4.4MPa | 4.4MPa | 4.4MPa |
| Max Discharge/Suction Pressure | 4.4/1.8MPa | 4.4/1.8MPa | 4.4/1.8MPa |
| Test Condition: Ambient Temp.(DB/WB): 20ºC/15ºC, Water Temp.(In/Out): 15ºC/55ºC | |||
| Lead time | 1-5set | 8days |
| >5set | 10days |
