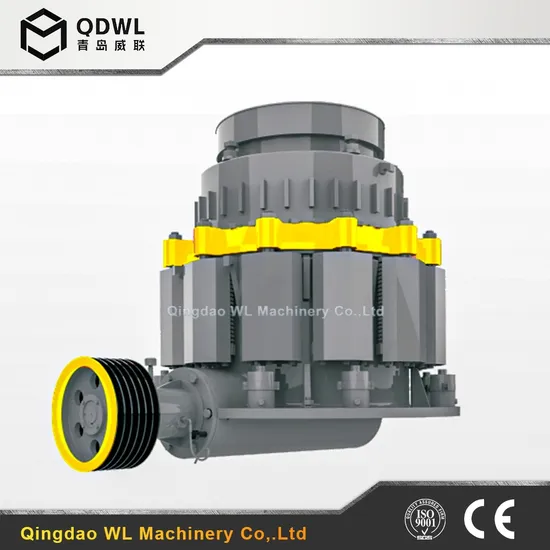

Compound Symons spring hydraulic cylinder and muti-cylinder stone cone crusher
Detailed Photos

The advantages
Cone crusher is a compression type of stone crusher
The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner.
The whole working process of cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, squeezing or compressing the materials continuously. The material is crushed from all directions, crushed and grinded according to their own grain, which formed the high compressive strength building aggregates. The materials are small enough to fall through the narrow opening at the bottom of the crusher.
Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.
cone crusher is suitable for various coarse, medium and fine materials whose compressive strength does not exceed 350MPa, such as river pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz, diabase, marble, copper ore, pebbles, etc.
Why choose cone crusher?
1. Through the optimized design of the cavity and the combination of reasonable speed and stroke, CS cone crusher can perform the most work under the same diameter of the moving cone.
2. Based on the principle of lamination crushing, the proportion of cubes in the crushed s tone product is significantly increased, the needle-like stones are reduced, and the particle size is more uniform.
3. When unbreakable materials enter cone crusher crushing chamber, high-performance alloy steel springs are used as advanced overload protection system, it can effectively protect machine safety.
4. The automatic control system adopts large-diameter main shaft, heavy-duty main frame and independent thin oil lubrication system to ensure that the equipment is durable and reliable in operation.

Product Parameters
There are three main types of cone breakers that are popular on the market today, and they are:
1. Simmons Spring Cone Crushers
2. Single Hydraulic Cylinder Cone Crushers
3. Multi-Cylinder Cone Crushers
According to the size of the raw materials, the size of the output and the output of the machine, we will provide you with the appropriate crusher model. The specific parameters of each model are as follows. Please choose the crusher that suits you and I will provide you with detailed prices.
1. Simmons Spring Cone Crushers


A. Standard Symons cone crusher parameters

Model	Crush chamber diameter		Cavity Type	Feed port size (mm)		Discharge port size (mm)	Power (kw)	Weight (ton)	Capacity (t/h)
	ft	mm		small side	big side
PYS910	3	914	Fine	83	102	9-22	75	14.64	10-100
PYS917			Middle	159	175	13-38			55-180
PYS918			Coarse	163	178	25-38			105-180
PYS1313	4.25	1295	Fine	109	137	18-31	155	25.86	100-200
PYS1321			Middle	188	210	16-38			118-280
PYS1324			Coarse	216	241	19-51			155-384
PYS1325			Extra coarse	218	259	25-51			212-390
PYS1620	5.5	1676	Fine	188	209	16-38	240	50.8	162-360
PYS1624			Middle	213	241	22-51			232-460
PYS1626			Coarse	241	269	25-64			270-698
PYS1636			Extra coarse	331	368	38-64			388-745
PYS2127	7	2134	Fine	253	278	19-38	380	89.5	344-798
PYS2133			Middle	303	334	25-51			550-1098
PYS2136			Coarse	334	369	31-64			710-1398
PYS2146			Extra coarse	425	460	38-64			800-1498

B.Short cavity model symons cone crusher parameters ( make fine mateiral than standard model)

Model	Crush chamber diameter		Cavity Type	Feed port size (mm)		Discharge port size (mm)	Power (kw)	Weight (ton)	Capacity (t/h)
	ft	mm		small side	big side
PYS904	3	914	Fine	13	41	3-13	75	14.64	24-100
PYS906			Middle	33	61	3-16			24-100
PYS907			Coarse	51	76	6-19			54-140
PYS1306	4.25	1295	Fine	29	64	3-16	155	25.86	32-180
PYS1308			Middle	54	89	6-16			74-180
PYS1310			Coarse	70	105	8-25			98-250
PYS1313			Extra coarse	98	133	16-25			188-260
PYS1607	5.5	1676	Fine	35	70	5-13	240	50.8	82-230
PYS1608			Middle	54	89	6-19			120-310
PYS1613			Coarse	98	133	10-25			170-370
PYS1614			Extra coarse	117	163	13-25			228-370
PYS2110	7	2134	Fine	51	105	5-16	380	89.5	172-450
PYS2113			Middle	95	132	10-19			318-560
PYS2117			Coarse	127	178	13-25			408-658
PYS2120			Extra coarse	152	203	16-25			530-718

2. Single Hydraulic Cylinder Cone Crushers

Model	Cavity Type	Inlet size (mm)	Max feed size(mm)	min discharge			max discharge			Power (kw)	Weight (kg)
				stroke			stroke
GP100				16	22		16	22		90	6200
	A	150	120	11	16		40	36
	B	130	105	11	13		35	30
	C	100	85	8	10		32	31
GP200				18	25		18	25		200	10800
	A	220	180	16	20		34	32
	B	150	120	14	18		34	31
	C	80	60	10	11		32	29
GP300				25	32		25	32		250	15600
	A	230	190	20	25		45	40
	B	150	125	17	20		45	40
	C	80	60	10	13		40	35
GP400				25	32		25	32		250-280	16800
	A	230	190	24	32		52	48
	B	150	125	18	22		48	42
	C	80	60	12	14		42	36
GP500				25	32	40	25	32	40	315	23000
	A	230	180	21	25	31	48	43	38
	B	150	125	20	21	25	46	42	36
	C	100	60	11	13	15	38	34	29
GP600				34	42	50	34	42	50	355	27200
	A	280	220	23	27	32	46	36	32
	B	150	125	20	23	27	46	36	32
	C	100	80	13	15	17	36	32	26

Model	stroke	Tight Edge Discharge (mm) &Capacity (tph)
		8	12	16	20	25	30	35	40	45	50
GP100	16	32-38	48-58	58-68	68-78	78-86	95-108	108-120
	22	46-52	58-68	68-76	78-96	86-108	102-128	120-138
GP200	18	68-78	78-92	86-106	102-126	136-152	162-176	172-191
	25		92-112	112-128	128-156	162-178	186-211
GP300	25	103-122	111-136	131-158	152-178	178-199	199-228	228-257	256-288	280-309
	32	109-130	131-148	156-203	177-216	201-248	228-278	262-308	278-318	302-337
GP400	25	112-132	122-140	144-163	167-195	192-213	210-240	240-270	270-308	308-332
	32	121-132	152-170	170-192	192-230	230-270	270-293	293-315	315-330	330-358
GP500	25	112-132	132-158	148-172	161-189	185-230	225-268	258-296	292-350	350-390	390-450
	32		168-190	190-218	218-252	252-292	292-321	321-368	371-450	450-510
	40		185-203	211-252	252-278	308-336	336-378	378-415	418-530
GP600	34		211-232	232-261	261-288	281-323	323-371	382-422	422-455	455-498	498-560
	42		238-271	271-298	298-341	341-392	408-453	472-518	532-578	572-628
	50		282-311	318-352	358-392	407-455	455-511	511-565	565-612

3. Multi-Cylinder Cone Crushers

Model	Power (kw)	Cavity Type	Feed size(mm)	Discharge size (mm)	Capacity (tph)	Weight (kg)
GHP100	90	EF/F/M/C/EC	20-150	6-32	45-140	5400
GHP200	132	EF/F/M/C	25-185	10-38	90-250	10400
GHP300	200	EF/F/M/C/EC	25-233	10-45	115-440	15810
GHP400	315	EF/F/M/C/EC	30-299	10-51	140-630	23000
GHP500	355	EF/F/M/C/EC	35-335	10-51	175-790	33150
GHP800	600	F/M/C/EC	33-353	10-51	260-1200	64100
GHP3	220	EF/F/M/C/EC	18-200	8-45	94-388	17600
GHP4	315	EF/F/M/C/EC	67-237	8-45	135-555	25800
GHP5	370	EF/F/M/C/EC	50-312	8-45	158-600	28820
GHP6	450	EF/F/M/C/EC	52-328	10-45	200-790	45400

In order to overcome the impact of the environment on the work, we can also install crushers, feeders, conveyor belts and other equipment on the axle to make a mobile crushing production line, which not only solves the problem for customers but also improves the efficiency of their production lines.
