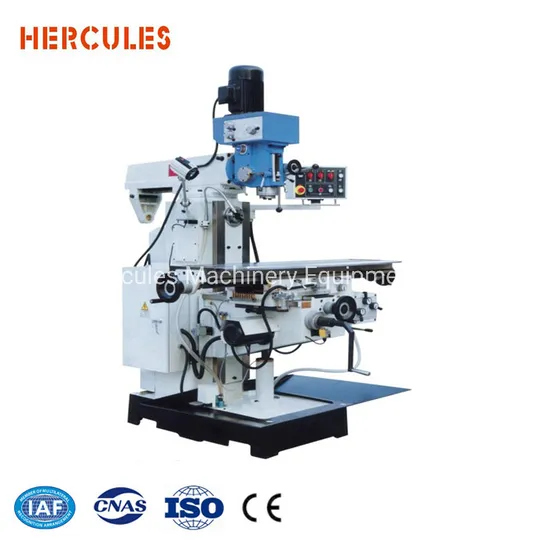

Horizontal and Vertical available Universal Milling Drilling machine
| US$4,500.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350CW
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Process type
Horizontal and Vertical cutting or drilling
Transport Package
Wood Pallet
Specification
1900*1750*2230
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000/Year
Product Description
Universal Milling Machine, Horizontal and Vertical Milling MachineThis milling machine is a kind of universal light duty metal processing machine,
two functions of vertical and horizontal mills, it could proceed on medium or small parts of the plane, inclined plane, groove and spline, etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specification:
| Spindle taper | ISO40(V,H) |
| Distance from spindle nose to table | 90-410MM |
| Distance from horizontal spindle to table | 0-300mm |
| Disance from spindle to column | 200-700mm |
| Spindle speed range | 8 steps 115-1750(V) r/min |
| 12 steps 40-1300(H) r/min | |
| Spindle travel | 120mm |
| Max. Drilling dia. | M16 mm |
| Head movement | deg ±45 |
| Table size | 1120*280mm |
| Table travel X/Y/Z | 600/260/300mm |
| Max.weight of workpiece | 200kg |
| T-slot number/width/distance | 3/14mm/70mm |
| Slide way X/Y/Z | all dovetails |
| Power for main motor | 0.85/1.5KW(V) |
| 2.2KW(H) | |
| X axis driving motor | 370w |
| Coolant pump power | 40w |
| Overall dimensions | 1660*1340*2130mm |
| N.W/G.W | 1250/1350KGS |
