H20series M2m TCP IP RS232 RS485 Scada Meter 3G HSPA Modem

Product Description

Product Description

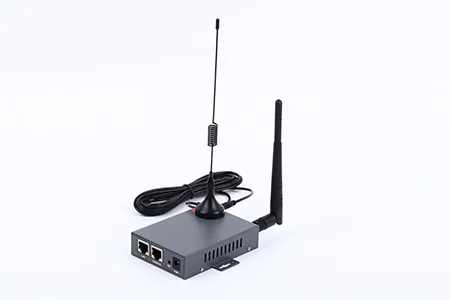

H20series cellular router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.
This series of products use high performance industrial 32 bit communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, it's a wireless router with 2 Ethernet port RJ45 and communication serial port.
It can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Features:
Industrial robust design and compact metal housing
Strong electromagnetic interference Resistance, heat endurance and radiation ability
Support FDD/TDD-LTE 4G network, 3G and 2.5G backward compatible
Support multiple VPN (PPTP, L2TP, GPE, IPSec etc.)
Support multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
Support multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
2 Antenna interfaces, 1 GSM+ 1 Wi-Fi/GPS
2 Ethernets, 2 LAN or 1 LAN + 1 WAN
WAN port support PPPoE, static IP, DHCP client.
Built-in watch dog, Multi-link detection ensure working in stable and security way
Always online, reboot automatically if disconnected to ensure continual connection
Support APN and VPDN wireless private network access in
LCP/ICMP/flow/heartbeat check, ensure network usability
Web/CLI/SSH/Management platform support, easy configure
SNMP network management, NTP support
Local & remote management (configuration, status, upgrade firmware)
Supports Port forwarding and Bridge
Supports timing operation
Supports LED status indication
Shock and vibration resistant
Advanced:
MIMO Antenna for LTE 300Mbps optional
802.11b/g/n Wi-Fi optional, 150Mbps standard, 300Mbps optional
Dual-redundancy between WAN links: Ethernet, 3G/4G and Wi-Fi backup
GPS capability optional for fleet management or other tracking application
DTU serial communication function optional (rs232/rs485)
OpenVPN Optional
PPTP Sever optional
AT command optional
Control by SMS optional
Schedule reboot optional
Customized and OEM/ODM acceptable
Details

Features and Benefits	1.Design for Industrial Application 2.High-powered industrial cellular module 3.High-powered industrial GPS module 4.High-powered industrial 32 bits CPU 5.Support low power consumption mode, including multi-sleep and trigger modes to reduce the power dissipation farthest 6.Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function 7.Housing: Iron, providing IP30 protection 8.Power range: DC 5~26V
Stability and Reliability	1.Support hardware and software WDT 2.Support auto recovery mechanism, including online detect, auto redial when offline to make it always online 3.RS232/RS485/RS422 ports: 15KV ESD protection 4.SIM/UIM port: 15KV ESD protection 5.Power port: Reverse-voltage and overvoltage protection 6.Antenna port: Lightning protection(optional)
Standard and Convenience	1.Adopt terminal block interface, convenient for industrial application 2.Support standard RS232/RS485/RS422 ports that can connect to serial devices directly. 3.TTL logic level RS232 interface can be customized 4.Support intellectual mode, enter into communication state automatically when powered 5.Provide management software for remote management 6.Support several work modes 7.Convenient configuration and maintenance interface
High-performance	1. Support TCP server and support multi TCP client connection(optional) 2.Support double data centers, one main and another backup 3.Supply 5 I/O channels, compatible 2 pulse wave output channels, 2 analog inputs and one pulse input counters. 4.Support multi data centers and it can support 5 data centers at the same time 5.Support multi online trigger ways, including SMS, ring and data. 6.Support link disconnection when timeout 7.Support dynamic domain name(DDNS) and IP access to data center 8.Design with standard TCP/IP protocol stack 9.Support APN/VPDN
Cellular Specification	1.Cellular Module Industrial cellular module 2.Standard and Band UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz 3.GPRS/EDGE CLASS 12 4.Bandwidth HSUPA: 5.76Mbps(Upload speed)/ HSDPA: 7.2Mbps(Download speed)/UMTS: 384Kbps (DL/UL) 5.TX power <24dBm 6.RX sensitivity <-109dBm
GPS Specification	1.GPS Module Industrial GPS Module 2.Receiver Type 50 Channels 3.GPS L1(1575.42MHz)C/A Code 4.SBAS: WAAS, EGNOS, MSAS, GAGAN 5.Compatible: GALILEO 6.Maximum Navigation Update Rate 4 Hz 7.Horizontal position accuracy Autonomous: 2.5m CPE 8.SBAS: 2.0m CPE 9.Time-To-First -Fix Cold Start(Autonomous): 29S 10.Warm Start(Autonomous): 29S 11.Aided Starts: <1S 12.Hot Starts(Autonomous): <1S 13.Sensitivity Tracking & Navigation: -160dBm 14.Reacquisition: -160dBm 15.Cold Start(Autonomous): -144dBm 16.Timing Accuracy RMS: 30ns 17.99%: <60ns 18.Granularity: 21ns 19.Time Pulse Frequency Configurable 0.25Hz to 1000Hz
