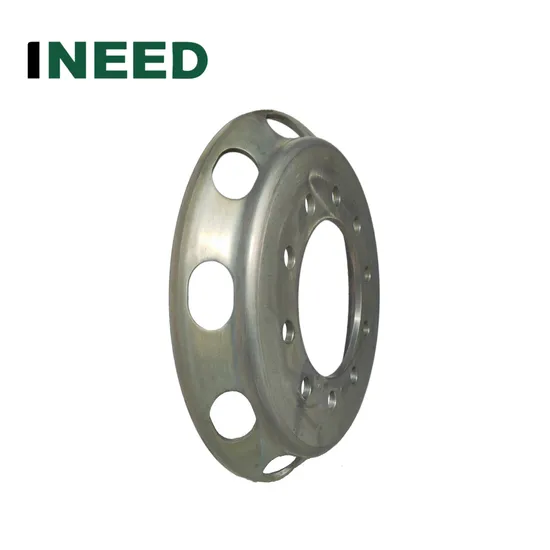

Agricultural Industrial Implement Truck Wheel Rim Plate Disc Od590 mm
| US$20.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
wheel disc plate
Material
Steel
Type
Wheel Disc
Drive Wheel
4WD
Wheel Hub Diameter
21-24"
Certification
ISO, CE, TUV, DOT
Transport Package
Pallets
Specification
20′GP
Trademark
INEED or Customization
Origin
China
HS Code
870870
Production Capacity
10000000/Year
Product Description
| Wheel Rim Plate/Disc Parameters | ||||||
| Unit (mm) | ||||||
| Part No. | Thickness | P.C.D. | Center hole | Number of Bolt Holes | Bolt Hole DIA. | Hole Type |
| A01 | 16,14,12 | 335 | 281 | 10 | 26 | 1x45° |
| A02 | 16,14,12 | 335 | 281 | 10 | 26 | Single SR18 |
| A03 | 16,14,12 | 335 | 281 | 10 | 26 | Dual SR18 |
| A04 | 16,14,12 | 335 | 281 | 10 | 27 | Single SR18 |
| A05 | 16,14,12 | 335 | 281 | 10 | 27 | Dual SR18 |
| A06 | 16,14,12 | 335 | 281 | 10 | 27 | 1x45° |
| A07 | 14,12,10 | 225 | 176 | 10 | 27 | 1x45° |
| A08 | 14,12,10 | 225 | 176 | 10 | 27 | Single SR18 |
| A09 | 14,12,10 | 225 | 176 | 10 | 27 | Dual SR18 |
| A10 | 14,12,10 | 225 | 176 | 10 | 26 | 1x45° |
| A11 | 14,12,10 | 225 | 176 | 10 | 26 | Single SR18 |
| A12 | 14,12,10 | 225 | 176 | 10 | 26 | Dual SR18 |
| A13 | 14,12,10 | 225 | 176 | 10 | 21.5 | 1x45° |
| A14 | 14,12,10 | 225 | 176 | 10 | 21.5 | Single SR16 |
| A15 | 14,12,10 | 225 | 176 | 10 | 21.5 | Dual SR16 |
| A16 | 16,14,12 | 335 | 281 | 10 | 23.5 | 1x45° |
| A17 | 14,12,10 | 225 | 176.8 | 10 | 26.5 | Dual SR22-32 |
| A18 | 14,12,10 | 225 | 176 | 10 | 23 | 1x45° |
| A58 | 16,14,12 | 335 | 281 | 10 | 26 | Dual SR80° |
| A67 | 16,14,12 | 335 | 291 | 10 | 26 | SingleSR18 |
| A68 | 16,14,12 | 335 | 291 | 10 | 27 | SingleSR18 |
| A82 | 16,14,12 | 335 | 281 | 10 | 24 | 1x45° |
| B16 | 16,14,12 | 285.75 | 221 | 10 | 32.5 | Dual SR22 |
| B77 | 16,14,12 | 285.75 | 220 | 10 | 27 | Dual SR22-37.5 |
| B84 | 16,14,12 | 285.75 | 221.5 | 10 | 30 | Dual SR22 |
| C17 | 16,14,12 | 285.75 | 220 | 10 | 26 | 1x45° |
| C18 | 16,14,12 | 285.75 | 220 | 10 | 24 | 1x45° |
| C60 | 16,14,12 | 285.75 | 220 | 10 | 26 | Dual SR18 |
| C61 | 16,14,12 | 285.75 | 220 | 10 | 27 | Single SR18 |
| C79 | 16,14,12 | 285.75 | 224 | 10 | 20.6 | 1x45° |
| C80 | 16,14,12 | 285.75 | 220 | 10 | 27 | Dual SR22 |
| C91 | 16,14,12 | 285.75 | 220 | 10 | 20.6 | 1x45° |
| C92 | 16,14,12 | 285.75 | 221.2 | 10 | 20.6 | 1x45° |
| D18 | 16,14,12 | 275 | 221 | 8 | 21.5 | 1x45° |
| D19 | 16,14,12 | 275 | 221 | 8 | 21.5 | Single SR16 |
| D20 | 16,14,12 | 275 | 221 | 8 | 21.5 | Dual SR16 |
| D21 | 16,14,12 | 275 | 221 | 8 | 24.5 | 1x45° |
| D22 | 16,14,12 | 275 | 221 | 8 | 24.5 | Single SR18 |
| D23 | 16,14,12 | 275 | 221 | 8 | 24.5 | Dual SR18 |
| D24 | 16,14,12 | 275 | 221 | 8 | 25.4 | 1x45° |
| D25 | 16,14,12 | 275 | 221 | 8 | 25.4 | Single SR18 |
| D26 | 16,14,12 | 275 | 221 | 8 | 25.4 | Dual SR18 |
| D27 | 16,14,12 | 275 | 221 | 8 | 25.4 | SR80° |
| D28 | 16,14,12 | 275 | 221 | 8 | 26 | 1x45° |
| D29 | 16,14,12 | 275 | 221 | 8 | 26 | Single SR18 |
| D30 | 16,14,12 | 275 | 221 | 8 | 26 | Dual SR18 |
| D31 | 16,14,12 | 275 | 221 | 8 | 27 | 1x45° |
| D32 | 16,14,12 | 275 | 221 | 8 | 27 | Single SR18 |
| D33 | 16,14,12 | 275 | 221 | 8 | 27 | Dual SR18 |
| D34 | 16,14,12 | 275 | 214 | 8 | 26 | 1x45° |
| D83 | 16,14,12 | 275 | 221 | 8 | 24 | Dual SR16-27 |
| D84 | 16,14,12 | 275 | 221 | 8 | 24 | Single SR16-29 |
| D85 | 16,14,12 | 275 | 221.6 | 8 | 20 | 1x45° |
| D87 | 16,14,12 | 275 | 221 | 8 | 32 | Dual SR22-37 |
| D88 | 16,14,12 | 275 | 221 | 8 | 32.5 | Dual SR22-37.5 |
| E35 | 14,12 | 275 | 214 | 8 | 32.5 | Dual SR22 |
| F36 | 16,14,12 | 285 | 221 | 8 | 32.5 | Dual SR22 |
| F37 | 16,14,12 | 285 | 223 | 8 | 32 | Dua lSR22 |
| G36 | 14,12,10 | 222.25 | 164 | 6 | 32.5 | Single SR22 |
| G37 | 14,12,10 | 222.25 | 164 | 6 | 32.5 | Dual SR22 |
| G38 | 14,12,10 | 222.25 | 164 | 6 | 26 | 1x45° |
| G39 | 14,12,10 | 222.25 | 161 | 6 | 24 | 1x45° |
| G62 | 14,12,10 | 222.25 | 164 | 8 | 32.5 | Dual SR22 |
| G63 | 14,12,10 | 222.25 | 164 | 8 | 29 | Dual SR22 |
| G65 | 14,12,10 | 222.25 | 163 | 6 | 32.5 | Dual SR22 |
| G66 | 14,12,10 | 222.25 | 165.1 | 6 | 32.5 | Dual SR22 |
| G89 | 14,12,10 | 222.25 | 164 | 6 | 24 | 1x45° |
| G90 | 14,12,10 | 222.25 | 164 | 8 | 24 | 1x45° |
| H39 | 12,10 | 190 | 140 | 6 | 20.5 | Single SR18 |
| H40 | 12,10 | 190 | 140 | 6 | 21.5 | 1x45° |
| H41 | 12,10 | 190 | 140 | 6 | 21.5 | Dual SR22 |
| H42 | 12,10 | 205 | 161 | 6 | 26 | 1x45° |
| H43 | 12,10 | 205 | 161 | 6 | 21.5 | 1x45° |
| H44 | 12,10 | 205 | 161 | 6 | 21.5 | Single SR16 |
| H45 | 12,10 | 205 | 161 | 6 | 21.5 | Dual SR16 |
| H46 | 12,10 | 245 | 202 | 6 | 21.5 | Single SR16 |
| H47 | 12,10 | 245 | 202 | 6 | 21.5 | Dual SR16 |
| H48 | 12,10 | 245 | 202 | 6 | 21.5 | 1x45° |
| H49 | 12,10 | 205 | 161 | 6 | 16 | 1x45° |
| H50 | 12,10 | 205 | 161 | 6 | 22 | 28.5 |
| H51 | 12,10 | 205 | 153 | 8 | 17.5 | Single3X45° |
| H52 | 12,10 | 245 | 202 | 6 | 19 | 1x45° |
| H53 | 12,10 | 205 | 151 | 5 | 32 | Dual SR90°-37.5 |
| H56 | 12,10 | 205 | 161 | 6 | 25.4 | Single SR18 |
| H59 | 12,10 | 205 | 161 | 6 | 18 | 1x45° |
| H60 | 12,10 | 205 | 161 | 6 | 18.5 | SR14-24 |
| H61 | 12,10 | 161 | 102 | 6 | 15 | 1x45° |
| H70 | 12,10 | 205 | 161 | 6 | 24 | Single SR18 |
| H71 | 12,10 | 205 | 161 | 6 | 27 | Single SR18 |
| H72 | 12,10 | 222 | 165 | 6 | 21 | 1x45° |
| H73 | 12,10 | 205 | 161 | 8 | 21.5 | 1x45° |
| H87 | 12,10 | 205 | 161 | 6 | 26 | Single SR18 |
| H96 | 12,10 | 205 | 161 | 6 | 21.5 | Dual SR18-29 |
| J49 | 12,10 | 203.2 | 146 | 5 | 32.5 | Dual SR22 |
| J50 | 12,10 | 203.2 | 146 | 5 | 29 | Dual SR22 |
| J60 | 12,10 | 203.2 | 152.4 | 8 | 18 | Single SR14 |
| J61 | 12,10 | 203.2 | 145 | 6 | 20 | 1x45° |
| K01 | 12,10 | 203.2 | 152 | 8 | 17.5 | 1x45° |
| K02 | 12,10 | 203.2 | 150 | 5 | 29 | Dual SR22 |
| K03 | 12,10 | 203 | 150 | 5 | 32.5 | Dual SR22 |
| K04 | 12,10 | 203 | 150 | 5 | 21.5 | Single SR16 |
| K05 | 12,10 | 203.2 | 154.2 | 8 | 16 | Dual SR22 |
| K06 | 12,10 | 203.2 | 152.4 | 8 | 16.7 | 1x45° |
| K07 | 12,10 | 152.4 | 117.7 | 6 | 16 | 1x45° |
| K50 | 12,10 | 208 | 150 | 5 | 27 | Single SR18 |
| K51 | 12,10 | 203.2 | 146 | 8 | 17 | SR14 |
| K52 | 12,10 | 208 | 150 | 5 | 32.5 | Dual SR22 |
| K53 | 12,10,8 | 170 | 130 | 6 | 21.5 | 1x45° |
| K54 | 12,10,8 | 170 | 130 | 6 | 21.5 | Single SR14 |
| K55 | 12,10,8 | 170 | 130 | 6 | 21.5 | Dual SR14 |
| K56 | 12,10 | 208 | 150 | 5 | 23 | 1x45° |
| K57 | 12,10 | 203.2 | 152.4 | 8 | 16.6 | SR90°-22 |
| K58 | 12,10 | 203.2 | 152.4 | 8 | 18.5 | Single SR90°-24 |
| K62 | 12,10 | 203.2 | 152.4 | 8 | 16.5 | Single SR90°-21 |
| K63 | 12,10 | 203.2 | 152.4 | 8 | 16.5 | Dual SR90°-21.4 |
| K64 | 12,10 | 203.2 | 152.4 | 8 | 16.5 | Dual SR90° |
| K65 | 12,10 | 203.2 | 152.4 | 6 | 14.7 | Single SR90° |
| K66 | 12,10 | 203.2 | 152.4 | 8 | 17.2 | Single SR90°-23.8 |
| K69 | 12,10,8 | 170 | 133 | 6 | 17.5 | 1x45° |
| K74 | 12,10 | 203.2 | 152.4 | 8 | 16.4 | Dual SR90°-22 |
| K75 | 12,10 | 203.2 | 152.4 | 8 | 16.4 | Dual SR90°-23 |
| K76 | 12,10 | 203.2 | 152.4 | 8 | 16.4 | SingleSR90°-23 |
| K78 | 12,10 | 203.2 | 152.4 | 8 | 17.5 | Single SR90°-23 |
| K80 | 12,10 | 203.2 | 152.5 | 8 | 16.7 | 1x45° |
| K81 | 12,10 | 203.2 | 152.4 | 8 | 16.7 | Single SR90°-22 |
| K86 | 12,10 | 203.2 | 152.4 | 8 | 22 | 1x45° |
| K93 | 12,10 | 203.2 | 152.4 | 8 | 16.6 | Single SR90°-20.5 |
| K94 | 12,10 | 203.2 | 152.4 | 8 | 16 | Single SR60°-21 |
| K95 | 12,10 | 170 | 133 | 6 | 17.5 | 1x45° |
| K97 | 12,10,8 | 152.4 | 117.7 | 6 | 14.7 | Single SR90°-18.5 |
| K98 | 12,10,8 | 152.4 | 117.7 | 6 | 16 | Single SR90°-20 |
| K99 | 12,10 | 203.2 | 146 | 5 | 34 | Single SR22-37 |
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process:
Wheel Disc / Plate manufacturing process: New Laser Cutting Machines
Wheel Disc / Plate : All Kinds of Products:
Wheel Disc / Plate : Products Packing and Loading
Wheel Disc / Plate : Reserch and Developing and Qaulity Control
