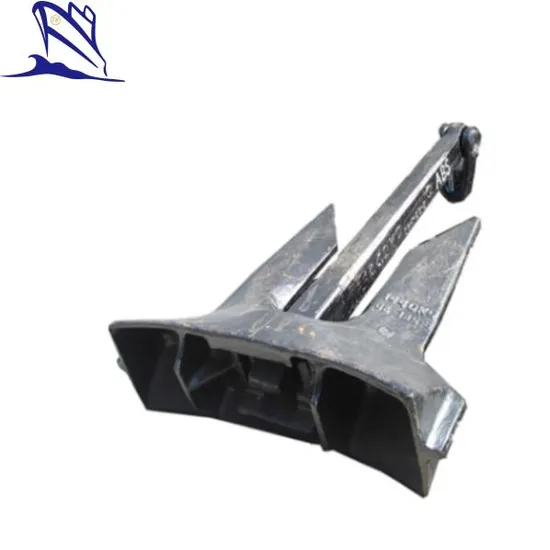

AC-14 Marine Cast Steel Hhp Stockless Anchor for Ship

Product Description

AC-14 Marine Cast Steel HHP Stockless Anchor For Ship Product Parameters

Nominal Weight(KG)	Size(mm)
	A	L	H	C	C1	B
30	491	440	136	299	85	236
45	590	529	164	359	99	283
75	677	605	188	411	122	324
113	745	666	207	452	135	357
180	904	811	251	550	157	434
270	1035	929	287	630	180	497
360	1139	1022	316	694	198	547
428	1194	1071	331	727	206	574
585	1360	1221	378	828	236	654
675	1398	1254	387	851	242	672
765	1483	1304	404	885	264	698
855	1520	1363	423	925	267	729
968	1590	1425	440	968	275	764
1080	1631	1462	451	993	282	784
1193	1660	1490	465	1011	287	798
1305	1761	1580	488	1072	305	846
1575	1855	1665	514	1130	321	892
1845	1940	1741	538	1182	336	933
2295	2089	1874	579	1272	362	1004
2835	2253	2022	624	1372	390	1083
3668	2451	2200	680	1493	424	1178
4838	2688	2412	745	1637	465	1292
5513	2808	2520	778	1710	486	1350
6225	2923	2623	810	1780	506	1405
7425	3100	2782	859	1888	537	1490
8775	3278	2942	909	1996	567	1576
9675	3386	3039	939	2062	586	1628
10125	3438	3085	953	2094	595	1653
11550	3592	3224	996	2188	622	1727
12675	3705	3325	1027	2256	641	1781
13350	3770	3383	1045	2296	653	1812
14100	3839	3445	1064	2338	665	1846
15000	3919	3517	1086	2387	678	1884
17250	4106	3685	1138	2501	711	1974
18375	4194	3763	1163	2554	726	2016
19500	4278	3839	1186	2605	740	2056

Product Description
Marine anchors mainly consist of anchor crown, pin shaft, anchor claw, anchor handle, anchor rod (also known as crossbar or stabilizer rod), and anchor shackle.
1.Throwing method for the marine anchor
(1) There are two types of bow throwing anchor : throwing single anchor and throwing double anchor.In general,just throwing a single anchor can be used to secure the ship, Only when the wind and waves are particularly strong and the anchorage is too narrow, it need throw the double anchors.
The bow throwing anchor is the main method of throw anchor for berthing, and it is also the main reason why the main anchor is arranged at the bow of the ship.
(2) Throwing Anchor at the stern is commonly used for inland vessels and landing boats. When inland vessels are sailing downstream and berthing, they often use stern throwing anchor to ensure safety and avoid turning around.
(3) Throwing anchor at the bow and stern,When the ship is subjected to cycles of rising and falling tides, and the moving water area is restricted, and in certain special circumstances, it is used.
2.The type for the marine anchor:
(1) Stocked anchors - Anchors with crossbars are stocked anchors (admiralty anchors, single fluke anchors, Japanese stocked anchors, etc.).
(2) Stockless anchors - without crossbar and two jaw anchor with rotating anchor claws. (Hall anchor, Spek anchor, tail wing anchor, AC-14 anchor, DA-1 anchor)
(3) HHP(High Holding Power anchor) - (Stockless: AC-14 anchor, DA-1 anchor, Stocked: Matrosov or Stevin anchor, Danforth anchor,etc.).
(4) Special anchors.
