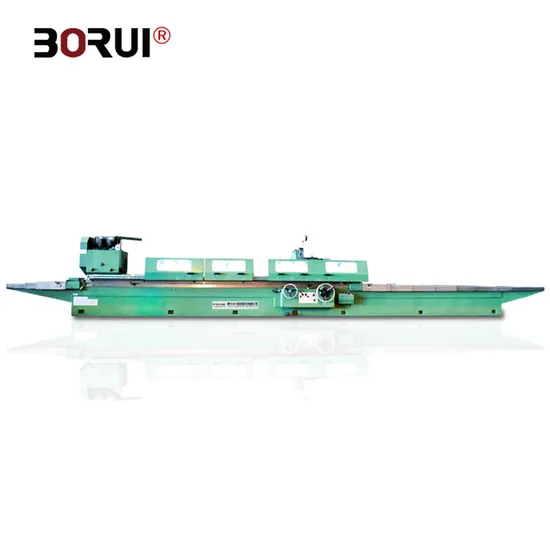

M1463 Heavy Duty Multi Moves Metal CNC Cylindrical Horizontal Grinding Machine
| US$79,358.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
M1463
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Cylindrical Grinder
Product Name
Hydraulic Cylindrical Grinding Machine
Function
Grinding
Application
Stainless Steel
Model
M1463
Color
Customized Optional
Useage
Button Bits Sharpening
Machine Type
ID Cylindrical Grinder
Machine Name
Cylindrical Grinder Machine
Transport Package
The Machine Willi Be Packed in Plywood Case.
Trademark
BORUI
Origin
Shan Dong
Production Capacity
200
Product Description
M1463 Metal Surface Universal Needle Cylinderical Grinding MachineProduct Description
Application:
This series of universal cylindrical grinders use electric and hydraulic interlocking mechanisms with various moving parts to ensure safe and reliable operation. It is suitable for grinding IT6-IT5 precision inner and outer cylindrical or conical rotating workpieces. It is suitable for single-piece small batch and batch production workshops.
STRUCTURAL FEATURES
The horizontal feed of wheelhead is driven by hydraulic pressure to realize micro automatic periodic feed and fast advance and regress.Also can do manually rough fine feeding.
M1350, M1450, M1363 series table and wheelhead guide rail adopt static guide rail, low speed motion is stable.M1350, M1450, M1363 series wheelhead with high rigid spindle, high rotary precision, good rigidity. The workhead adopts frequency converter to realize stepless speed regulation.
Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt to chuck grinding internal and external conical workpiece.Product main technical parameters:
| Model | MW1420 | M1432B | M1450 | M1463 | |
| Distance between centers | 500, 750mm | 1000, 1500, 2000 | 1500,2000,3000 | 3000,4000,5000 | |
| Center height | 135mm | 180 | 270 | 335 | |
| Dia. Ground (O.D) | 5~200mm | 8~320 | 25~500 | 30~630 | |
| Dia. Ground (I.D) | 25~100mm | 30~100 | 30~200 | 30~200 | |
| Max. Length ground (O.D) | 500, 750mm | 1000, 1500, 2000 | 1500,2000, 3000 | 3000,4000, 5000 | |
| Max. Length ground (I.D) | 100mm | 125 | 320 | 320 | |
| Max. weight of workpiece | 100kg | 150 | 1000 | 3000 | |
| Swiveling angle | +90 degree | +90 degree | +90 degree | +90 degree | |
| Center taper (MT) | 4MT | MT4 | MT6 | MT6 | |
| Spindle speed | 50HZ: 25 - 380r/min | 50HZ: 25-220r/min | 50HZ: 20 - 224r/min | 50HZ: 8 - 150r/min | |
| Wheel Spindle speed | 1670rpm | 1670 | 1330/665 | 740 | |
| Swiveling angle | +30 degree | +30 degree | +30 degree | +30 degree | |
| Wheel Size Max. dimension of wheel (OD x W x ID) | 400 x 50 x203mm | 400 x 50 x203mm | 500x75x305mm | 900x75x305mm | |
| Max. Swiveling angle | Clockwise | 3 degree | 3 degree | 3 degree | 2 degree |
| Anticlockwise | 7degree(1000)6degree | 7degree(1000) 6degree(1500) | 6degree(1500) 5degree(2000) | 3degree(3000) 2degree(4000) | |
| Roundness | 0.003mm | 0.003 | 0.005 | 0.005 | |
| Cylindricity | 0.005mm | 0.005 | 0.008 | 0.008 | |
| Roughness | 0.2Ra | 0.2 | 0.32 | 0.32 | |
