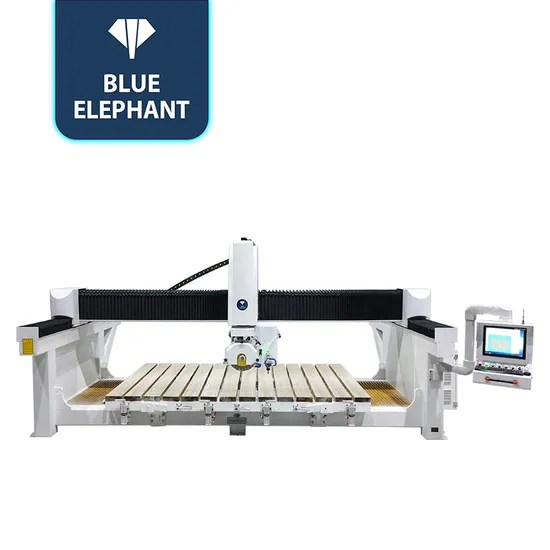

Economical 4+1 CNC Bridge Saw 4 Aixs Marble Stone Bridge Saw Machine

Product Description

Product Description
Advantages
1. The economical 4 axis 4+1 CNC bridge saw can realize cross cutting, vertical cutting, bevel cutting, rhombus cutting, circle cutting, oval cutting, 45° chamfering, under-counter basin and in-counter basin cutting, etc. However, edge grinding and polishing are not supported.
2. The diameter of the 4+1 stone CNC bridge saw blade is 350mm and the 4+1 stone CNC bridge saw spindle speed is 24000rpm/min. So it can realize the maximum cutting thickness of 80mm. Moreover, the spindle and saw blade can work alternately without affecting each other.
3. Use Blue Elephant customized control system and imported parts to ensure high-precision processing and smooth operation of the 4-axis 4+1 marble CNC bridge cutting saw.
4. High-power saw blade motor, size and voltage of the economical 4+1 quartz bridge saw machine can be customized and upgraded.
Detailed Photos
Technical parameters

4+1 CNC Bridge Saw Machine
Travel	3 axis	3200*2000*400mm
	C axis	±360°
	A axis	0/45°
Speed	X axis	30mmin
	Y axis	30mmin
	Z axis	10mmin
Servo motor	X axis,Y axis	2KW HANYU absolute value servo motor
Guide	Y axis	Taiwan 30#
	X axis	Taiwan 30#
	Z axis	Taiwan 30#
Worktable	Structure	squared timber
	Size	3200×2000mm
	Flip angle	0-85°
	Reverse weight	800KG
Saw blade	Size	360mm
	Maximum thickness	60mm
Screw	Z axis	3210
Rack	X axis,Y axis	2M
Reducer	X/Y axis SHIMPO reducer
Saw blade motor	15KW Saw blade motor (2930r/min)
Inverter	18.5KW Fuling inverter
Controller	Blue Elephant customized control system
Air Pressure	0.6-0.8Mpa
Voltage	380V/3P/50HZ
Machine size	5.36m×3.3m×2.41m
Machine weight	3.5t

Sample & Application
Exhibition
Certifications
Our Service
Guarantee and After-sale service:
1. 12 months warranty for the whole machine.
2. Technical support by phone, email or WhatsApp/Skype around the clock.
3. Friendly English version manual and operation video CD disk.
4. Engineer available to service machinery overseas.
Company Profile
Jinan Blue Elephant CNC Machinery, the professional cnc router and laser cutting machine manufacturer in China, include ATC CNC router, Wood CNC Router, Stone CNC Router, Metal CNC Router, EPS CNC Router, 4 Axis CNC Router, 5 Axis CNC Router, Plasma Cutting Machine, Laser Cutting and Engraving Machine and so on, which have passed the CE, SGS, ISO9001 etc. Our cnc routers are widely used for advertising, woodworking, mould, stone, metal industry.
Packaging & Shipping
Packaging Details
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment
FAQ:
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters
2. Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminum, Copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easliy, so welcome to visit to our factorv.
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to payd the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non- Standard machine and customized machines according to clients specific requirements, it will be 15 to 30 days.
