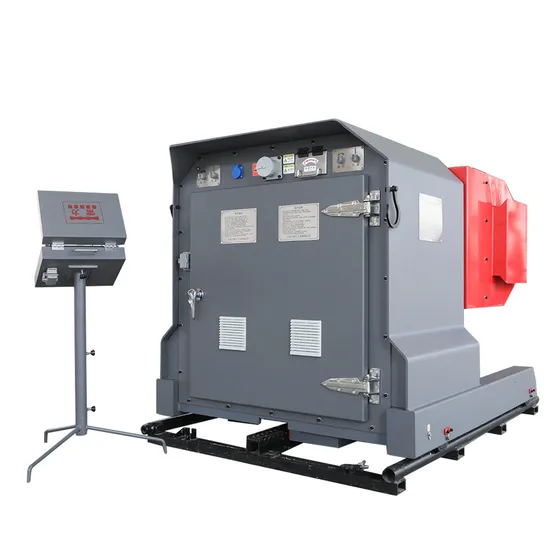

Leili 65kw Permanent Magnet Diamond Wire Sawing Machine for Marble/Granite Mining and Quarrying/Stone Quarrying

Product Description

★★★On the basis of the original ordinary wire saw machine, the main motor was replaced with a permanent magnet motor, and the control
software was updated too.
★★★Permanent magnet motor can achieve full torque output at low frequency, low- speed starting saw is more stable, and high-speed cutting efficiency is higher.
★★★It can improve the cutting efficiency by more than 15% compared to ordinary motors.

Double frequency converters and PLC ensure auutomaticlly adjustment of moving speed, in order to keep the wire be in the best wcrking conditionNo need to distinguish or chang the power phase, the machine has over-load protection, lcking phose proteclionand terminal limit protection.The lateral moving and the rotation of head are controlled by electric motor, Photoelectric pГroximity switch installedon the head for limitation protection.Control plotform display the key pararameters such as the main motor set current, rotation speed of main motor, etc.Two operoting mode, monul and automatic, can be shifted. At the same time, remote control device can be selected, which can be used for remote control operation ,and one person can operate multiple devices.
Technical Information

Moter Power	65KW
Rated Voltage	AC380V±10-50HZ
Wire Saw Speed	0-37m/s
Diameter of Driving Wheel	500mm
Diameter of Guiding Wheel	380mm
Traveling Speed	0-80m/h
Rotation Angle	360°
Working Temperature	-10-50ºC
Dimension of Track	2000mm*1280mm
Dimension of Machine	1870mm*1400mm*1400mm
Net Weight	2.8T

Packing,Lead time and Delivery
1, Packing: wooden case;
2,Lead time:
5 days for samples
10-15days for batch orders.
3,Delivery :By Air Cargo or by ship.
Exhibition
Company Introduction SHIJIAZHUANG LELI TOOLS CO.,LTD was established in 2009,and evolved from a small factory to the trusted global business we are today.With over 13 years of innovation and passion,LEILI TOOLS provides construction and stone professionals with support ,service and a wide range of machines,diamond tools and all accessories that you need to cut,saw,drill,demolish,grind and polish concrete or stone.
By 2022,LEILI TOOLS now is with 120 competent and engaged people, manufacturing and supplying 80000 meters diamond wire,100 sets of wire saw,wall saw and coring machines and other diamond tools every month.LEILI keeps investing heavily in researching and development,modern machinery equipment,and quality control system to make sure our products meet the hign performance of usability,safety,consistently, and to make you ready to get the job done efficiently.
Our aim is to facilitate the work of the professional concrete and stone operators by offering the safest,highest quality,and profitable products for construction and stone industry by continue bringing innovative products the market.
What Are We Focus On
- SAFE
LEILI always put safety as the first consideration. Our diamond wires use injected synthetic rubber and springs for the assembly. The synthetic rubber used our own research and development high quality rubber for reinforcement, which has a strict quality control system and testing method, that could increase the safety classes of wire saw , as well as minimize the risk of uneven
wear to the wire beads.
-EFFICIENT
LEILI wire saw has excellent formula design, thoughtful customized service and high quality manufacturing process and equipment, so as to ensure the wire saw cutting efficiency and stability.
-STABL
With more than 10 years of industry experience. LEILI have accumulated extensive knowledge of diamond bead design and quality control throughout the years. AIlI of these make our products have a stable quality assurance, has been recognized by the majority of customers.
Your working performance is always our concern.
