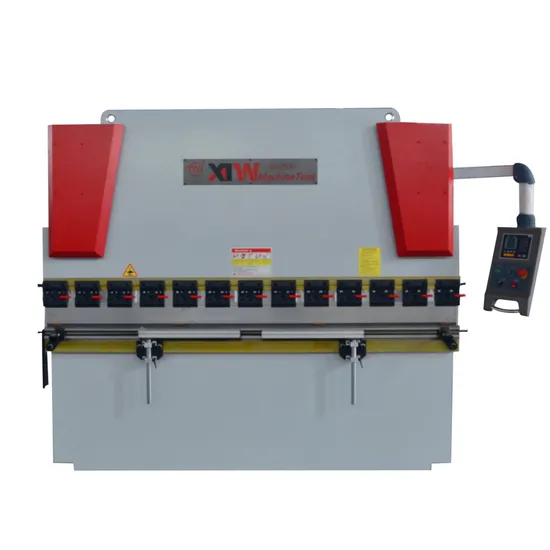

Wc67y/K-63/80t 2500 Bending Machine Hydraulic Press Brake with E21 Controller

Product Description

You may also like:
Product Parameters

Model	Press force	Bending length	Width between columns	Throat depth	Ram stroke	Stroke adjustment	Open height	Drive motor	Length	Width	Height	Weight (approx.)
	kN	mm	mm	mm	mm	mm	mm	kW	mm	mm	mm	kg
WC67Y-63/2500	630	2500	2050	250	100	75	345	5.5	2560	1725	2280	4400
WC67Y-63/3200		3200	2600						3260	1725	2280	5200
WC67Y-100/2500	1000	2500	2050	320	150	120	415	7.5	2650	1785	2460	6100
WC67Y-100/3200		3200	2600						3350	1785	2510	7000
WC67Y-100/4000		4000	3300						4150	1785	2560	7900
WC67Y-125/2500	1250	2500	2050	320	150	120	415	7.5	2650	1785	2540	6600
WC67Y-125/3200		3200	2600						3350	1785	2560	7300
WC67Y-125/4000		4000	3200						4150	1785	2610	8800
WC67Y-160/2500	1600	2500	2050	320	200	160	470	11	2560	1940	2660	9000
WC67Y-160/3200		3200	2600						3260	1940	2660	9600
WC67Y-160/4000		4000	3200						4060	1940	2660	11800
WC67Y-160/5000		5000	4000						5100	1940	2920	14000
WC67Y-160/6000		6000	4800						6100	1940	3200	17000
WC67Y-200/3200	2000	3200	2600	320	200	160	520	15	3500	1940	2660	12000
WC67Y-200/4000		4000	3200						4150	1940	2900	14800
WC67Y-200/5000		5000	4000						5150	2000	3100	18000
WC67Y-200/6000		6000	4800						6150	2000	3300	23000
WC67Y-250/3200	2500	3200	2600	400	250	200	560	18.5	3350	2000	2900	16000
WC67Y-250/4000		4000	3200						4150	2000	2970	21000
WC67Y-250/5000		5000	4000						5150	2000	3180	23800
WC67Y-250/6000		6000	4800						6150	2000	3300	27000
WC67Y-300/3200	3000	3200	2600	400	250	200	560	22	3350	2100	3100	18500
WC67Y-300/4000		4000	3200						4150	2100	3150	22000
WC67Y-300/5000		5000	4000						5150	2100	3420	26000
WC67Y-300/6000		6000	4800						6150	2100	3750	33500
WC67Y-400/3200	4000	3200	2600	400	300	250	630	30	3300	2260	3200	23000
WC67Y-400/4000		4000	3200						4150	2260	3400	29000
WC67Y-400/5000		5000	4000						5150	2260	3600	35000
WC67Y-400/6000		6000	4800						6150	2260	3800	38000
WC67Y-500/4000	5000	4000	3200	400	300	250	630	37	4150	2400	3600	40000
WC67Y-500/5000		5000	4000						5150	2400	3800	57000
WC67Y-500/6000		6000	4800						6150	2400	3900	59000
WC67Y-500/7000		7000	5600						7150	2400	4100	64000
WC67Y-600/4000	6000	4000	3200	400	300	250	630	45	4150	2500	4200	45000
WC67Y-600/6000		6000	4800						6150	2500	4800	68000

Certifications
Company Profile
NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.
