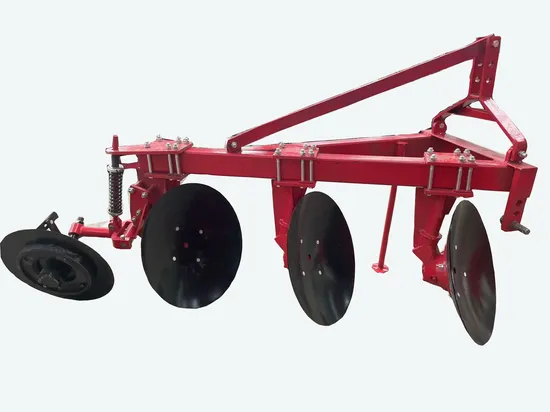

High Quality Farm Implement Disc Plough Disc Plow
| US$400.00-1,000.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
1LYT
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Tractor
Arbor Configuration
Vertical Shaft
Color
Custom Made
Warranty
1 Year
Transport Package
Iron Frame
Specification
420kg
Trademark
LEYUAN
Origin
Shandong China
HS Code
84321000
Production Capacity
5000set /Year
Product Description
Product DescriptionDisc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc .
Product Parameters
| Model | 1LYQ-220 | 1LYQ-315 | 1LYQ-320 |
| Width of cut (mm) | 400 | 450 | 600 |
| Depth of cut (mm) | 200 | ||
| Dia of disc (mm) | 510 | 460 | 510 |
| Q'ty of disc | 2 | 3 | 3 |
| Weight (kg) | 140 | 160 | 190 |
| Tractor power (hp) | 18 | 25 | 25-40 |
| Mounted cat | Mounted Cat I | ||
| Model | 1LY(T)-325 | 1LY(T)-425 | 1LY(T)-525 | 1LY(T)-625 |
| Width of cut (mm) | 750 | 1000 | 1250 | 1500 |
| Depth of cut (mm) | 250~300 | |||
| Dia of disc (mm) | 660 | |||
| Q'ty of disc | 3 | 4 | 5 | 6 |
| Weight (kg) | 420 | 490 | 565 | 640 |
| Tractor power (hp) | 50 | 90 | 120 | 160 |
| Mounted cat | Mounted Cat II | |||
Detailed Photos
Packaging & Shipping
