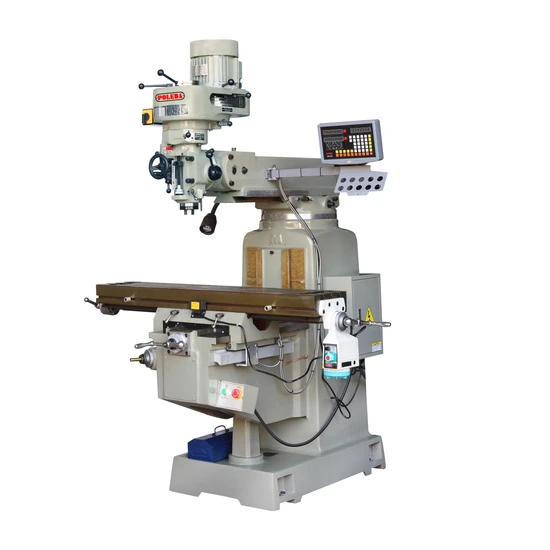

M4 (R8/NT30) Conventional Vertical Milling Machine Knee Type Turret Milling Machine

Product Description

Product Description
A milling machine is a versatile and essential machine tool that intricately carves material on a highly precise Machined part using a rotating tool. As a cornerstone in metal cutting processing, this machine excels at producing plane, surface, and gear parts. It can also perform drilling, reaming, boring, and a multitude of other complex processes with impeccable accuracy.
Basic Structure of the Milling Machine:
The fundamental structure of the milling machine comprises the bed, sliding table, workbench, horizontal shaft, column, beam, guide rail, motor, and various other integral components.
1. Bed: The bed acts as the foundational support of the milling machine, accommodating and securing various components. Typically cast for exceptional stability and robustness, the bed ensures the machine's durability and precision.
2. Slide Table: The slide table is a dynamic component of the milling machine, designed to glide seamlessly back and forth on the bed. It is paired with both a workbench and a horizontal shaft, facilitating precise positioning and processing of the Machined part by enabling the slide table's smooth movements.
3. Workbench: Serving as the operative platform of the milling machine, the workbench is tasked with gripping and securing the Machined part. It can deftly rotate, tilt, and perform other essential operations, ensuring the completion of intricate and multifaceted Machined parts. processing tasks.
Product Parameters
Structural Characteristics
1. The base, fuselage, workbench, middle slide seat, lifting slide seat, and other main components are meticulously cast using high-strength materials.
Undergoing artificial aging treatment, these components ensure the long-term stability and durability of the machine tool.
2. The milling head is equipped with a turret milling head. The main spindle supports both manual and micro feeding methods, enabling convenient and precise processing.
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane, significantly expanding the machine's machining range.
3. The vertical and horizontal tables offer three types of feeds: manual, mobile, and mobile fast feed, with the mobile feed providing 8 distinct speeds.
This versatility meets varied processing requirements, while the fast feed ensures the workpiece quickly reaches the machining position, reducing non-machining time.
4. The lifting platform's Z-lifting can be operated manually or maneuvered, with interlocking mechanisms to eliminate unsafe factors.
5. The table's X-direction travel extends up to 800mm. The X, Y, and Z direction guide pairs undergo ultra-audio quenching, precision grinding, and scraping treatment.
These treatments improve machine accuracy and significantly extend its service life.
6. The manual lubrication device ensures forced lubrication of the longitudinal, horizontal, and vertical lead screws and guide rails, reducing wear and ensuring efficient machine operation.
Simultaneously, the cooling system adjusts the coolant flow by changing the nozzle size to meet various processing needs.
7. The machine tool operating system is ergonomically suspended on the upper right side of the machine tool for ease of use.
The operation panel features intuitive, figurative symbols for straightforward and efficient operation.
8. The turret milling machine spindle offers flexibility with options for R8, NT30, or NT40.
9. An upgraded electrical box and controller are included, featuring 110V and 220V output sockets for improved functionality.

Product Name	Milling machine
Product model	3M/3S/4M/4S
Product technical parameters
dimension	Table size	1270*254MM
journey	Left and right stroke(X)	740MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	360MM
	Arm reach	520MM
	Distance from spindle end face to table surface	50-410MM
	Table bearing	300KG
Principal axis coefficient	Spindle taper	R8
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	3HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	Three-axis screw diameter	Tr32mm
	Three-axis lead screw pitch	5mm
Machine profile dimensions	T-slot (Number * Size * Spacing)	3-15.88*65MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1280kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1
Special parts for machine tools	7,Two axis electronic ruler	1
	8, X-axis automatic feed	1
	9, 6 "flat pliers	1
	Clamp plate	1
	11, chuck	1
