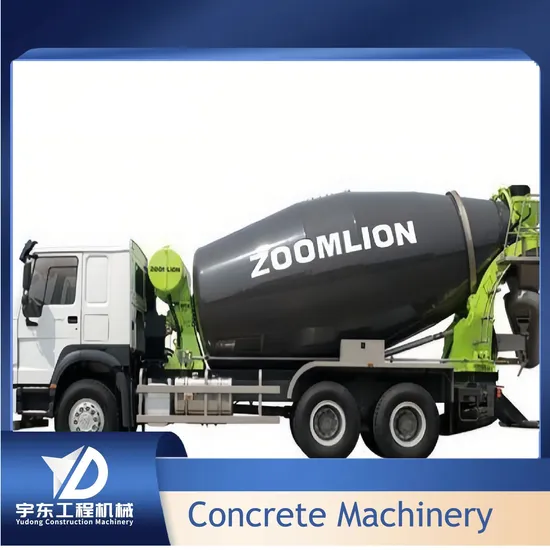

Zoomlion 9m3 Concrete Machine Mixer

Product Description

Product Description
• Double Logarithmic Variable Pitch Helical Mixer Blade: which enables higher charing and discharging speed and even mixing, eliminates segregation of concrete and is suitable for the transportation of both dry and wet materials.
• New T-shape Blade technology. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance.
• The geometric capacity of the agitator drum is very large and the filling rate is low, thus guaranteeing more mixing space. The small inclined angle and low center of gravity help reducing the possibility of turning-over of the truck.
• Closed loop hydraulic system and constant hydraulic oil temperature controller. Key hydraulic accessories including: Hydraulic plunger pump, adjuster mechanism with servo, hydraulic motor, and planetary reducer, all of which are manufactured in world-known brands with stable and reliable performances.
• Pneumatic Water Supply System: The pressure is provided by the air tank on the chassis with pressure protection devices. The pressure is provided by the air tank on the chassis with pressure protection devices. The water inlet connector fits for both normal water pipe and fire fitting.
• Multi-outlet washing design of which the cleaning requirements are met with the three fixed pipes for washing the agitator drum, charging hopper and discharging hopper respectively, and another flexible water outlet.
• Three-point operation system: One in the cab to allow control of the agitator drum, to turn forward and reverse, and to perform the "feed", "discharging", "agitate" and "stop" functions. Two at the rear with one operation handle at each side to perform "charge", "accelerate", "discharge", "agitate" and "stop", all of which are interlocked.

	Model	k9jb-R
Structure Parameter	Upper Structure Mass	kg	4150
	Dimensions(L×W×H)	mm	5905×2500×2725
	P.T.O Type		Engine P-.-T-.-O
	Water Supply Type		Air Pressure Type
	Volume of Water Tank	L	600
	Air Tank Joint		M22×1.5
Drum Performance Parameter	Agitator Capacity	m3	9
	Gradient of the Drum	o	14
	Max Speed of the Drum	rpm	12~16
	Charge Speed	m3/min	≥4
	Discharge Speed	m3/min	≥3
	Remnant Ratio of Discharging	%	≤0.7
	Range of Slump mm		50~210
Hydraulic System	Pump		RE X O T H Dextrorotatory A4VTG090 or others
	Motor		R-EX-O--TH AA2FM80 or others
	Gear Box		P4300 or others
	Hydraulic Circuit		Closed

Recommended Products
Company Profile Shandong Yudong Construction Machinery Equipment Co. , Ltd. is a set of used equipment procurement, trade, export, service, repair, maintenance, re-manufacturing as one of the integrated three-dimensional human creative company.
The company has more than 400 professional personnel, maintenance personnel, accessories management personnel, at the same time has 10,000 square meters of second-hand equipment storage space and maintenance warehouse.
Our company has a history of 17 years, specializing in the operation of second-hand engineering vehicles, second-hand irrigation pump, mixer, cranes, road engineering vehicles and vehicle accessories.
The market competition is the quality, wholeheartedly for the customer service is our responsibility. The company is a new and active company that creates self-worth. Facing the rising sun, it will become bigger and stronger.
Packaging & Shipping
FAQ
*HOW IS YOUR PRICE COMPARED WITH MANUFACTURERS / FACTORIES?
We work as the leading dealers of various leading China construction machinery manufacturers / factories, and are constantlytreated with best dealership price. From numerous comparison and feedbacks from clients, our price is more competitive than thepnce from manufacturers/factones.
*HOW IS YOUR DELIVERY TIME?
Under normal circumstances (except for irresistible risks such as war, natural disasters, etc.), we can deliver regular machines to customers immediately within 7 to 15 days, because we have multiple resources to check the inventory machines locally and nationwide and receive the machines in time. If remanufacturing and refurbishment is required, it will take 30 days to deliver to customers.
*HOW SOON CAN YOU RESPOND CLIENT INQUIRIES?
Our team is consisted of a group of diligent and dynamic people, working 24/7 to respond cient inquiries and questions all the timeMost problems can be solved within 8 hours, while manufacturers/factories will take much longer to give response.
*WHICH INCOTERMS 2010 TERMS CAN YOU WORK?
We are a professional and sophisticated international player, can handle all terms, and we normally work onregular terms such as FOB CFR, CIF,CIP,DAP
*HOW LONG WILL YOUR PRICE BE VALID?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year.
We onlyadjust our price based on two situations:
(1) The rate of USD: RMB varies significantly according to the intemational currencyexchange rates,manufacturers/factories adijusted the machine price, because of the increasina labor cost and raw maleral cost
*WHAT LOGISTICS WAYS YOU CAN WORK FOR SHIPMENT?
We can ship construction machinery by various transportation tools.
(1) For 80% of our shipment, the machine wil go by sea, to all main continents such as Africa, South America, Middle EastOceania and Southeast Asia etc., either by container or RoRo/Bulk shipment.
(2) For inland neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Kyrgyzstan, Tajikistan, Uzbekistan,Turkmenistan etc..we can send machines by road or railway.
(3) For light spare parts in urgent demand, we can send it by intemational courier service, such as DHL, TNT, UPS, or Fedex.
