Plastic Injection Molding Machine 530 Ton for Fan Blade Making Machinery

Plastic Injection Molding Machine 530 Ton for Fan Blade Making Machinery

US$75,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-530T IV
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
509/574/643cm³/Sec
Weight
22000kg
Motor Power
45kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
9.2*2.2*3.0m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Full Automatic Injection Mini Molding Plastic Mold Machine for Bottle Cap
Product Parameters

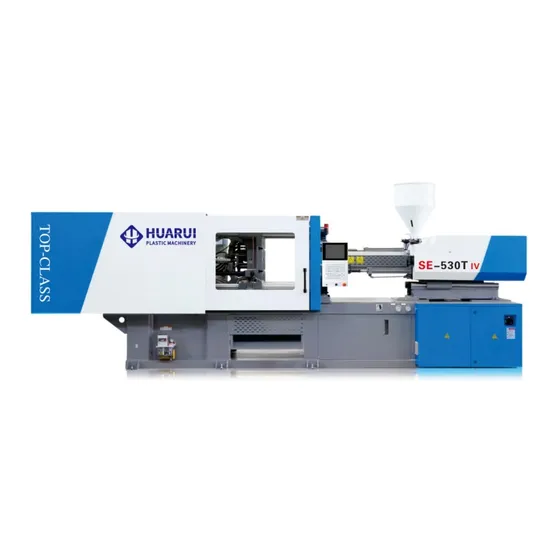

SE-530T IV Plastic Injection Molding Machine Information
Item Unit A B C
Screw diameter mm 80 85 90
Theoretical shot volume cm³ 2187 2468 2767
Shot weight (PS) g 1990 2246 2518
Shot weight (PS) oz 70.2 79.2 88.8
Length/Diameter ratio L/D 23.4 22 20.8
Injection pressure Bar 1912 1700 1510
Injection rate cm³/sec 509 574 643
Max.screw speed rpm 140
Clamping force KN 5300
Max.daylight mm 1275*1225
Open stroke mm 850
Space Between Tie-bars mm 870*820
Min mould dimension mm 320
Mould thickness range mm 870
Ejector force KN 120
Ejector stroke mm 220
No.of ejector pins unit 13
Max.motor power KW 61
System pressure MPa 175
Heater input power KW 45
Oil filling capacity L 700
Machine size M 9.2*2.2*3.0
Net weight KG 22000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
