High Length Precision Uncoiling Slitting Recoiling Line Price Metal Slitting Line

Product Description

Description:
CNC UNCOIL SLITTING LINE(0.18-2.0*1650mm,120m/min)
FEATRURES
High degree of automation, high shearing accuracy and fast running speed
Specification:
1. Coil parameter

1	Matierial	SPCC, SPGC, PPGI
2	Thinkness	0.18-2.0mm (os≤300Mpa,ob≤300Mpa)
3	Width	500-1650mm
4	Coil inside diameter	Φ510mm/Φ610mm(Add rubber ring)
5	Coil ousiade diameter	≤Φ2500mm
6	Coil weight	Max25T

2.Sheet parameter

1	Products width	40-1500mm
2	Slitting pics	15pics(Thickness 0.18-1.0mm) 10pics(Thickness 1.1-2.0mm)
3	Width precision	±0.05mm(Thickness 0.18-0.9mm) ±0.10mm(Thickness 1.0-2.0mm)
4	Straightness	0.5mm/1000mm(W≥100mm)
5	Burr	5% Thinkness,Min0.03mm
6	Decoil inner diameter	Φ510mm
7	Decoil weight	Max10T

3.Machine parameter

1	Speed	50-120m/min
2	Power	Around 180KW

3	Direction	By buyer
4	Overall dimension	22mx9m(L X W)
5	Source	AC 3×380V10%,60Hz±2%
6	Compressed air	0.4-0.8Mpa, 1000L/min
7	N46/Hydraulic oil	500LBy buyer
8	Color	By buyer

4. Description

no.	items	qty	specification	remarks
1	/Coil platform	1Set
3	/Uncoil car	1Set	AC2.2KW	Hydraulic
4	/Uncoiler	1Set	AC11KW	AC invent control
5	/Sheet Feeder	1set	/
6.	2/2Roller Feeder	1set	AC18.5KW	AC invent control
7	/Cutter	1set		Hydraulic
8	/EDC device	1set
9	/Slitter(Single slitter)	1set	AC45KW, Slitting Shaft: diameter 180mm	AC invent control
10	/Edge coiler	2set		AC invent control
11	2#/Lifting platform	1set		Hydraulic
12	/Pre-separate device	1set		Hydraulic
13	/Tension machine	1set		Hydraulic
14	/Steering roll	1set
15	/Decoiler	1set	AC75KW	AC invent control
16	/Decoil car	1set	AC1.1KW	Hydraulic
17	/Hydraulic pressure station	2set	AC11KW
18	/Control system	1set	Simens S7-200	PLC control

PARAMETER
ITEMS
lead time:150-180 days
export port:shanghai port
guarantee:shanghai qiangda is reponsible for the installation, adjustment and technical instructions. but the buyer should bear all related fees, such as visa, transportation, accommodation fee and a daily salary of USD100/person.
warranty period:one year.

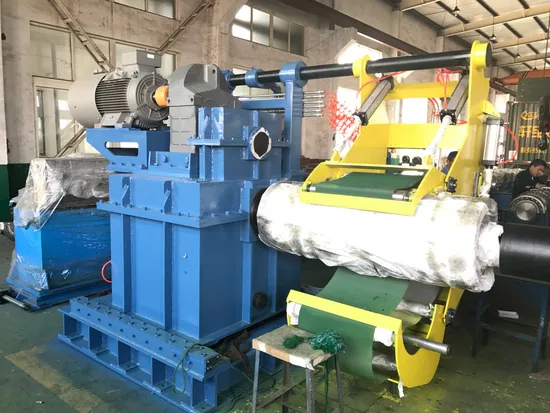

PICTURES
ABOUT US
PACKING&TRANSPORTING
FAQ
1.What is your advantages?
More than 20 years experience in manufacture. We have professional engineers to provide technical support and rich experience in solving emergency. High degree of automation, high shearing accuracy and fast running speed.
2. Do you have after sales support?
We provide thoughtful after-sales service, and also arrange complete management cases for customers.
Training: Customers can get great training related to our products and technology from our factory Qiangda&Yuao.
On-site Service: Qiangda&Yuao has a complete technical service system.
We make sure that "the service team will go where our customer needs." May you have questions, please contact us or leave a message online.
Technical Support: We offer the technical support if needed. Our engineers will help you with installation and operation.
3. What information you need to prepare the quotation:
1. Coil thickness (min-max)
2. Pipe diameter (min-max)
3. What kind of your material
4. Weight of your coils (max)
5. How many tons you need per day or per mon
