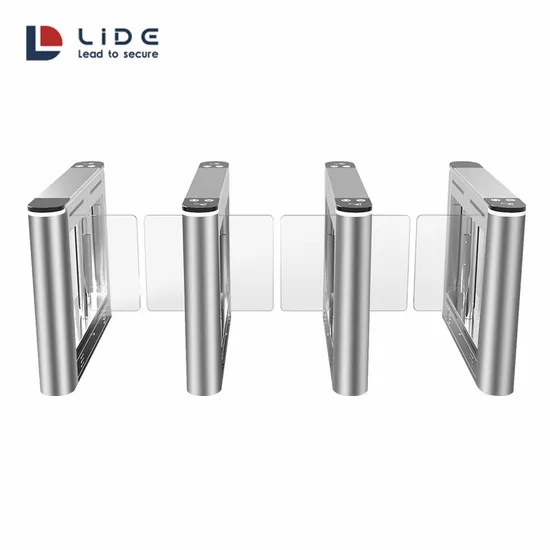

RFID Access Control Security System Automatic Gate Swing Turnstile

Product Description

Swing Barrier Gate:

Swing barrier gate: It is mainly used for the management of the entrance and exit of the passage. It has the characteristics of fast opening, safety and convenience, etc. It is the ideal management and guidance equipment for high-frequency entrance and exit of pedestrians. Widely used in airports, subway stations, stations, terminals, attractions, parks, shopping malls, office buildings, pedestrian walkways and other places.
I. Standard parameters:

Moduel No.	LD-B502
Size	1400x185x1020mm
Material	304 stainless steel, acrylic
Thickness of the cabinet	1.5mm
Unlocking time	0.2s
Traffic speed	≤35 persons/min
Channel width	≤900mm
Voltage input	220V, 50HZ
Motor voltage	24V
Ambient temperature	: -25~+70
Infrared quantity	5 pairs
Power	35W

Function: (1) Automatic homing function: After the passage process is completed, the swing arm automatically returns to the initial blocking position.
(2) Power-off and opening function: When the power is cut off, the system will automatically unlock the pendulum, and it can be manually pushed into the open state (there is no battery installed inside, so manual operation is required after power off), which is convenient for evacuation of the crowd and meets fire protection requirements.
(3) Anti-illegal break-in function: When the card is invalid, there is no card swiping or the traffic is forbidden, forcibly pushing the swing arm will be regarded as illegal break-in, and the system will automatically alarm and lock the swing arm
(4) Anti-reverse passage function: When the pendulum has been swinging at a certain angle during the passage, a strong reverse pulling of the swing arm will be considered as reverse traffic, and the system will automatically alarm, and at the same time, lock the swing arm and stop the action.
(5) Intelligent linkage alarm: including alarms such as illegal break-in, reverse traffic, etc., which can be linked with other alarm monitoring equipment, and can be in the form of sound and light. If a flash alarm is required, alight-emitting alarm needs to be added to the casing.
(6) Anti-pinching and anti-collision function: Infrared anti-pinching: Install multiple pairs of photoelectric switches in the area near the swing arm movement (anti-pinching zone). Once a person or object is detected in the anti-pinching zone, the pendulum automatically stops moving; The swing arm continues to move.
(7) Anti-collision function: When the brake is locked, it can withstand the impact force in a safe range. When the brake is out of the safe range, it can be slowly pushed to protect the movement and pedestrians, and then reset automatically.
(8) Passing instruction function: Install an LED indicating board at a conspicuous place on the housing frame to remind pedestrians the passing state of the gate.
Customizable extended functions:
1.Counting and alarm functions;
2. The length of the chassis can be customized according to customers, the shortest is 1.2 meters, the material of the swing arm is: transparent acrylic, the colors are: the colors can be customized separately 3. Case material is 304, other materials can also be customized
4.Remote control switch
5. Dynamic integrated face recognition
6. Can add emergency escape function, in the case of special emergency, start by remote button
10. Fingerprint recognition of time attendance
11. QR code pass
AOUT LIDE :
Guangdong Lide Intelligence Technology Co., Ltd is a high-tech enterprise integrating R&D, production, sales, installation, training and after-sales, specializing in providing intelligent channel solutions.
The main products are high-quality turnstiles and smart parking management systems, including tripod turnstile, flap barrier gate, swing barrier gate, speed gate, full-height turnstile, facial recognition terminal, vehicle barrier and automatic bollard.
Lide is committed to providing domestic and foreign customers with professional, efficient, and convenient intelligent entry and exit solutions, simplifying the complexity, achieving scientific, intelligent, and data management of personnel and vehicles; improving channel management efficiency, reducing labor costs, and reducing potential safety hazard.
After-sales services: All the products sold enjoy 18-month warranty and more spare parts are provided. After-sales service staff are online for 18 hours/day and all emails are replied within 1 hour. We offer life-time technology support on line, by emails, videos, phone calls, etc. We have engineers speaking English, Spanish and Arabic, etc. They are convenient to communicate with buyers or users directly. Engineers' on-site services are provided. Engineers are dispatched to customers' countries to handle various thorny problems.
FAQ:
1. How about your company's actual strength?
We are the professional manufacturer in turnstiles in China. We have more than 100 employees, a R&D group with 5 people, 1 HQ office and 3 branches. Factories and office buildings are 2000 square meters in total.
2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. For example, we use international standard China-Japan Baoxin stainless steel 304 stainless steel, Taiwan Minwei electric supplier, belt import from German, clue import from America etc.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.
4. How long is your warranty period?
12 months. Life time spare parts.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
