Multi Functional 500kg H Sawdust Straw Fuel Wood Pellet Mill Making Machine Price

Product Description

Wood Pellet Mill Description

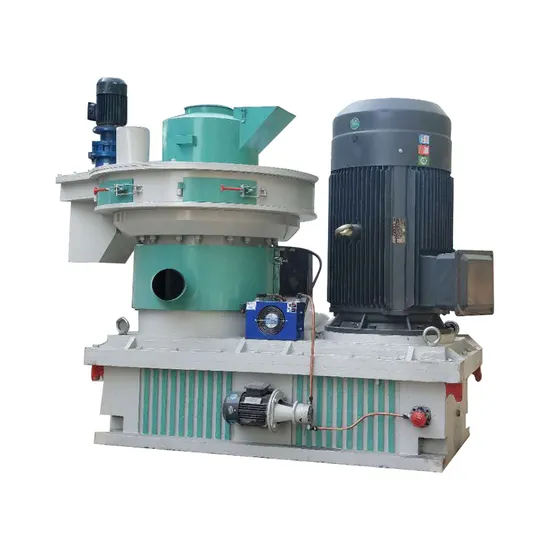

The vertical ring die wood pellet machine has absorbed the advantages of the flat die and horizontal ring die pellet machines, and has the characteristics of automatic lubrication, air-cooled dust removal, double-layer mould, multi-purpose machine, and high-efficiency centrifugal. Wood pellet machine SHD850 is a large vertical ring die wood pellet machine, the output can reach 3-3.5 tons/hour. Wood pellet machine - large vertical ring die pellet machine is also a multi-functional pellet machine with a wide range of applications, and is now widely used in the production of biomass fuel pellets, plastic pellets, fertilizer pellets and other industries.
Structure of biomass pellet machine
The wood pellet mill is mainly composed of spiral feeder, mixing and mixing space, adjusting system, particle forming area, particle sending, steel body body, dynamic transmission and lubrication system, and the main components are the main motor, transmission mechanism, spindle, ring die, press roll, scraper, cutter assembly and fuselage and door.
Raw material for pellet mill
Production Process
1. Use Wood Chipper. Wood Crusher, Hammer mill to make wood logs, chips (or other materials) smaller. 2. Use Dryer Crotary drum dryer I Air-flow dryer) or add water to the sawdustlor other materials) till its moisture content between 12-15%. which is the best moisture content for pelletizing
3. Put the sawdust into the pellet mill gradually. Large scale pellet production need a
screw feeder to make sure stable feeding of raw material.
4 After pelletized. the pellets are of high temperature that is not suitable for direct packing So they should be cooled by pellet coolerThen, pellets go through a vibrating sieve, where good
pellets will be left, while broken ones or powder will be collected for reproduction.
5. After all the above procedures. pellets can be packed with a pellet packing machine.
Wood Pellet Mill Specifications

Model	Capacity(kg/h)	Pellet diameter(mm)	Power(kw)	Weight(t)	Size(mm)
SHD250	0.2-0.3	4-6mm	15	0.5	1400*600*1000
SHD400	0.4-0.5	4.5-10mm	37	4.3	2300*1100*1900
SHD560	1-1.5	4-12mm	90/132	6.1	2600*1300*2300
SHD760	2-2.5	4-12mm	160	7.5	2900*1300*2400
SHD850	2.5-3.5	4-12mm	200	14.5	3300*1400*3100

Client Feedback
Company Profile
We are Shanghangda Machinery Manufacturing Co., Ltd, the manufacturer was established in 1999, one of the first Chinese companies to initiate its own research capabilities in wood chipper and biomass pellet technology.Shanghangda Products are specialists in the design and manufacture of high quality chip and wood pellet equipment ,has been the leading manufacturer of the highest quality wood chipper and wood pellet machine available on the market today, products are exported to Europe, America, Africa,Southeast Asia and other countries around the world We got creditable good praise from our customers in many years.
Operation Precautions
1. Please read the contents of this manual carefully before use, and operate in strict accordance with the operating procedures and sequences.
2. The water requirement of the forming machine: the water content of corn straw, wheat straw and straw can be formed between 10%-30%, preferably between 15%-20%. When the moisture content of peanut husk and rice husk is between 12% and 14%, the molding
effect is good.
3. Do not run idly if there is no material in the hopper. If there is a stuffy machine (no material) phenomenon due to the moisture of the raw material exceeding 30%, the machine should be shut down in time, the wet material in the hopper should be cleared, and then the raw materials that meet the requirements can be added for normal production.
4. When you hear the abnormal noise of the machine, stop the machine immediately for inspection, and it is strictly forbidden to remove the hopper
Notice:All models can be customized according to customer needs.
