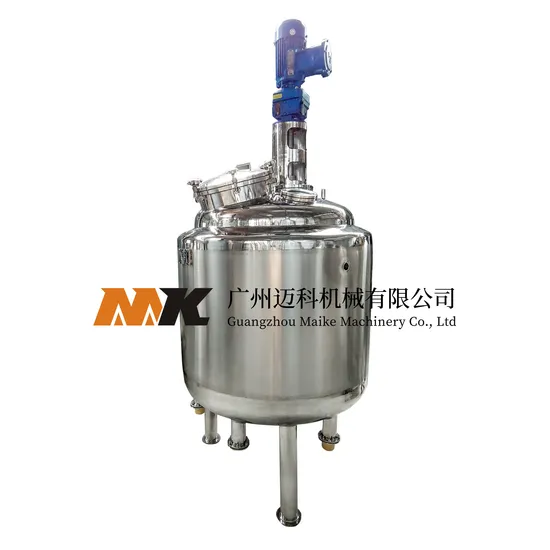

SS304 Cosmetics/Drug Mixture Electric Heating Mixing Tank
Basic Info.
Model NO.
MK-JBG-5
Application
Liquid with Suspended Solids, Viscous Fluid, Liquid
Application Area
Daily Chemical
Certification
ISO
Condition
New
Heating Method
Electric Heating
Mixing Drum Shape
Double Cone
Stirring Type
Diving
Warranty
1 year
Working
High Speed Mixer
Speed
128rpm
Electric Heating Power
7kw
Applicable Materials
Mixing of Liquid Materials
Motor Power
2.5kw
Sealing Form
Mechanical Seal
Heating Mode
Electric Heating
Equipment Material
SUS 304/316L
Cylinder Diameter
900mm
Device Mode
Fixed
Cylinder Thickness
4mm
Mixing Paddle Type
Anchored Agitator
Source of Goods
Factory Direct Deal
Quality Guarantee Period
1 Year
Thermal Insulation Material
Aluminium Silicate
Layout Type
Verticle
Operating type
Cycle Operating
Mixer Type
Mixing Tank
Transport Package
Wooden Case
Specification
500L
Trademark
Maike Machinery
Origin
China
Product Description
Product OverviewMixing tank is mainly used for mixing, mixing, blending and homogenizing materials. Stainless steel mixing tank effectively shortens the mixing time, saves labor and speeds up production. It is the main equipment for modern industrial production.
Product structure
Mixing tank is composed of mixing tank body, mixing tank cover, mixer, support, transmission device, shaft seal device, etc. it can also beequipped withheating device or cooling device according to the process requirements.
Technical parameter
| Type | Volume(L) | Cylinder Size(mm) | Motor Power(KW) | Speed(rpm) | Material |
| MK-JBG-05 | 50 | 300 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-1 | 100 | 500 | 0.75 | 30-180 | SUS304 / SUS316L |
| MK-JBG-2 | 200 | 600 | 1.1 | 30-180 | SUS304 / SUS316L |
| MK-JBG-3 | 300 | 700 | 1.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-5 | 500 | 900 | 2.2 | 30-180 | SUS304 / SUS316L |
| MK-JBG-8 | 800 | 1000 | 3 | 30-180 | SUS304 / SUS316L |
| MK-JBG-10 | 1000 | 1100 | 4 | 30-180 | SUS304 / SUS316L |
| MK-JBG-20 | 2000 | 1300 | 5.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-30 | 3000 | 1500 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-40 | 4000 | 1700 | 7.5 | 30-180 | SUS304 / SUS316L |
| MK-JBG-50 | 5000 | 1900 | 11 | 30-180 | SUS304 / SUS316L |
| MK-JBG-100 | 10000 | 2000 | 15 | 30-180 | SUS304 / SUS316L |
According to the material characteristics and the user's process requirements, our company will recommend the proper type of agitator and mixing speed. The agitators suitable for low viscosity and medium viscosity fluids include propelling agitators, turbine agitators, inclined blade agitators, Brumakin agitators, plate and frame agitators, three blade backward curved agitators, MIG agitators, etc. The agitators suitable for high viscosity and ultra-high viscosity fluids include anchor type agitator, frame type agitator, spiral belt type agitator and screw type agitator. The combined agitator can also be made according to the technological requirements of users.
