Double Heads Automatic Cigarette/Medicine/Cloths Label Stripping/Blanking Machine Mscb-St-68

Product Description

Product Description
Product Description

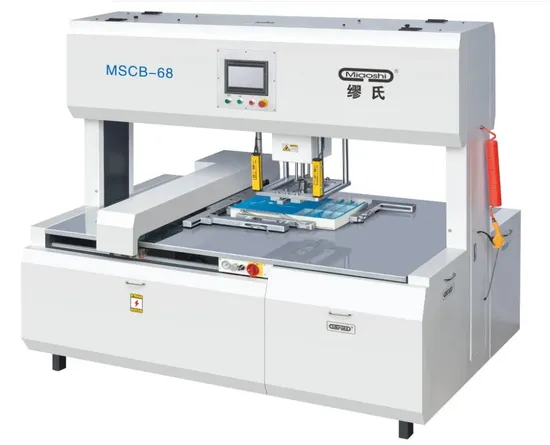

.The MSCB-ST-68 serious automatic stripping machine is designed and manufactured by the Miaoshi printing machinery company in order to solve the problem of difficult talking out finished products by workers after die cutting cardboard.
Main purpose:
.It is suitable for automatic talking out the products like cloths label,card,medicine boxes,cigarette boxes,small toy boxes,etc.
The advantage of the machine:
Use the computerized PLC touch screen to adjust the date which is more convenient for users,the main movement is combined by hydraulic system ans ball screw driven by servo motor which has low failure rate and more agile.
Features:
After die cutting,use the machine to stripping automatically which is more convenient for workers to take out the finished products,high production,less cost and high efficient for customers.
Technical parameter
Technical parameter

Model	MSCB-68
Machine weight	1100
Max Stripping Area	680x450
Mini Stripping Area	450x320
Max Stripping Finished Product Size	220x220
Mini Stripping Finished product Size	30x30
Stripping Height	40-120
Stripping Speed	15-20
Main Power	2.5
Voltage	380V/50HZ
Wire Specificalion	1.5
Packing Size	2100x1500x2050
Overall dimension	1900x1200x1900
