Manufacturer Cheap Price 20000liters 10mt Auto Propane Gas Tank/LPG Storage Tank LPG Tanker for Gas Station
| US$10,000.00-29,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW5250
Application
Liquefied Gas
Material
Q345r Q370r
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Description
10t 20cbm LPG Storage Tank for Hot Sale
Tank Material
Q345r Q370r
Volume
5cbm, 10cbm, 20cbm, 30cbm, 50cbm, 80cbm, 100cbm
Design
OEM, ODM
Manufacturer
Chengli Special Automobile Co., Ltd
Filling Medium
LPG(Propane)
Place of Origin
Suizhou Hubei China
Package
Bulk, RO-RO, Container, Naked, Waxed
Terms of Payment
CIF, Fob, CFR, Daf
Color
Red, Yellow, White, Any Color as Your Require
Logo
as Your Request
Thickness
10mm to 20mm
Sales Service
Available
Certification
ASME, CCC, ISO, etc
Transport Package
Bulk, RO-RO, Container, Naked, Waxed
Specification
ISO, CCC and others
Trademark
CLW
Origin
Hubei. China
HS Code
73110090
Production Capacity
800sets/Month
Product Description

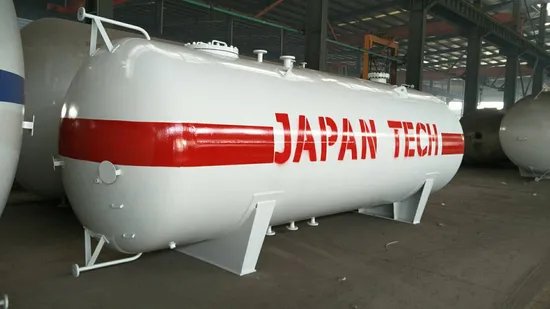

| PRODUCT DISPLAY |
LPG Storage Tank Brief Introduction:
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc.in low pressure liquefied gases at room temperature; volume from 5 cubic meters --- 200 cubic meters optional. Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification,inspection , test .the tank materials on physical and chemical tests such as: mechanical properties and chemical composition. the tank welded joints, welding line , tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection. seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators. A, B Class 100% ray weld inspection, II level qualified C, D Class welds 100% magnetic particle inspection, I level qualified
| Specification of 20cbm LPG Storage Tanker | |
| Volume of Tank | 20CBM |
| Filling Weight (kg) | 7980 |
| Tank Weight (kg) | 5050 |
| Thickness (mm) | Tanker body: 12 |
| End plate:12 | |
| Tank Diameter (mm) | 2100 |
| Tank Dimensions (mm) (length x width x height) | 6154*2124*2714mm |
| Major Materials | Carbon Steel |
| Fluid Property | Flammable |
| Design Pressure(MPa) | 1.77 |
| test pressure (Mpa) | 2.22 |
| Density (kg/m3) | 420 -590kg/cbm |
| Corrosion Allowance(mm) | 1 |
| Life expectation(year) | 15 |
| Safety Valve(As Customer's Requirement) | |
| Quantity | 1 |
| Location | On the top of tanker |
