2020 High Efficient Saw Vgrind Grinding Machine
| US$999.00-14,000.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
NS 500
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Saw Blade Dia
110~510mm
Saw Blade Thickness
0.5~8mm
Side Angle
5° ~ -5°
Hook Angle
5° ~ -5°
Bore Dia
12~120mm
Wheel Dia
80~100mm
Wheel Speed
5000r/Min
Dimentions
1400 *1250 *1820mm
Power
3kw
Weight
1400kg
Voltage
AC 380V-50Hz/220V-60Hz
Transport Package
PE Bag + Wood Carton
Specification
1400 *1250 *1820mm
Trademark
TORSEL
Origin
China
HS Code
8460310000
Production Capacity
5000units/Year
Product Description

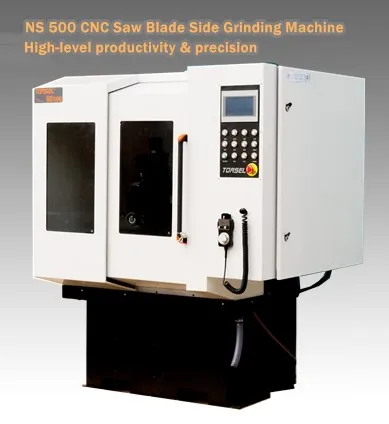

NS 500 CNC Saw Blade Side Grinding Machine High-level productivity & precision grinding machine for carbide tools.Advantages of Saw Blade Side Grinding Machine • More precision- grinding precision: <0.02mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
CNC Control- be flexible to control precision as requirement. 3-D Graphics Grinding Machine Technical Premeter
| Saw Blade Diameter | 110~510mm |
| Saw Blade Thickness | 0.5~8mm |
| Side Angle | 5°~ -5° |
| Side Relief | 5°~ -5° |
| Hook Angle | -5°~28° |
| Bore Diameter | 12~120mm |
| Pitch | 2~65mm |
| Cutter Head Length | 1~15mm |
| Wheel Diameter | 80~100mm*32mm |
| Wheel Speed | 5000r/min |
| Grinding Speed | 1~20mm/s |
| Power | 3Kw |
| Dimensions | 1400 X1250 X1820mm |
| Weight | 1400kg |
FAQ 1. How to chooce best saw blade grinding machine? - Best grinding machine process tools with higher precision & long service life. 2. How is the performance of TORSEL saw blade grinding machine? - TORSEL saw blade grinding machine process tool with excellent precision <0.02mmthe service life is upto 15 years. 3. Whats your cooperation companys?
