Equipment Auto Parts Machine Max Lift Height 480mm Lifting Jack

Product Description

Product Parameters

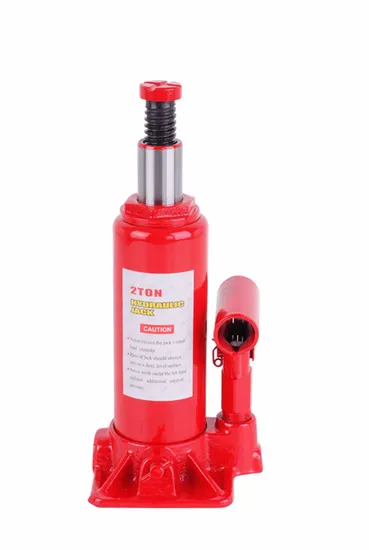

Specification:Hydraulic bottle jack

Model	Lifting W(ton)	Min.H(mm)	Lifting H(mm)	Adjust H(mm)	Max.H(mm)	Net Wt(kg)	GR.WT(kg)	Quantity
ST0205	2	150	80	55	285	2.2	23	10
ST0405	3-4	158	90	60	308	2.8	24	8
ST0605	5-6	195	125	60	380	3.7	31	8
ST0805	8	197	125	60	382	4.2	26	6
ST1005	10	205	125	60	390	5.4	23	4
ST1205	12	205	125	60	390	6.2	26	4
ST1605	15-16	210	125	60	395	6.8	29	4
ST2005	20	225	140	60	425	9.4	20	2
ST3205	30-32	245	145	/	390	13	27	2
ST5005	50	285	180	/	465	23	24	1

Specification:Hydraulic bottle jack

Model	Lifting W(ton)	Min.H(mm)	Lifting H(mm)	Adjust H(mm)	Max.H(mm)	Net Wt(kg)	GR.WT(kg)	Quantity
ST0202	2	158	90	60	308	2.3	24	10
ST0402	3-4	195	125	60	380	3.3	28	8
ST0602	5-6	197	125	60	382	4.4	28	6
ST0802	8	205	125	60	390	5.4	23	4
ST1002	10	205	125	60	390	6	25	4
ST1202	12	215	125	60	400	7.2	16	2
ST1602	15-16	225	140	60	425	8	17	2
ST2002	20	244	145	60	449	11	24	2
ST3202	30-32	285	180	/	465	13.5	30	2
ST5002	50	300	180	/	480	21	32	1

Specification:Floor jack

Model	Lifting W(ton)	Min.H(mm)	Lifting H(mm)	Packing	Max.H(mm)	Net Wt(kg)	GR.WT(kg)	Quantity
STFLIA	2	135	200	colour box	335	9.0	9.5	1
STFLIB	2	135	200	60	335	9.0	10	1
STFL2A	2	135	200	60	335	8.5	9.0	1
STFL2B	2	135	200	60	335	8.5	9.5	1

Company Profile
Guizhou Mec Inc is located in the beautiful scenery of Guizhou mountain city in China, we can supply a wide range of auto parts and machine and equipment, we have our own crankshaft processing plant, is a combination of industry and trade enterprises.Auto parts included crown wheel and pinion, crankshaft, camshaft, cylinder head, axleshaft, cylinder liner, piston ring, clutch disc assy, V-belt, tooth belt, hydraulic brake cylinder cups, rotary shaft lip seals,Sealed beam, halogen bulb, cleaner, startor etc.Besides auto parts, we engage in the export of equipment, machine tool, packing machine,Hardware, tools and filling machine, labeling machine, etc. It exports to almost 100 countries and regions of the world including USA, European, Southeast Asia, Russia, Hong Kong etc.We are ready to render cordially our services to friends of industry and commerce, trade, science and technology, finance and friends of other circles throughout the world, and to become your reliable cooperative partner.
Certifications
More Products
Besides the above,we can supply more below:
1.Double ram bottle jacks
2.Hydraulic cylinder with toe-lift
3.Screw jacks
4.Floor jack low profile
5.Engine crane
6.Portable power pipr bender
7.Transmission jack
8.Jack stand
9.Scissor jack
10 Air bottle jack series
11.Long ram jack series collision repair kits
12.Porta rower jack
13.Shop press
14.Engine stand
15.Motor-cycle service elevator
MORE REQUIREMENTS PLEASE CONTACT US
