C6266Y heavy engine lathe machine for metal cutting
Basic Info.
Model NO.
CY6266
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Station Toolpost
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Spindle Bore
115mm
Max. Swing Over Bed
660/800/1000mm
Distance Between Centers
1000/2000/3000/4000mm
Machine
Lathe
Voltage
110V, 220V, 380V
Clour
Customer Appoint
Payment
T/T, Paypal, LC, West Union
Transport Package
Fumigated Poly-Wood Case
Specification
CE, SGS
Trademark
WMT
Origin
Chizhou, Anhui
HS Code
8458190000
Production Capacity
80 Sets Per Month
Packaging & Delivery
Package Size
282.00cm * 130.00cm * 210.00cm
Package Gross Weight
3600.000kg
Product Description
Machine's Detailed Pics.Feature
Precision ground
Clutched head stock
CE-conformity
Safety torque limiting device for lead screw
Safety overload clutch for feedrod
Rapidtraverse(optional)
Main spindle supported at 2 points with predision taper roller bearings
2500-3000mm Lathe with follow chip cuard
Main Specification

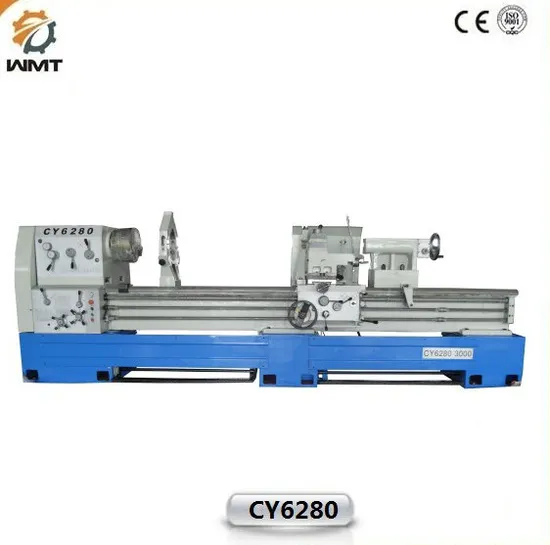

| SPECIFICATION | C6266Y | C6280Y | C62100Y | ||
| CAPACITY | Max.swing over bed | Φ660mm(26") | Φ800mm(31.5") | Φ1000mm(40") | |
| Max.swing over cross slide | Φ435mm(17") | Φ560mm(22") | Φ705mm(28") | ||
| Max.swing over gap | Φ860mm(34") | Φ1000mm(40") | Φ1200mm(47") | ||
| Effective length of gap | 280mm(11") | ||||
| Center Distance | 1000mm/2000mm/3000mm/4000mm(40"/80"/120"/160") | ||||
| Bed Width | 400mm(16") | ||||
| HEADSTOCK | Spindle hole | Φ103mm(4") | |||
| Spindle nose | ISO-D11 | ||||
| Spindle taper | Φ115mm(4-1/2") | ||||
| Spindle speed(Number) | (cw/18)9-1275rpm (cw/6)16-816rpm | ||||
| FEEDS | Longitudinal feeds range | 72kinds 0.073-4.066mm/rev. | |||
| Cross feeds range | 72kinds 0.036-2.033mm/rev. | ||||
| Metric threads range | 72kinds 0.5-112mm | ||||
| Inch threads range | 72kinds 1/4-56mm | ||||
| Module threads range | 36kinds 0.5-7 inch | ||||
| Diametric threads range | 36kinds 4-56D.P | ||||
| CARRIAGE | Max.travel of top slide | 110mm(4-3/8") | |||
| Max.travel of cross slide | 325mm(13") | ||||
| Max.size of tool shank | 32mm×32mm(1-1/4"×1-1/4") | ||||
| TAILSTOCK | Dia.of tailstock sleeve | 90mm(3-1/2") | |||
| Taper of tailstock sleeve | MT6 | ||||
| Max.travel of tailstock | 150mm(6") | ||||
| MOTOR | Main drive motor | 7.5kw | 11kw | ||
| Rapid traverse motor | 250W | ||||
| Coolant pump motor | 125W | ||||
| PACKING LxWxH | Center Distance(1000mm) | 2820×1300×2100mm | |||
| Center Distance(1500mm) | 3320×1300×2100mm | ||||
| Center Distance(2000mm) | 3820×1300×2100mm | ||||
| N.W/G.W | Center Distance(1000mm) | 3000/3600kg | 3150/3750kg | 3300/3900kg | |
| Center Distance(1500mm) | 3250/3850kg | 3400/4000kg | 3550/4150kg | ||
| Center Distance(2000mm) | 3500/4150kg | 3650/4300kg | 3800/4400kg | ||
Standard Accessories:
3-jaw & 4-jaw; Steady rest & follow rest;
Face plate; Drive plate; Thread-cutting diameter; Longitudinal touch stop; Work lamp; Coolant system; Full-length splash guard; Foot brake and brake ribbon; Change gears; Dead centre and centre sleeve; Oil gun; Padding; One whole set spanner.
Optional Accessories:
Rapid travel
Live centre
Digital readouts (SINO)
CE-conformity (Chuck guard and Tool-post guard)
Magnetic electrical brake
Taper cutting function.
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
