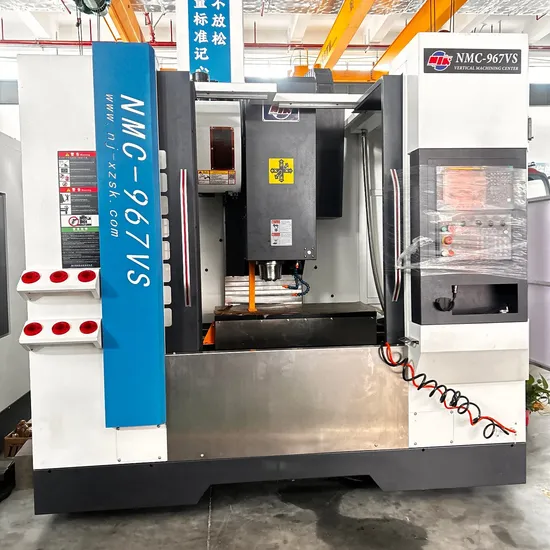

Vmc967vs Cheaper Small CNC Milling Vertical Machining Center with CE

Product Description

1.CNC Machining Cutting Machine Aluminum Milling Center Product Description
DESCRIPTION
Machine tool features The main shafts all adopt wide-area high-torque spindle motors with outstanding advantages such as wide constant power range, large output torque, low noise, maintenance-free, high speed, and low failure rate. Cooperating with the high-rigidity integrated spindle unit, the heavy-duty cutting capability of the machine tool has been greatly improved, and the output torque of the spindle is twice that of ordinary models. The main structure of the machine adopts modularization, a strong and closed box structure design, with good overall rigidity and strong heavy-duty cutting capability X/Y axis heavy-duty roller linear guideway.
FEATURE
FEATURE
1. Adopt Taiwan HIWIN or PMI line rail, and the width of the Y and Z axis rails is up to 45mm.
2. The ultra-wide base is as stable as Mount Tai.
3. The double-layer arm structure of the force column increases the rigidity by 1.5 times.
4. The X-axis sliding seat has a super-large span, and the "herringbone"-shaped column design is as stable as Mount Tai.
5. The three-axis adopts Taiwan's external diameter 40mm C3 grade screw rod, and the three-axis adopts NSK original bearing (3062), which is pre-tensioned to prevent thermal displacement.
6. High rigidity BT spindle, ring spray design.
7. The machine tool parts belong to the famous brand of famous factory, and the top configuration in the industry.

FEATURE

Model Item	FANUC 0i-MF
	NMC-967VS
Workable size(L*W) mm	1100*600(1200*600)
T-slot(No.-W×D)mm	5-18*90
Max. Worktable loading kg	3000
The dis. From Spindle center to Beam guideway mm	680
The plane dis. From spindle end to worktable mm	100-800
X/Y /Z axis travelling mm	900/600/700
X/Y/Z guideway type	Linear Rolling Guide
X/Y/Z fast move speed m/min	24/24/24
Cutting feed speed range mm/min	10000
X/Y/Z servo motor Power kW	3/3/4.7
Spindle motor power kW	15/18.5kW
Max speed of spindle r/min	4500
Tool magazine capacity/form	24
Shank form	BT50
Max weight of tool kg	15
Max diameter/length of tool mm	Ø105,Ø200/320
Exchange tool time(Tool to Tool) Sec	3
Exchange tool type	Side-mounted mechanical arm
X/Y/Z axis position accuracy mm	±0.005
X/Y/Z axis repeat position accuracy mm	±0.003
Air pressure kg/cm	6~8
Electricity demand kVA	20
Machine size(L×W*H) mm	2600*2400*2550
Machine weight kg	8800

MAIN ACCESSORIES

No.	Name	Qty.	Manufacturer	Remark
1	CNC Control System	One set	FANUC	FANUC-OI-MF
2	Spindle servo motor	One set	FANUC
3	X,Y,Z servo motor	Each for one set	FANUC
4	Spindle front bearing	One group	FAG
5	Spindle rear bearing	One group	FAG
6	X,Y,Z axis bearing	Each for one set	NSK	30TAC62
7	X,Y,Z axis ball screw	Each for one set	HIWIN/PMI	Ø40*P16*C3
8	X axis liner guideway	Two pcs	HIWIN/PMI	45
9	Y axis liner guideway	Two pcs	HIWIN/PMI	45
10	Z axis liner guideway	Two pcs	HIWIN/PMI	45
11	Spindle Unit	One set	Taiwan	BT50/150
12	Tool magazine	One set	Taiwan	24
13	Cutting fluid pump	One set	Shanghai	4-60-750W
14	Automatic lubrication system	One set	Japan	2L
15	Knife cylinder assembly	One group	Sino-Japanese joint venture
16	Main pneumatic components	One set	AirTAG
17	main electrical components	One set	Schneider
18	Spindle belt	One group	GATES
19	X,Y,Z shaft coupling	Each for one set	NBK
20	Heat exchanger	One set	Chinese

STANDARD ACCESSORIES
STANDARD ACCESSORIES

1	24 disc tool magazines	5	Working light	9	Electric cabinet heat exchanger	13	Foundation screws and pads
2	Workpiece Cooling System	6	Tri-color warning light	10	Network transmission and CF card function	14	Tools and Toolboxes
3	Automatic lubrication system	7	cleaning air gun	11	Rigid tapping	15	Iron chipping disc and chip storage box
4	Spindle blowing device	8	Spindle output water	12	Fully enclosed protective cover & Double spiral chip	16	Iron cutting disc and chip storage box

RANDOM DOCUMENTS LIST

No.	Name	Specification and remark	Qty.
1	Packing list		1
2	Certificate of Inspection		1
3	Machine Tool Mechanical Manual		2
4	Machine Tool Electrical Manual	With electrical schematic	2
5	CNC System Certificate/Guarantee		1
6	System factory parameter table		1
7	CNC system data	Operation/programming/maintenance/parameters	2
8	Tool Magazine User Manual		1
9	Automatic Lubricating Device Manual		1

WORKING CONDITION AND SERVICE
2.WORKING CONDITION AND SERVICE MACHINE TOOL ENVIRONMENTPower supply: 3-AC 380V±10% 50Hz±1Hz Altitude: ≤1500m
Ambient temperature: 5~45° Relative humidity: ≤85%
Environment: no harmful and corrosive gas, liquid, dust; no strong vibration, strong magnetic field, strong radiation MACHINE TOOL ACCEPTANCE CRITERIA AND PROCEDURES 1. Precision of machining center: check and accept according to relevant national standards GB/T18400-2010 or Q/XZ03-2015 (for checking geometric accuracy, working accuracy, standard cutting test pieces, etc.).
2. Check and accept according to the relevant technical agreement, factory documents and configuration list signed by both parties.
3. For the machine tool with special configuration, the acceptance is divided into two parts: pre-acceptance and final acceptance:
Pre-acceptance: In accordance with the relevant content of the technical agreement and the manufacturer's factory inspection documents, the manufacturer and the user will jointly conduct an acceptance check at the manufacturer's factory, and both parties will sign and approve the acceptance, and the equipment is ready for delivery; for those that the user cannot come to the manufacturer for acceptance , can be regarded as approved pre-acceptance;
Final acceptance: at the site of use by the user, after installation and commissioning by the manufacturer's personnel to the user; the user provides the necessary general tools for installation and commissioning, and the main content of acceptance is to check the goods according to the factory documents, packing list, and accuracy test report , geometric accuracy testing, machine tool run-in verification, etc., and sign the final acceptance report after passing the test. FACTORY
3.FACTORY WORKSHOP & CUSTOMER FACTOR

CUSTOMER FACTORY
CUSTOMER FACTORY
