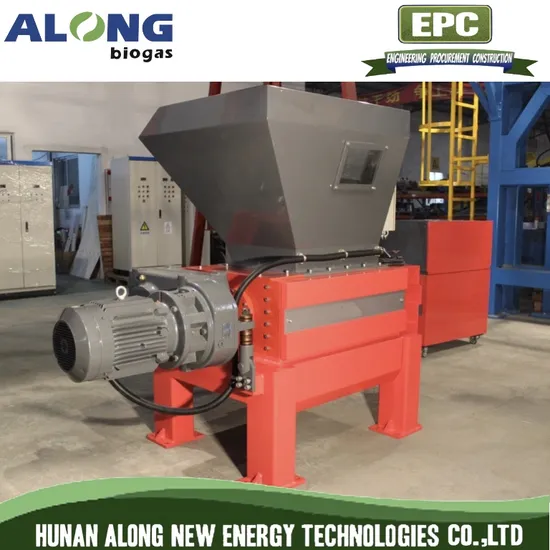

Vegetable Dinning Waste Shredder Medical/Security Destruction Waste Shredder Pulverizer Grinder

Product Description

We can provide ETS series of high-quality double-shaft shredder, produced by a wholly-owned subsidiaries in China of a French brand with 30 years history.
Structural characteristics: Feeding hopper. Special design of the feed hopper could prevent material splash when working. Equipped with large feed port, convenient for forklift or conveyor to feed. Specially designed hopper shape to meet the special needs and to ensure continuous feeding, simple operation, without any manual operation. Rotor. The strong durable rotor surface is concave designed according to different types of feedstock. Two-side replaceable rotary knives are installed on a special seat. Rotor bearing. The solid bearing block is mounted outside of machine, separate from the crushing chamber to prevent invasion of impurities, prolong machine life-time and reduce cost of maintenance. Screen. The screen for sieving is mounted under rotor, its aperture is designed in accordance with the solid size after shredded as required(10~40mm). The hinged sieve frame facilitates the disassembly, the replacement is easy to operate, or the screen is not required. Driving device. The motor and gearbox are linked by helical gears, driven by a large gearbox mounted on the top of spindle.
Configurations of the main parts of machine: Electrical components: Siemens or equivalent;Indicator: Siemens or equivalent;Power: Adopt print line numbers, only provide primary size power access port, with standard alignment;Operation and maintenance is a chain relationship, shredder can't work when repairing or can't repair when working;Electric control box: Dust-proof and water-proof;Brand: German Rittal or equivalent;Indicators: DC24V, LED type;Control buttons: DC24V voltage;Motor brand: Germany WEG or equivalent;Reducer brand: Boneng or Guomao;
Parameter Tables for Selection:

Model	Chamber (mm)	Rotor QTY (pcs)	Rotor Speed(rpm)	Screen Size (Ø mm)	Motor (KW)
ETS400	400×400	2	25 - 35	10 - 40	15 - 22
ETS600	600×600	2	21 - 31	10 - 40	30 - 37
ETS800	600×800	2	32 - 43	10 - 40	45 - 55
ETS1000	600×1000	2	21 - 25	10 - 40	55 - 75
ETS1500	600×1500	2	17 - 28	10 - 40	75 - 110

Warranty is 1 year;
